Chemical Bowie Dick
Steam Chemical Integrator — M52802

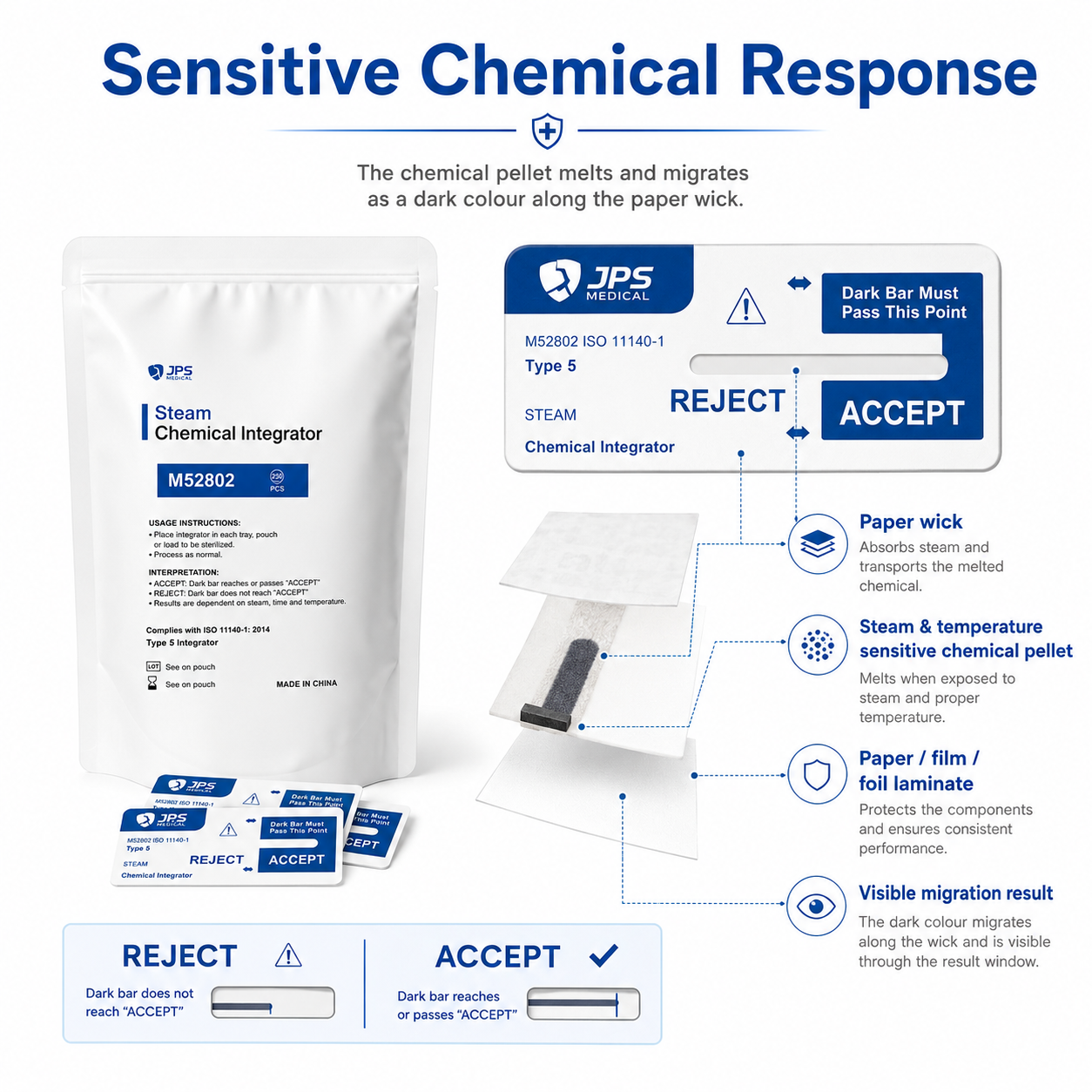

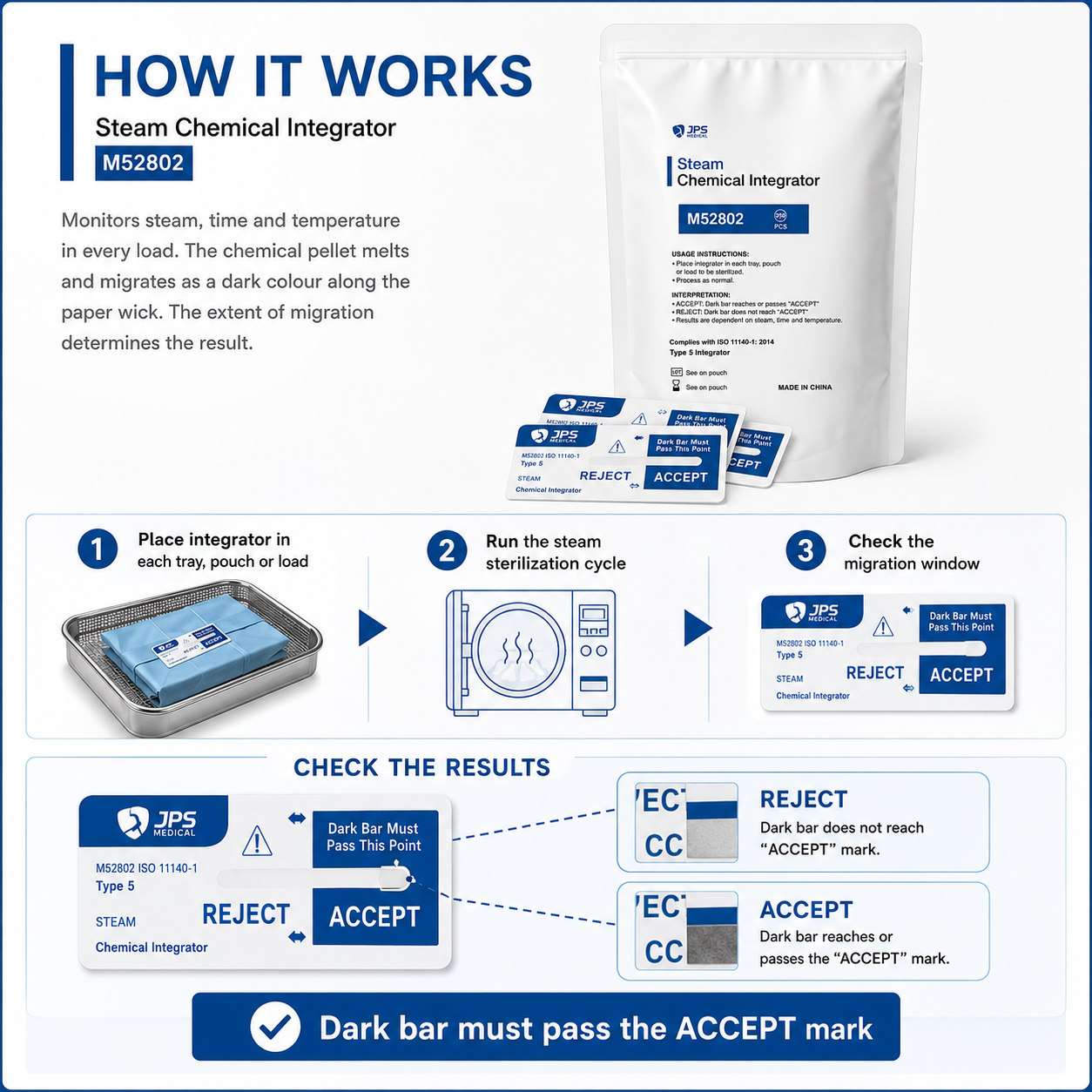

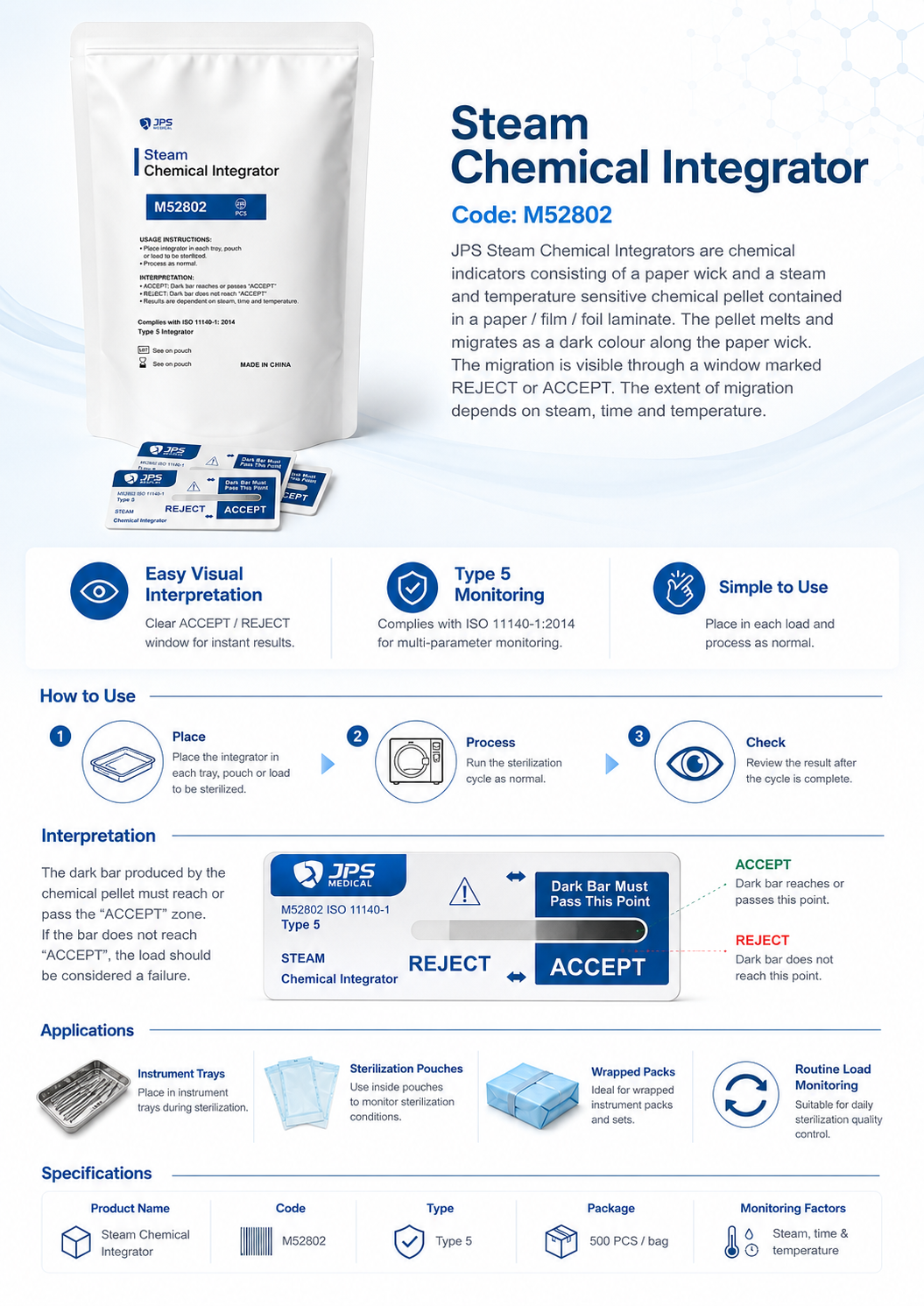

The M52802 steam chemical integrator is a moving-front chemical indicator built from a paper wick and a steam/temperature-sensitive chemical pellet sealed in a paper/film/foil laminate. During a cycle the pellet melts and migrates as a dark front along the wick; the result reads through a window marked REJECT or ACCEPT. The extent of migration depends on steam, time, and temperature, giving an integrated pass/fail result.
MOQNegotiable
Lead Time15-30 days
CertificationCE / ISO 13485 / FDA
OEM / ODMAvailable
PaymentT/T, L/C
Loading PortShanghai, China
Factory Direct
Manufacturer pricing
OEM / ODM
Custom branding
Certified
CE / ISO / FDA
Global Logistics
100+ countries
After-Sales
Parts & support
Key Highlights
- Moving-front integrator — Pellet migrates along a wick.
- REJECT / ACCEPT window — Clear pass/fail reading.
- Integrates variables — Steam, time, and temperature.
- Sealed laminate — Paper/film/foil construction.
Standard Specifications
| Item | Specification |
|---|---|
| Code | M52802 |
| Type | Steam chemical integrator |
| Construction | Paper wick + chemical pellet in paper/film/foil laminate |
| Readout | REJECT / ACCEPT window |
| Variables | Steam, time, temperature |
Technical Parameters
| Parameter | Specification |
|---|---|
| Type | Steam chemical integrator |
| Readout | Migration window (reject/accept) |
| Process | Steam |
Model: M52802 · Steam chemical integrator.
Product Details
Get a Quote for M52802_Steam-Chemical-Integrator
Share your target quantity and destination — our B2B team replies within one business day with pricing, lead time and OEM options.
