Sterilization Packaging
Gusseted Sterilization Reel — M51705

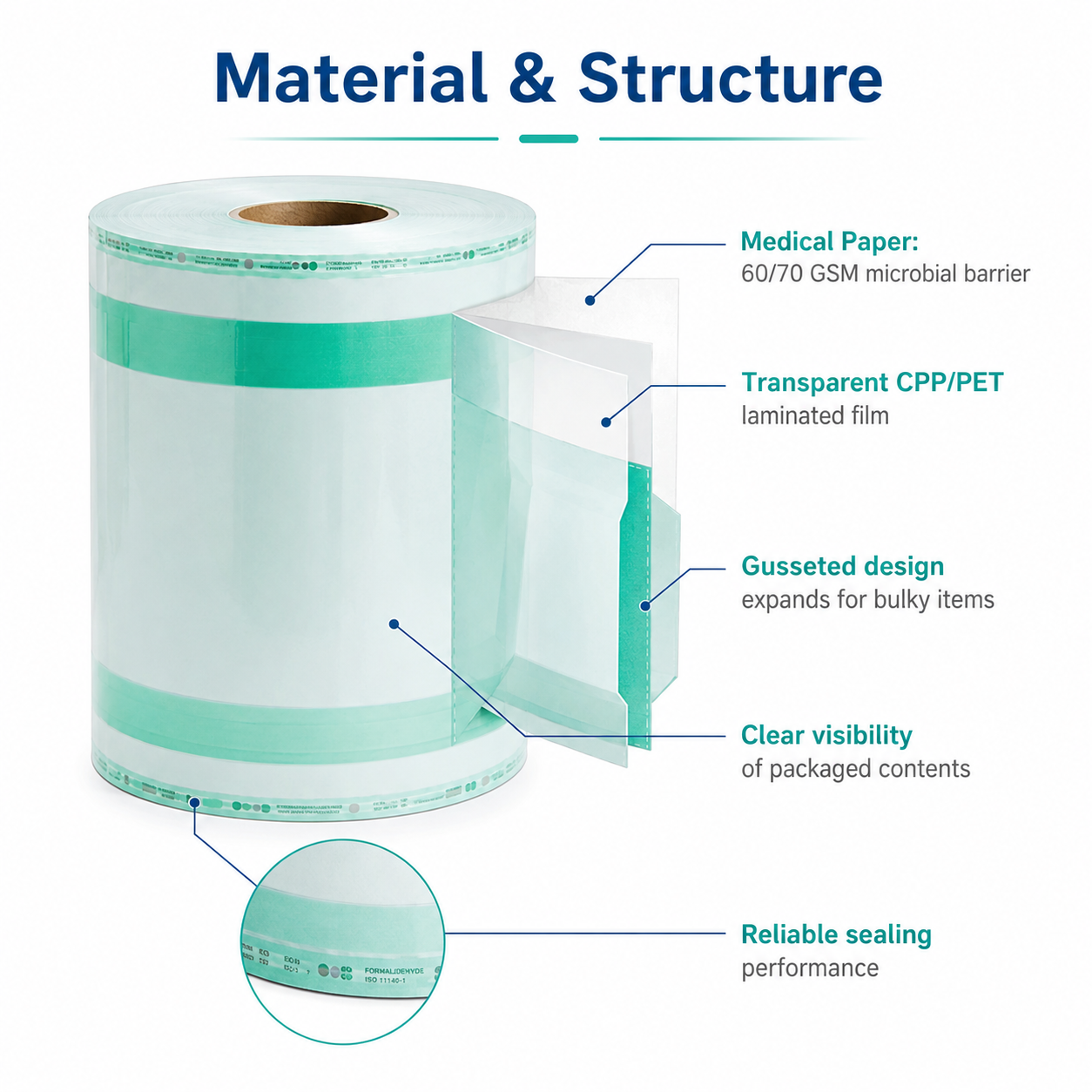

The M51705 gusseted sterilization reel features an expanding side gusset to package larger, bulkier medical products and instrument sets for hospital CSSD. Made from 60/70 gsm microbial-barrier medical paper laminated to CPP/PET film, it provides a strong sterile barrier with lead-free process indicators for steam, ETO, and formaldehyde. Available in widths from 7.5 cm to 60 cm in 100 m lengths.
MOQNegotiable
Lead Time15-30 days
CertificationCE / ISO 13485 / FDA
OEM / ODMAvailable
PaymentT/T, L/C
Loading PortShanghai, China
Factory Direct
Manufacturer pricing
OEM / ODM
Custom branding
Certified
CE / ISO / FDA
Global Logistics
100+ countries
After-Sales
Parts & support
Key Highlights
- Expanding gusset — Holds larger, voluminous instruments and sets.
- CSSD-ready — Widths 7.5–60 cm for hospital sterile processing.
- Triple indicators — Steam, ETO, and formaldehyde; lead-free.
- Strong barrier — 60/70 gsm medical paper + CPP/PET film.
Standard Specifications
| Item | Specification |
|---|---|
| Code | M51705 |
| Type | Gusseted (expanding) reel |

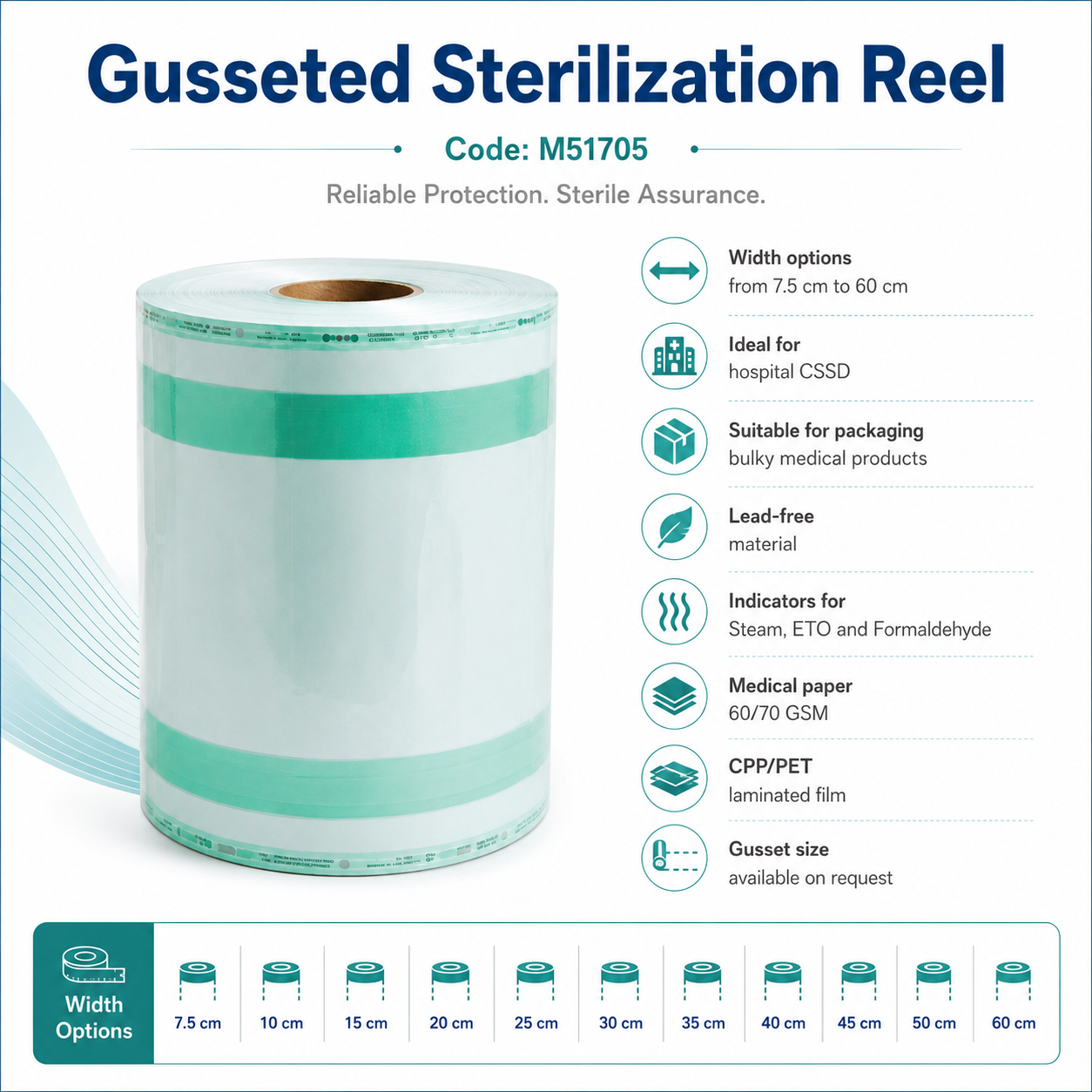

| Width | 7.5 cm – 60 cm |

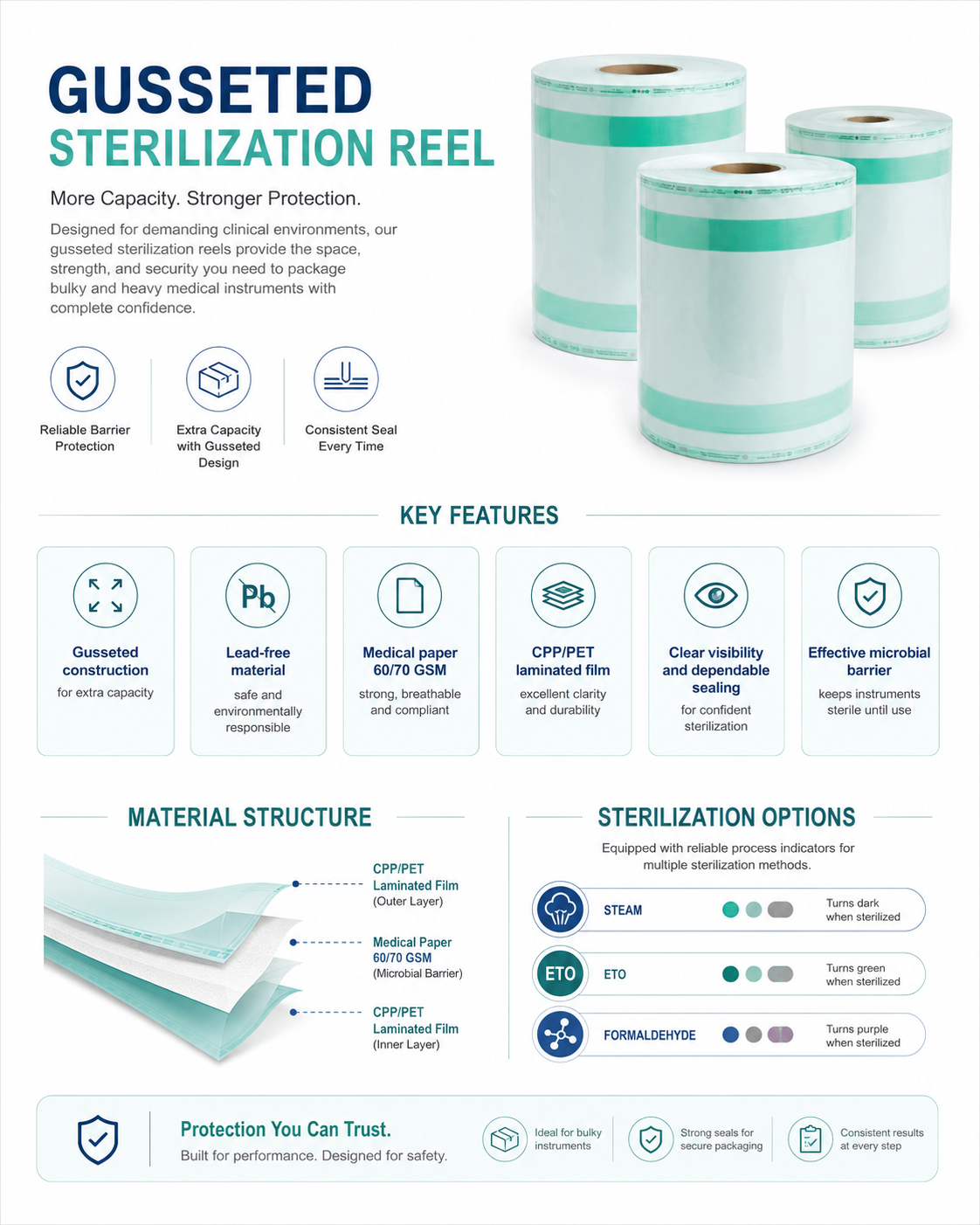

| Paper | 60 / 70 gsm microbial-barrier medical paper |
| Film | Laminated CPP/PET |
| Indicators | Steam, ETO, formaldehyde (lead-free) |

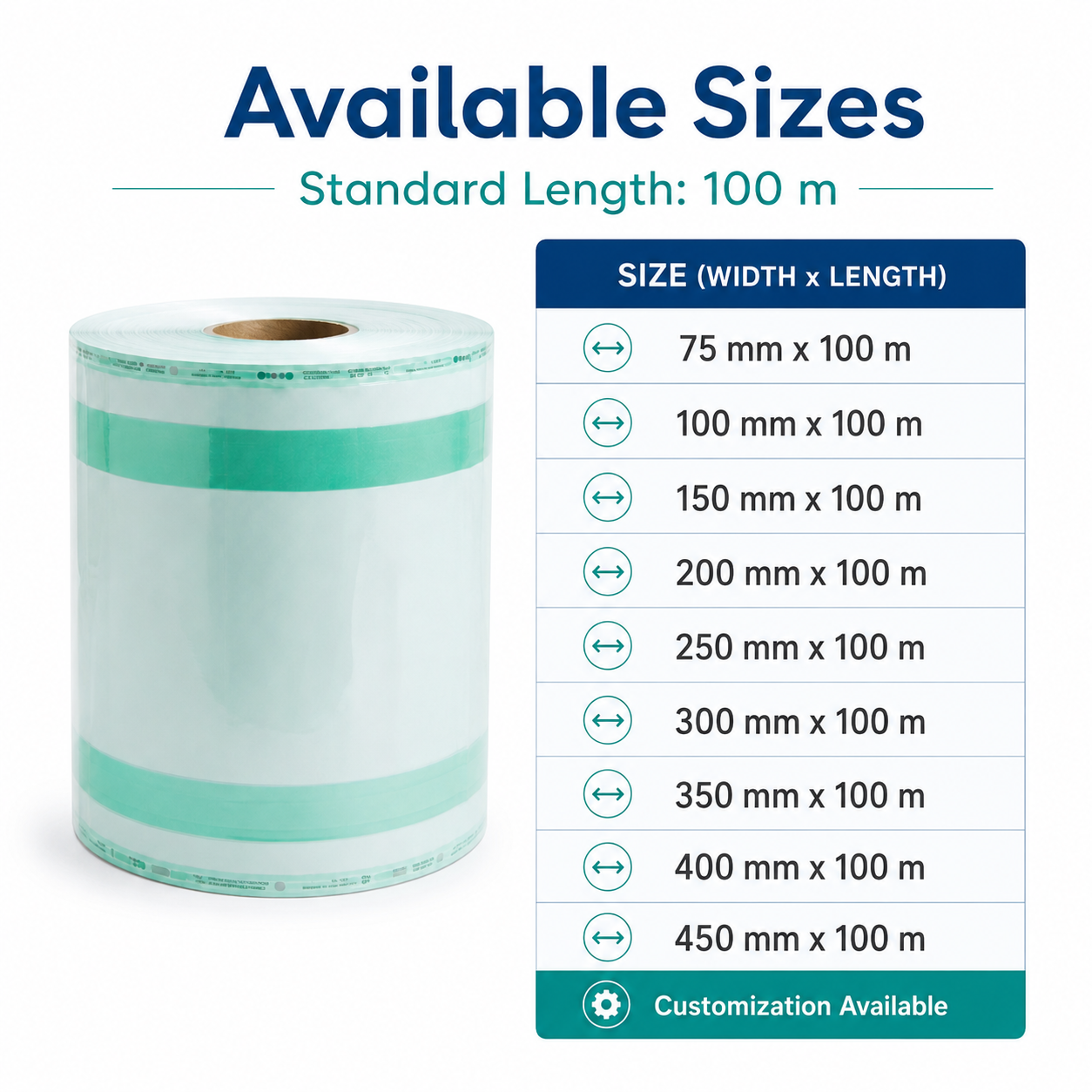

| Sizes | 75, 100, 150, 200, 250, 300, 350, 400, 450 mm × 100 m (custom available) |
| Gusset | Size on inquiry |
Technical Parameters
| Parameter | Specification |
|---|---|
| Type | Gusseted sterilization reel |
| Width | 7.5–60 cm |
| Paper | 60–70 gsm |
| Indicators | Steam / ETO / formaldehyde |
Model: M51705 · Gusseted sterilization reel.
Product Details
Get a Quote for M51705_Gusseted-Sterilization-Reel
Share your target quantity and destination — our B2B team replies within one business day with pricing, lead time and OEM options.
