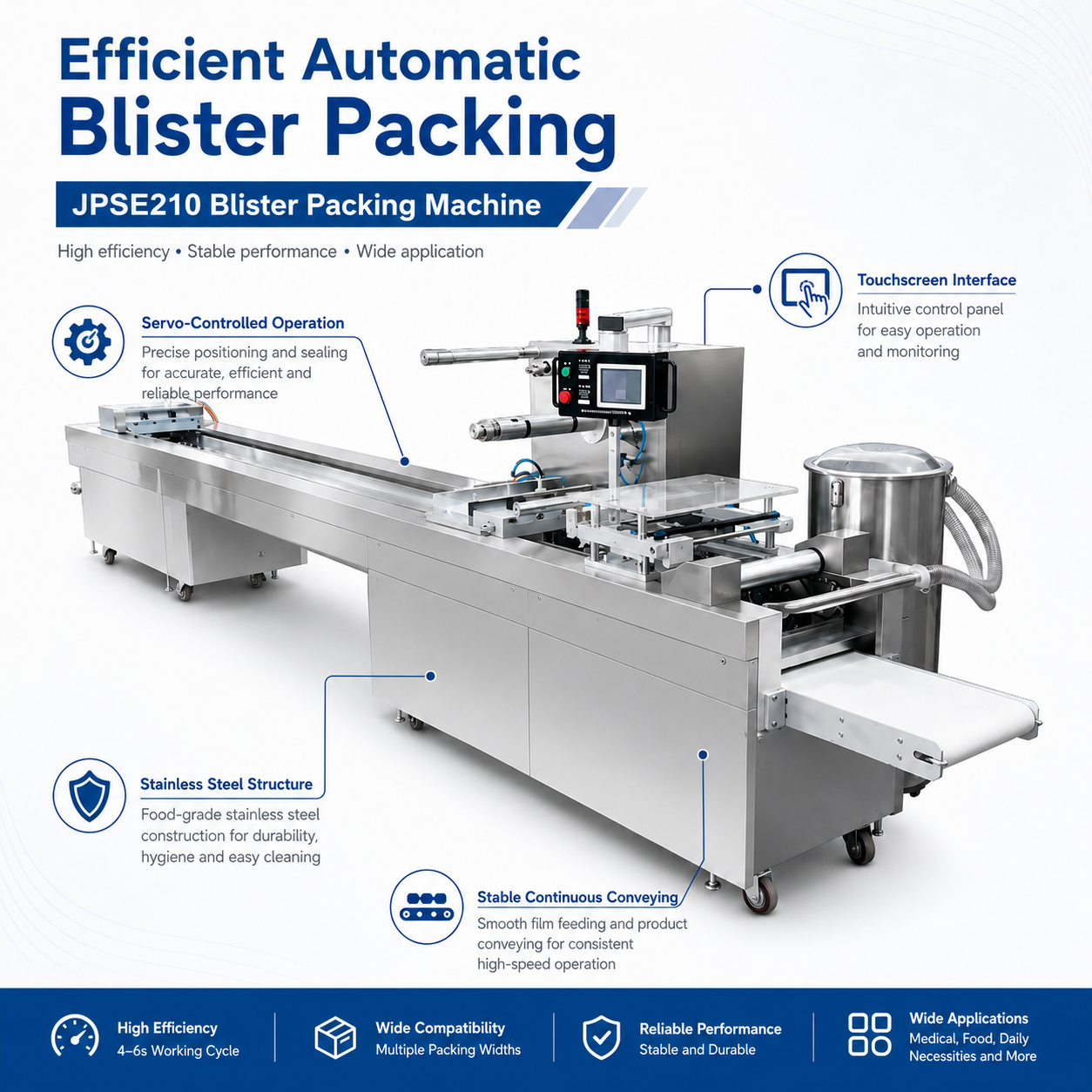

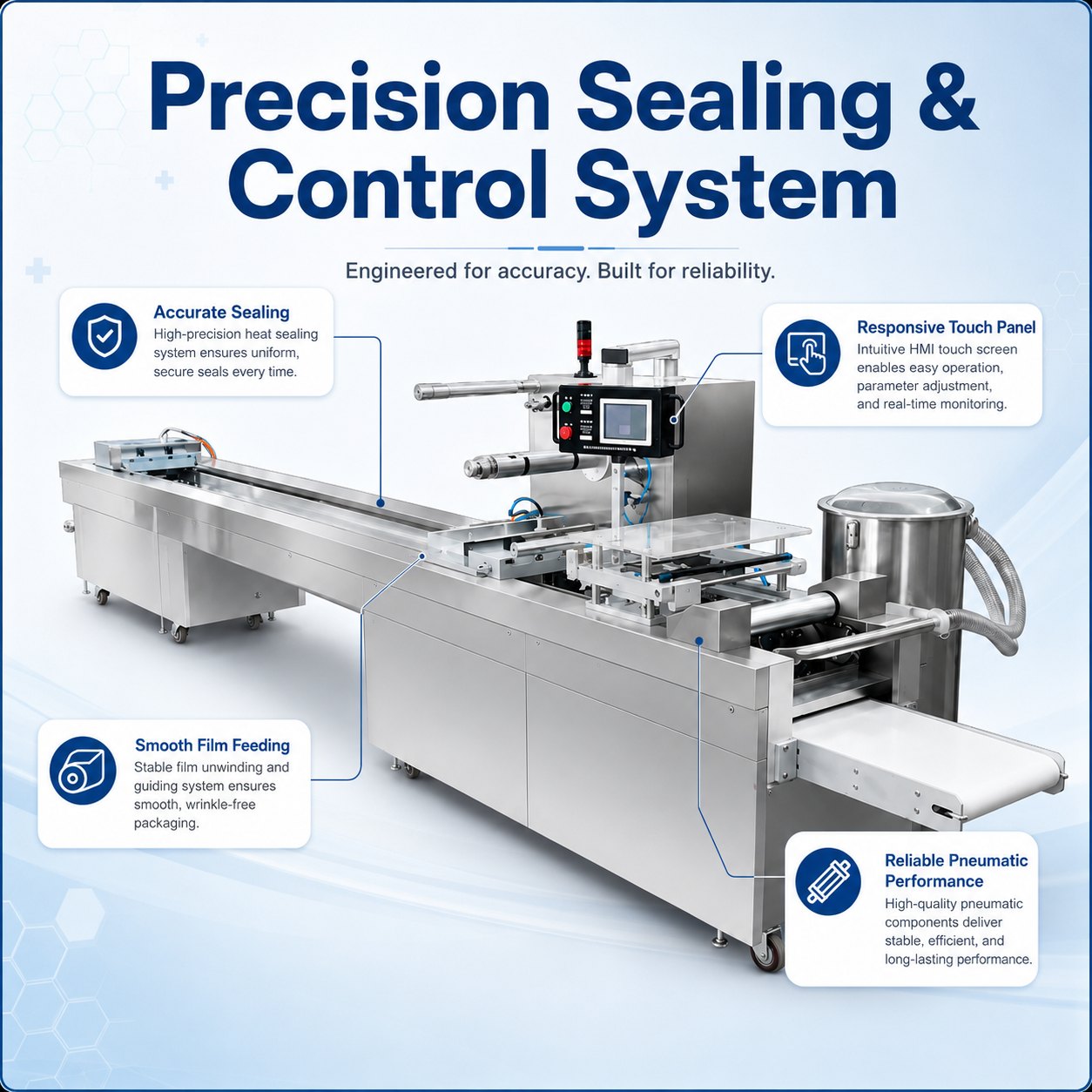

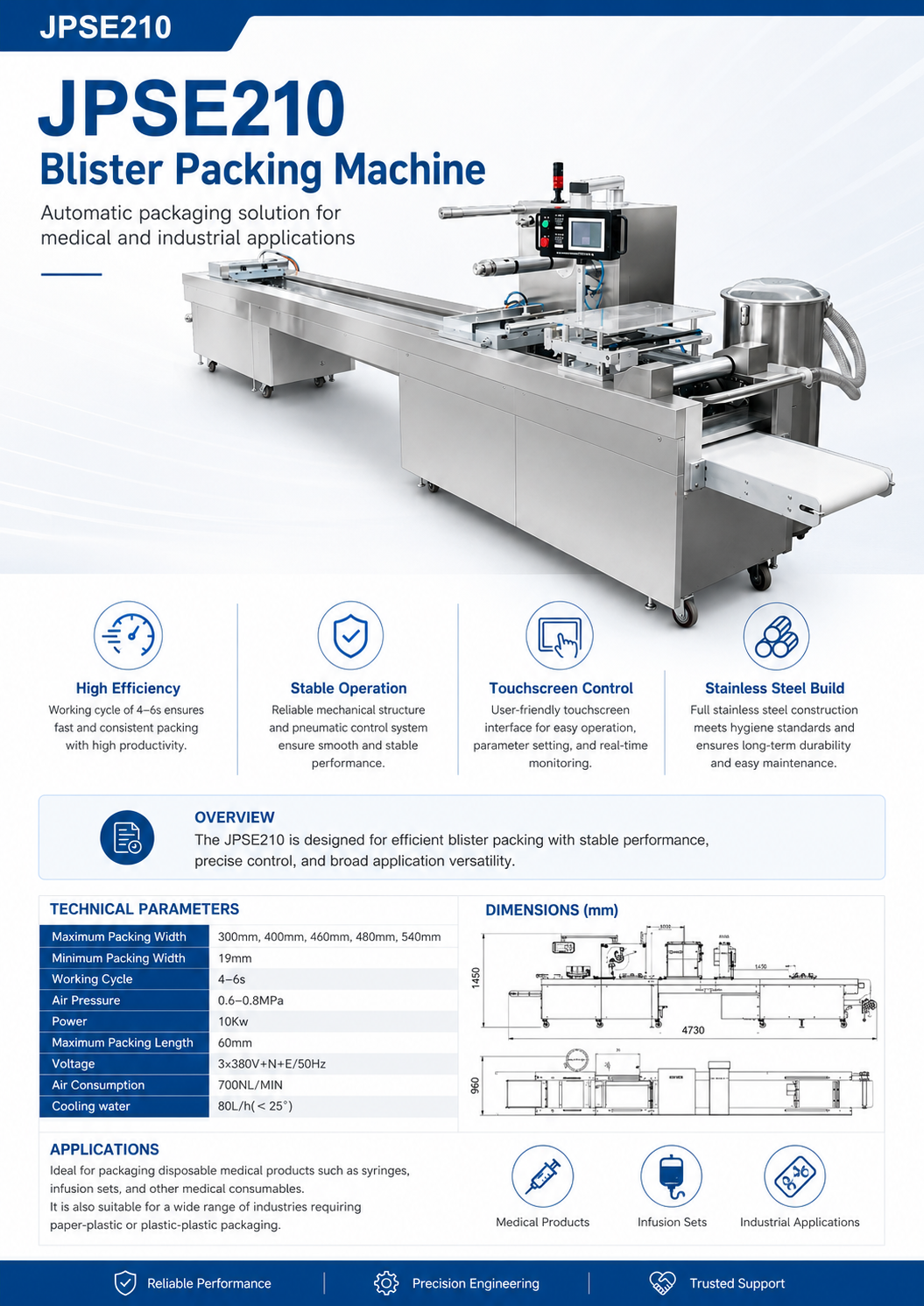

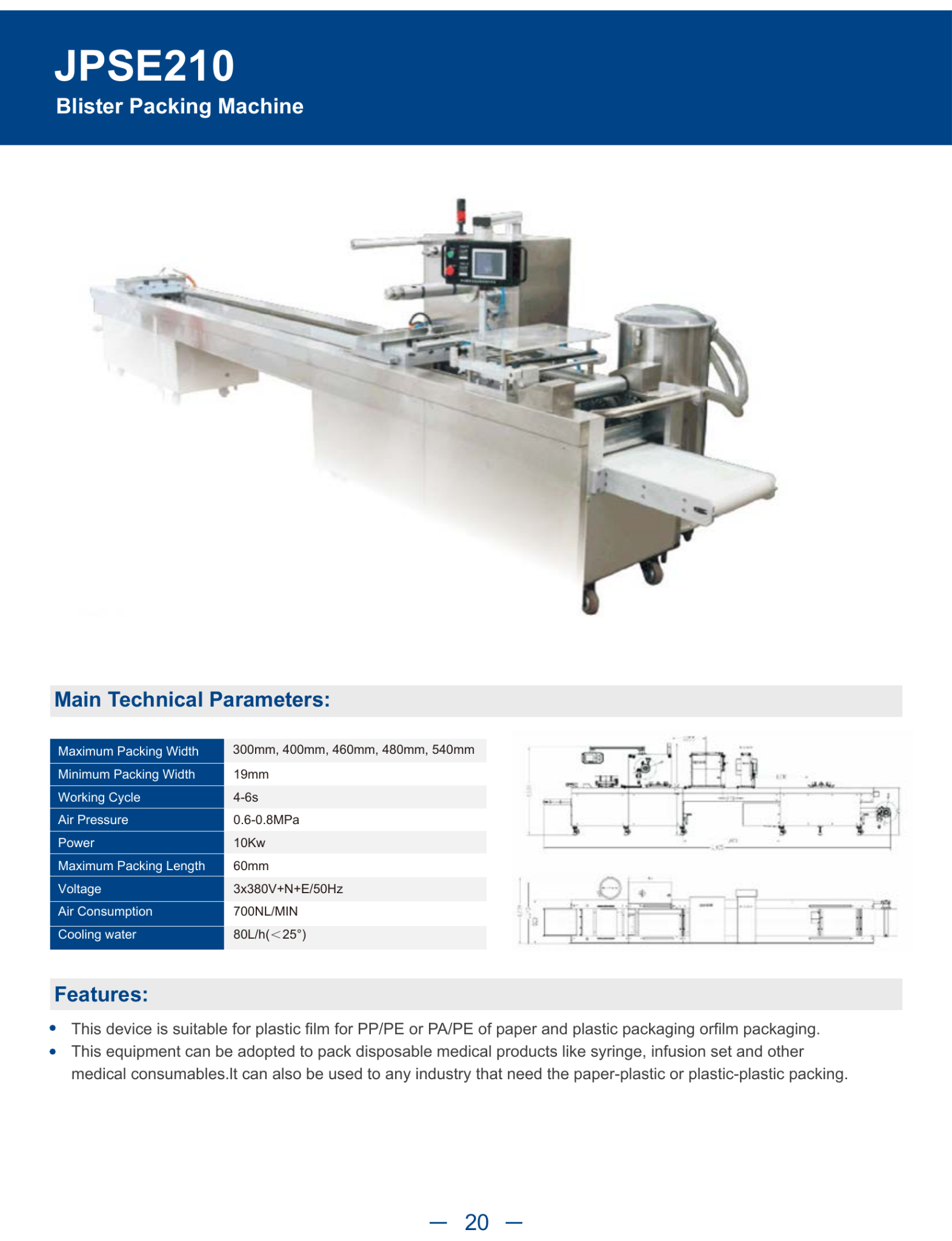

Blister Packing Machine — JPSE210
The JPSE210 blister packing machine packages disposable medical products such as syringes, infusion sets, and other consumables in paper-plastic or plastic-plastic blister packs. It runs PP/PE or PA/PE plastic film at a 4–6 second cycle and accommodates packing widths up to 540 mm, making it suitable for a wide range of medical and general industrial packaging applications.
Factory Direct
Manufacturer pricing
OEM / ODM
Custom branding
Certified
CE / ISO / FDA
Global Logistics
100+ countries
After-Sales
Parts & support
Why Choose JPS
- 20+ Years Experience
- OEM & ODM
- ISO13485
- Export to 80+ Countries
- Tender Project Experience
- Strict QC

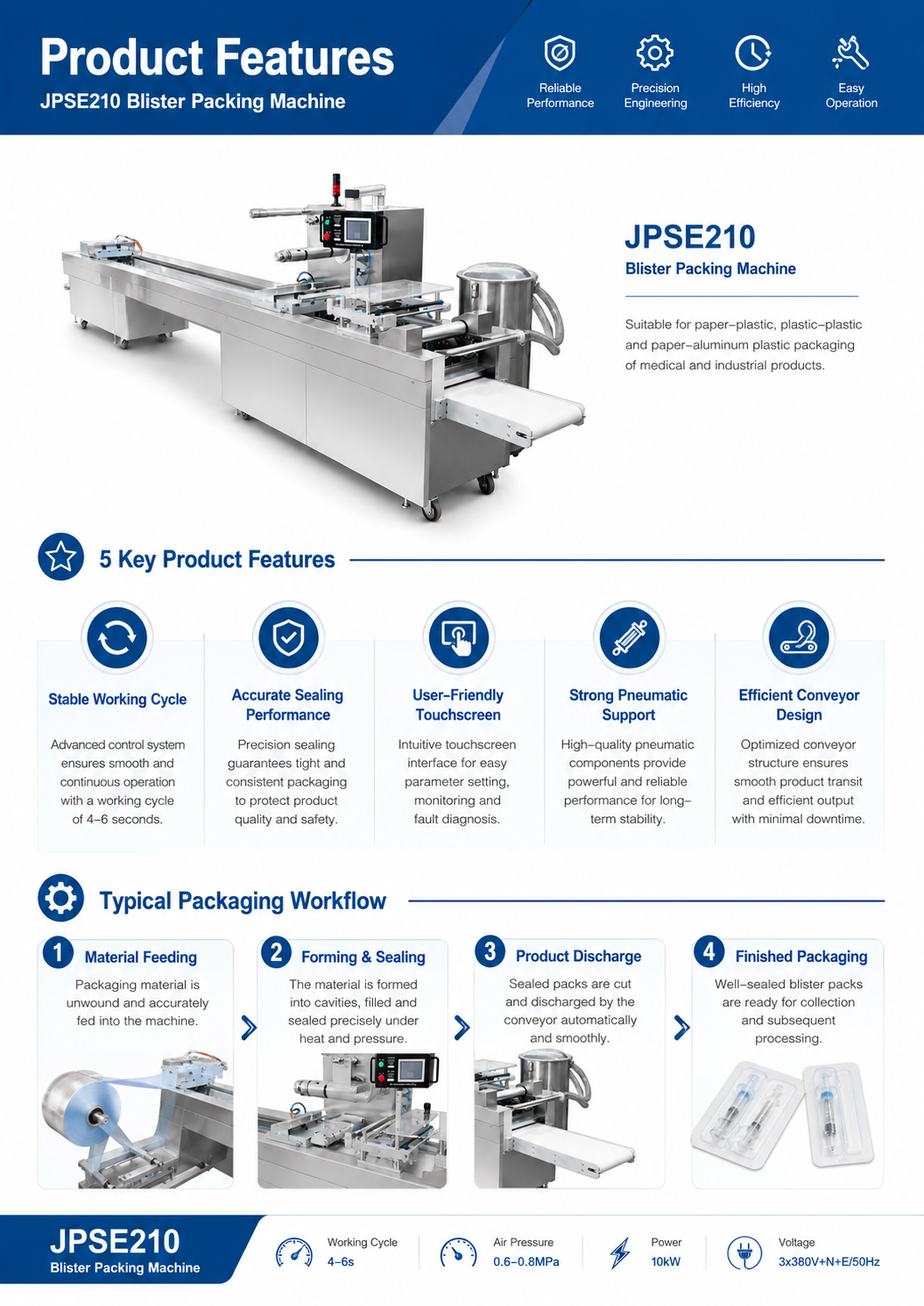

Key Highlights

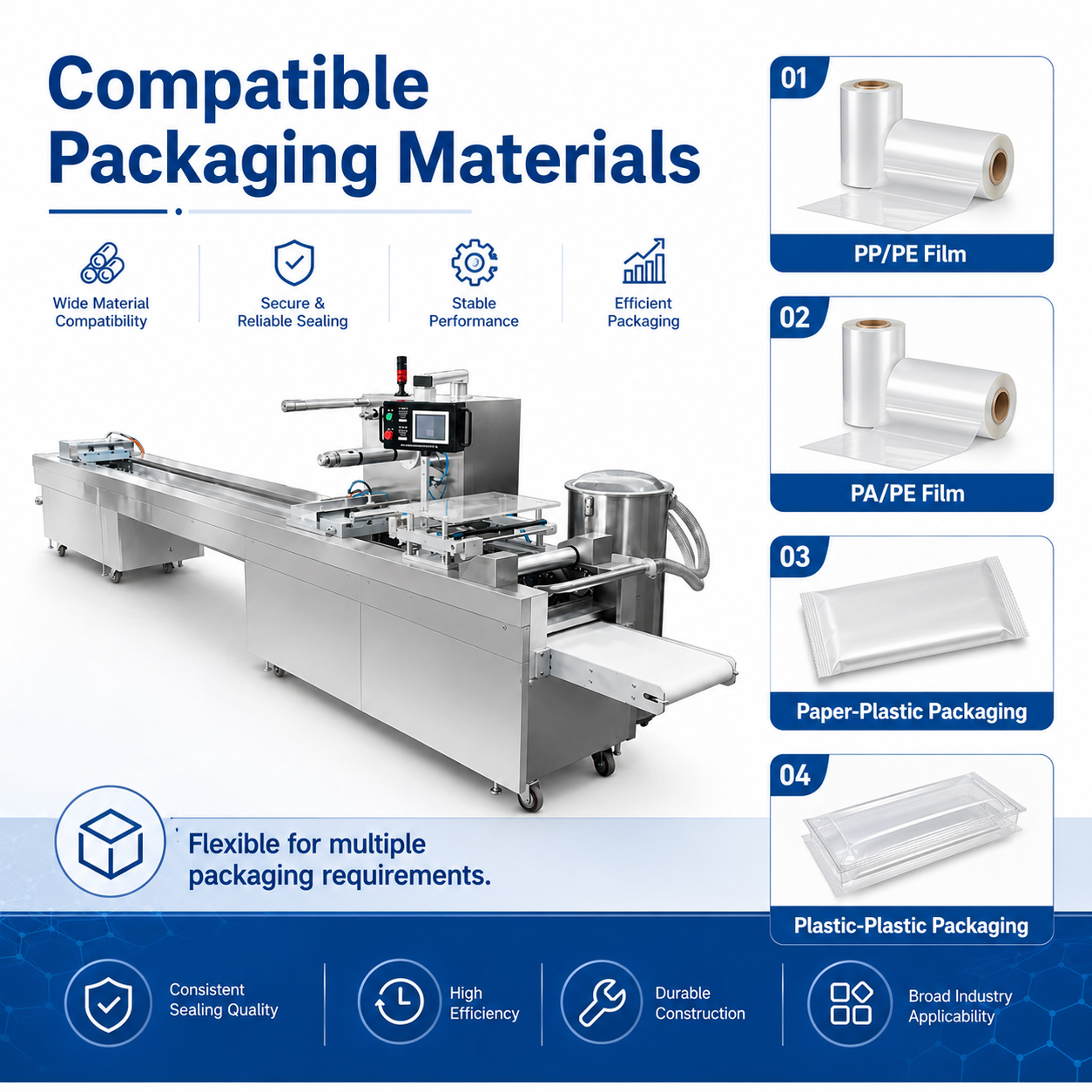

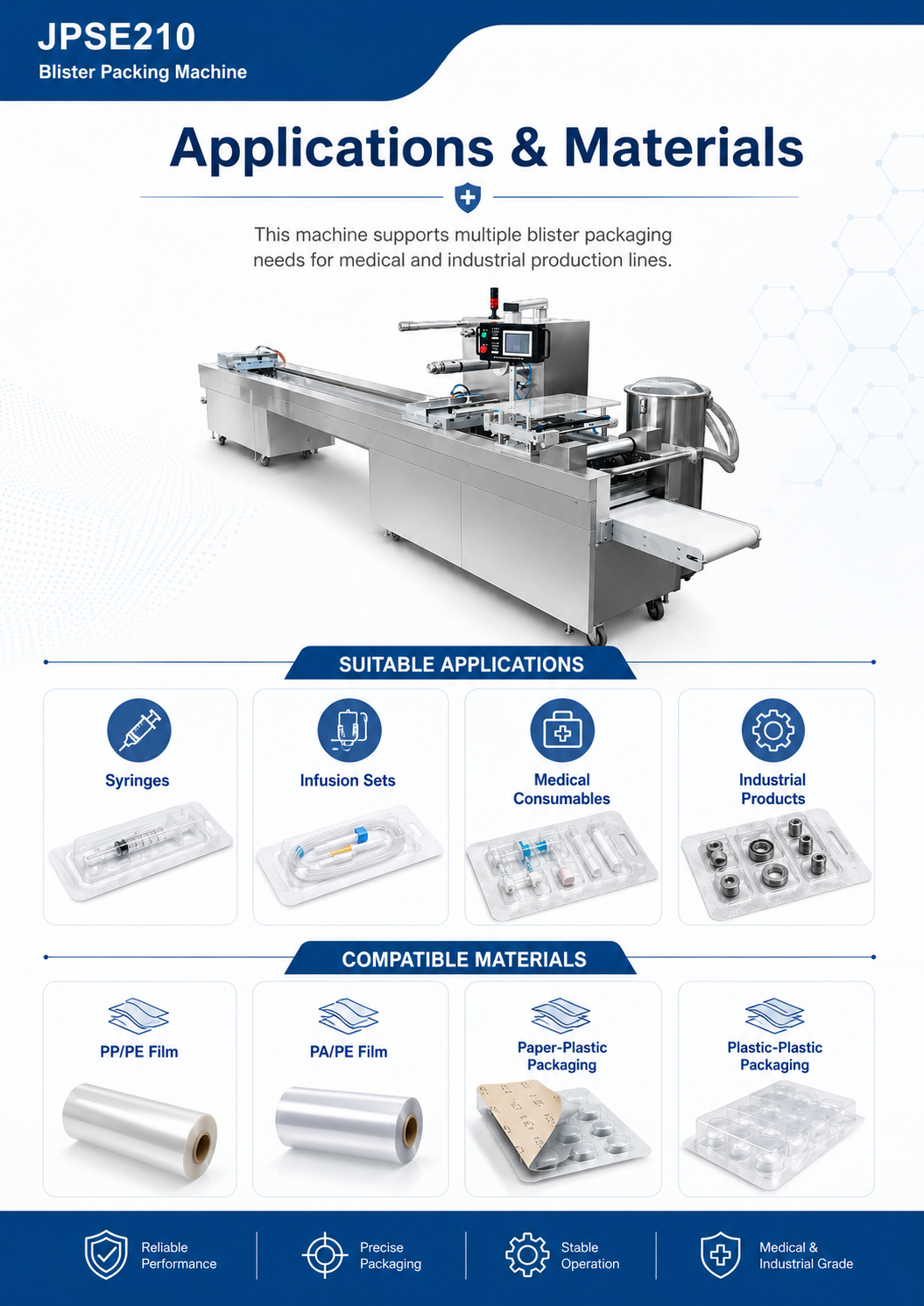

- Versatile film — PP/PE or PA/PE; paper-plastic or plastic-plastic.

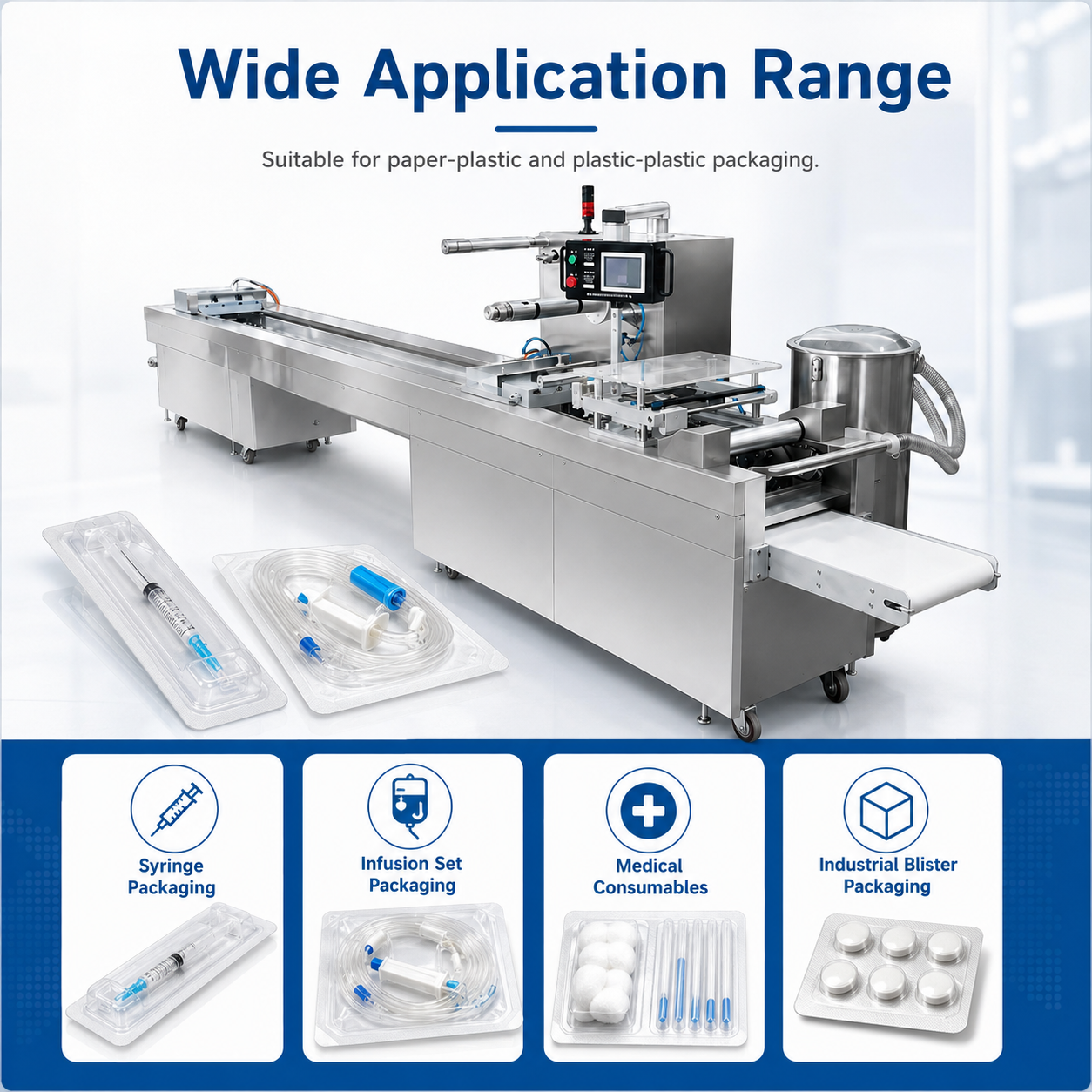

- Medical-ready — Packs syringes, infusion sets, and consumables.
- Fast cycle — 4–6 seconds per pack.
- Wide format — Packing width up to 540 mm.

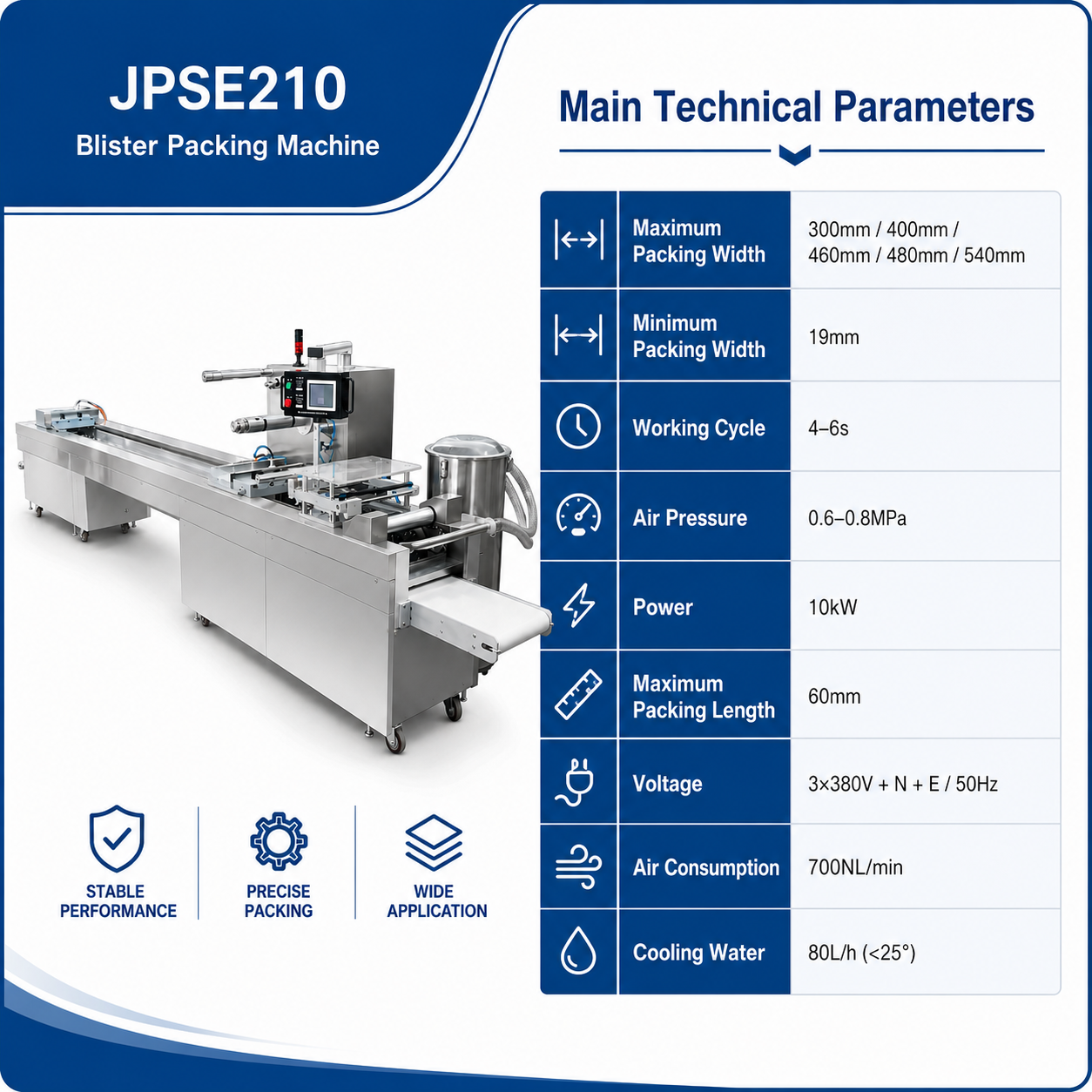

Standard Specifications
| Item | Specification |
|---|---|
| Code | JPSE210 |
| Maximum packing width | 300 / 400 / 460 / 480 / 540 mm |
| Minimum packing width | 19 mm |
| Maximum packing length | 60 mm |
| Working cycle | 4–6 s |
| Air pressure | 0.6–0.8 MPa |
| Power | 10 kW |
| Voltage | 3×380 V + N + E / 50 Hz |
| Air consumption | 700 NL/min |
| Cooling water | 80 L/h (<25 °C) |

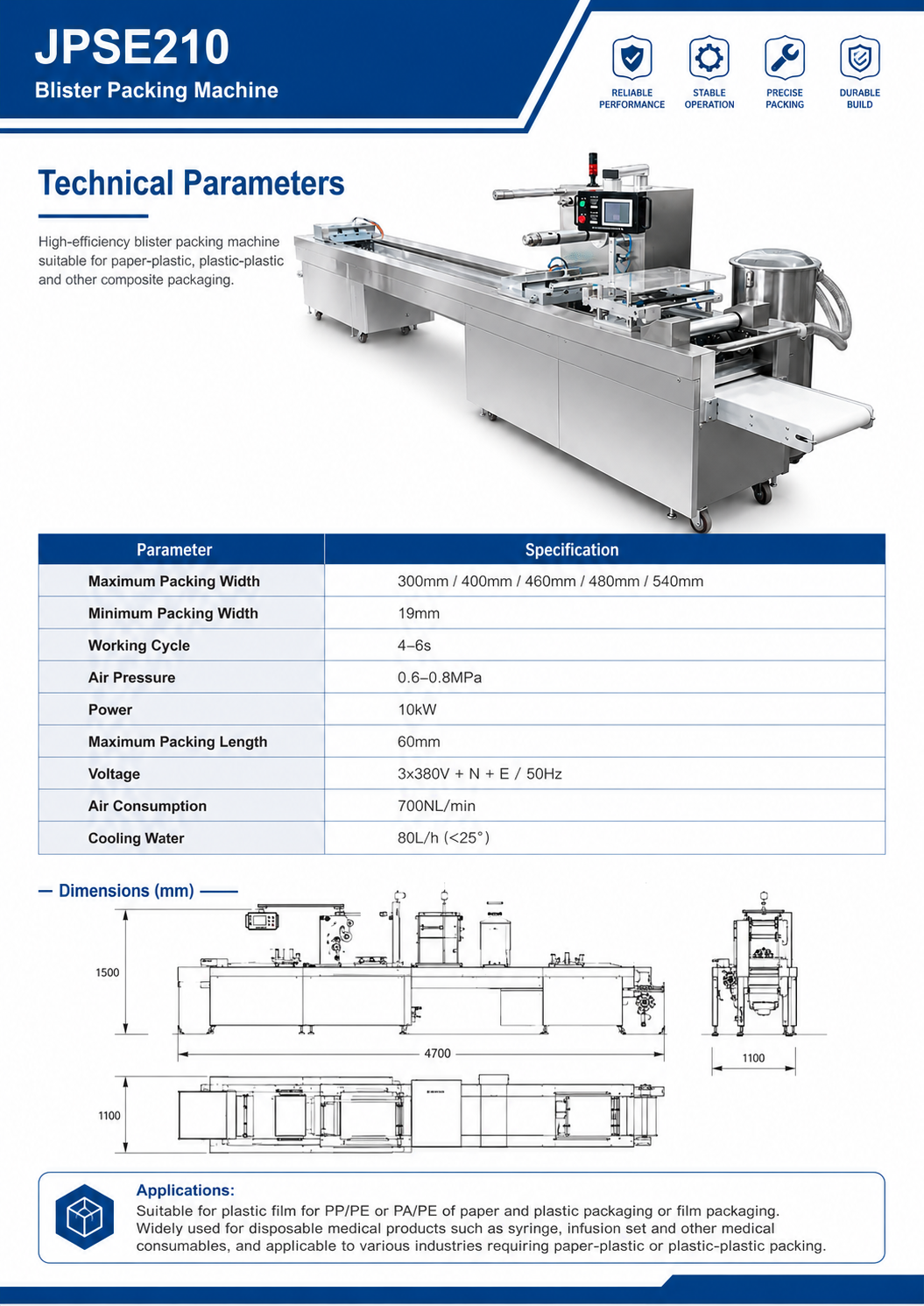

Technical Parameters
| Parameter | Specification |
|---|---|
| Type | Blister packing machine |
| Film | PP/PE, PA/PE |
| Cycle | 4–6 s |
| Power | 10 kW, 3×380 V/50 Hz |
Model: JPSE210 · Blister packing machine.
Product Details
Related Products & Popular Searches
As a China-based manufacturer and wholesale supplier, JPS Medical delivers blister packing machine to hospitals, clinics, laboratories and distributors worldwide. We support OEM and private-label blister packing machine, bulk and factory-direct orders, and export automatic packing machine with CE, ISO 13485 and FDA-registered quality. Common buyer searches for this product include:
Get a Quote for JPSE210_Blister-Packing-Machine
Share your target quantity and destination — our B2B team replies within one business day with pricing, lead time and OEM options.
