Blister Packing Machine

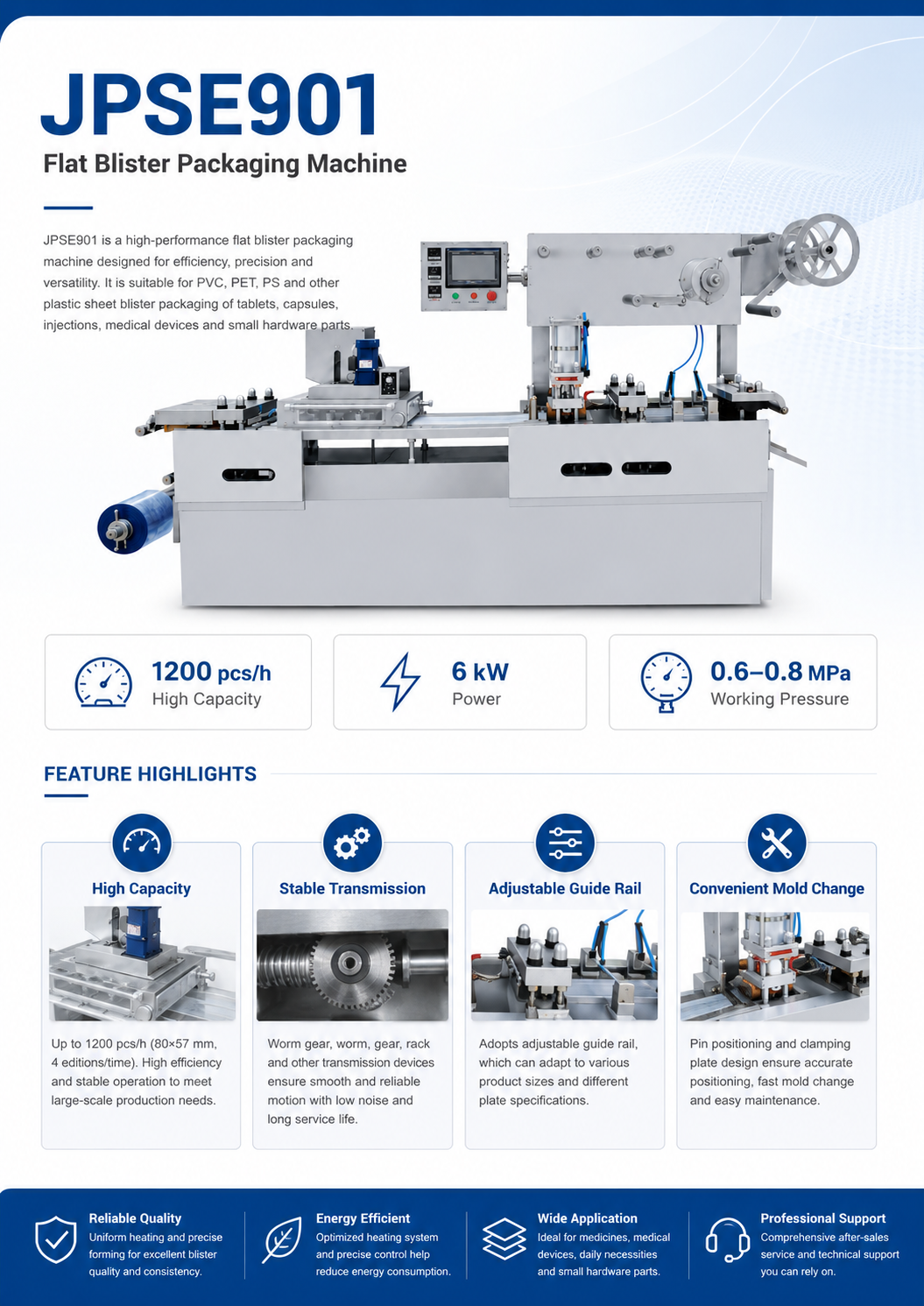

Flat Blister Packaging Machine — JPSE901

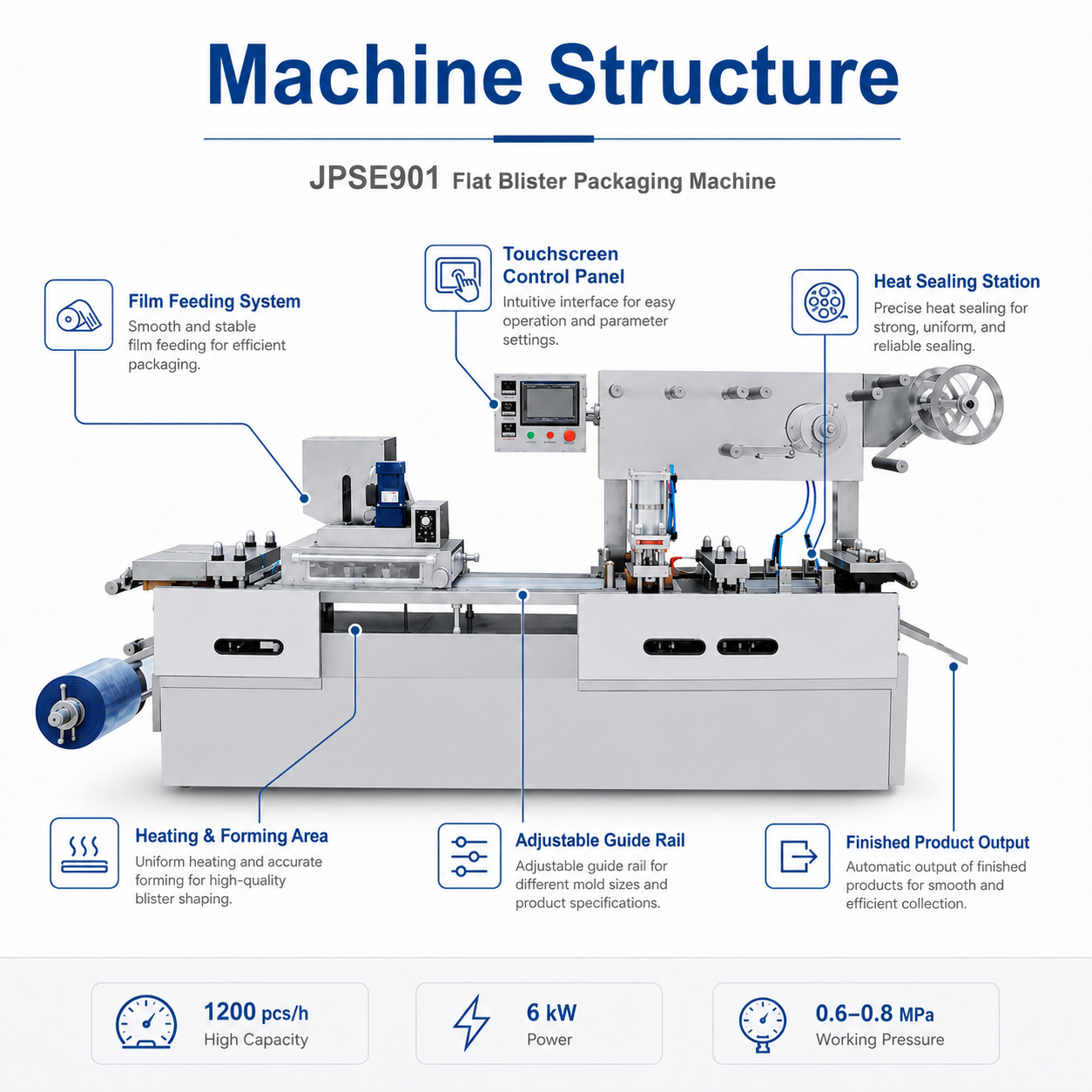

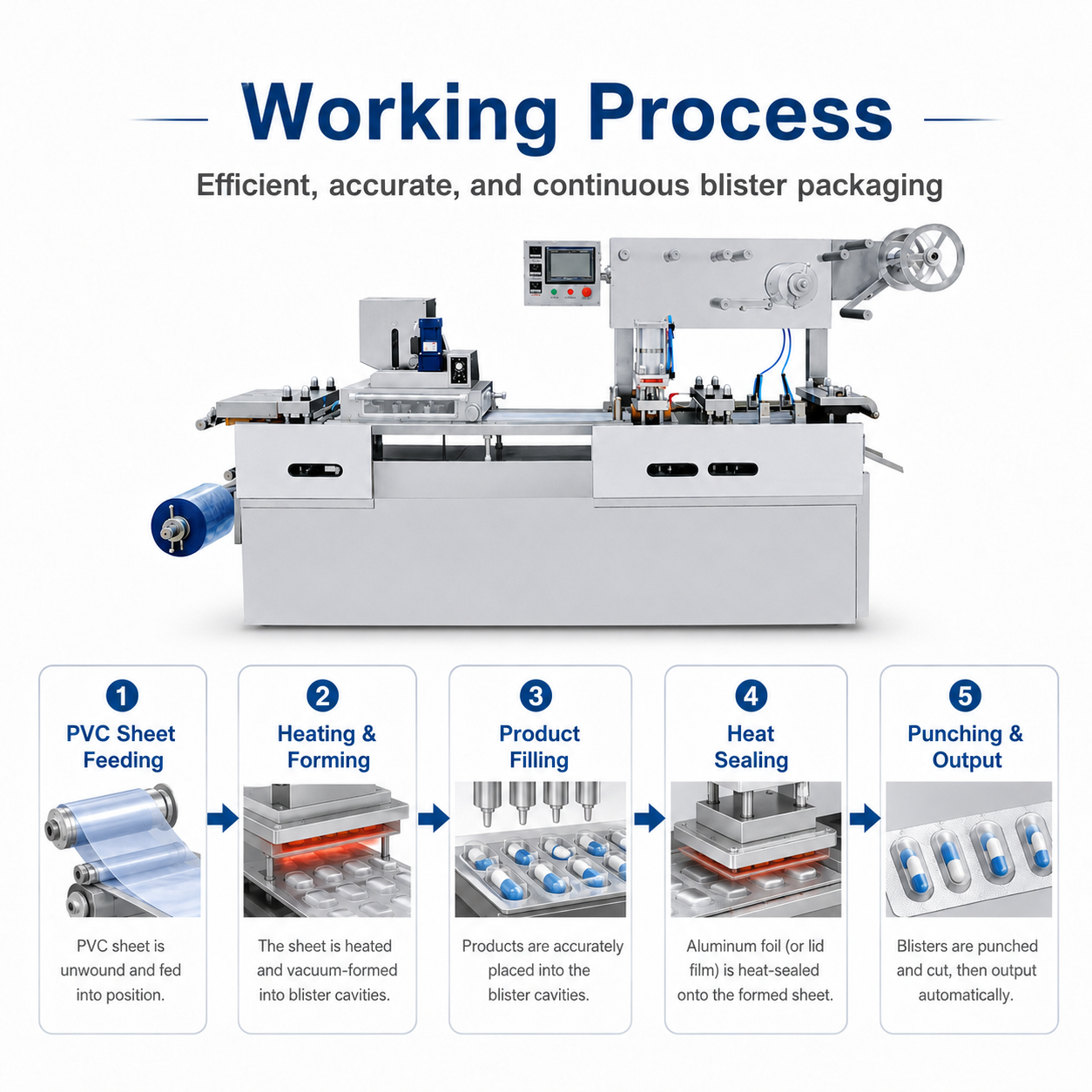

The JPSE901 flat blister packaging machine forms, fills, and heat-seals PVC blister packs for medical and pharmaceutical products. A worm-gear/rack transmission lets molds slide left and right on the frame guide rail to suit various plate sizes, and a hanging plate-forming heating box (upper plate ~110 °C, lower ~100 °C) gives uniform heating, crisp blister caps, and excellent molding quality while saving energy.
MOQNegotiable
Lead Time15-30 days
CertificationCE / ISO 13485 / FDA
OEM / ODMAvailable
PaymentT/T, L/C
Loading PortShanghai, China
Factory Direct
Manufacturer pricing
OEM / ODM
Custom branding
Certified
CE / ISO / FDA
Global Logistics
100+ countries
After-Sales
Parts & support

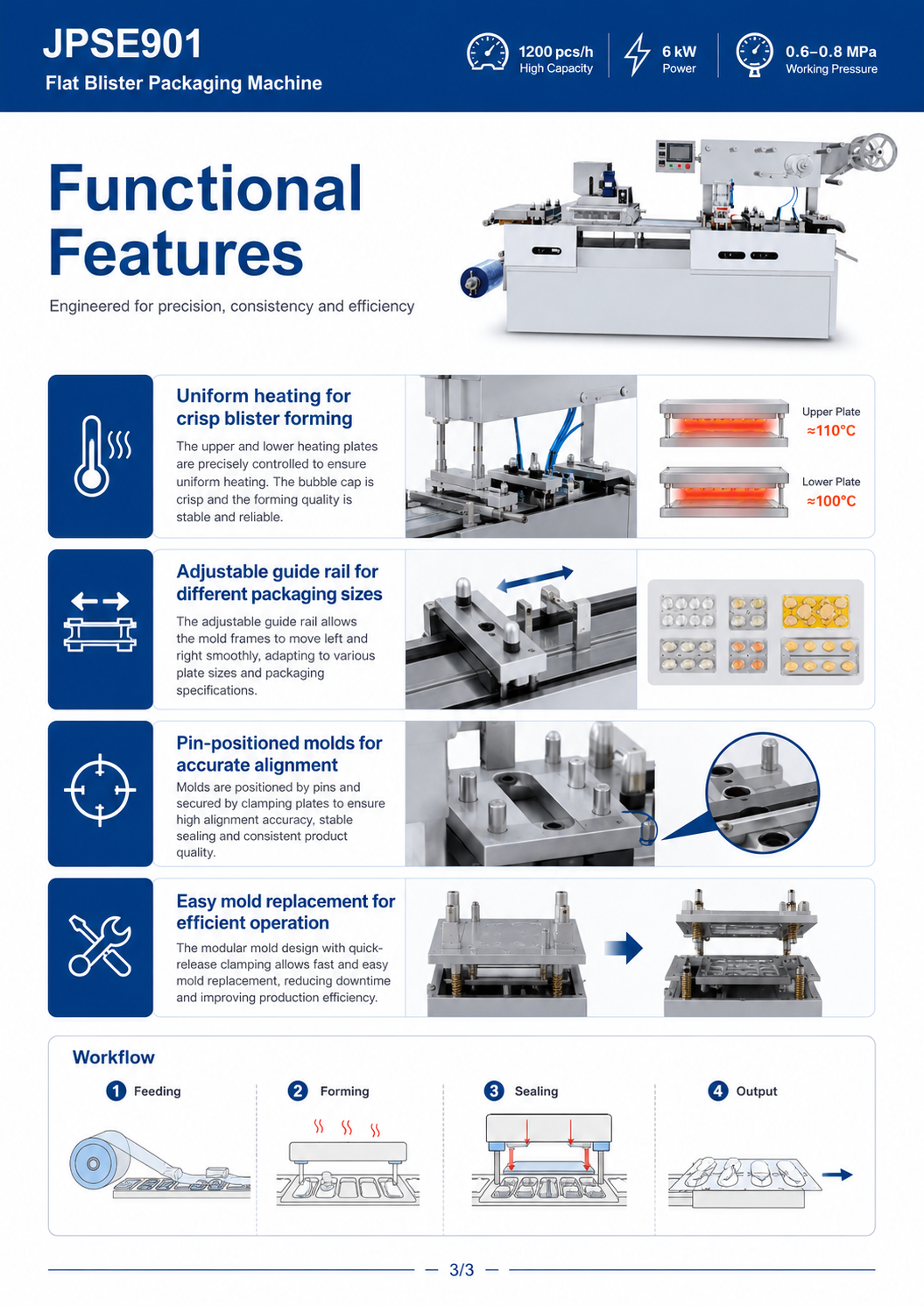

Key Highlights
- Flexible tooling — Molds slide on guide rail for various plate sizes.
- Uniform heating — Box-type heating for crisp, quality blisters.
- Adjustable table — Guide rail adapts to many specifications.
- Accurate mold change — Pin positioning and clamping plates.

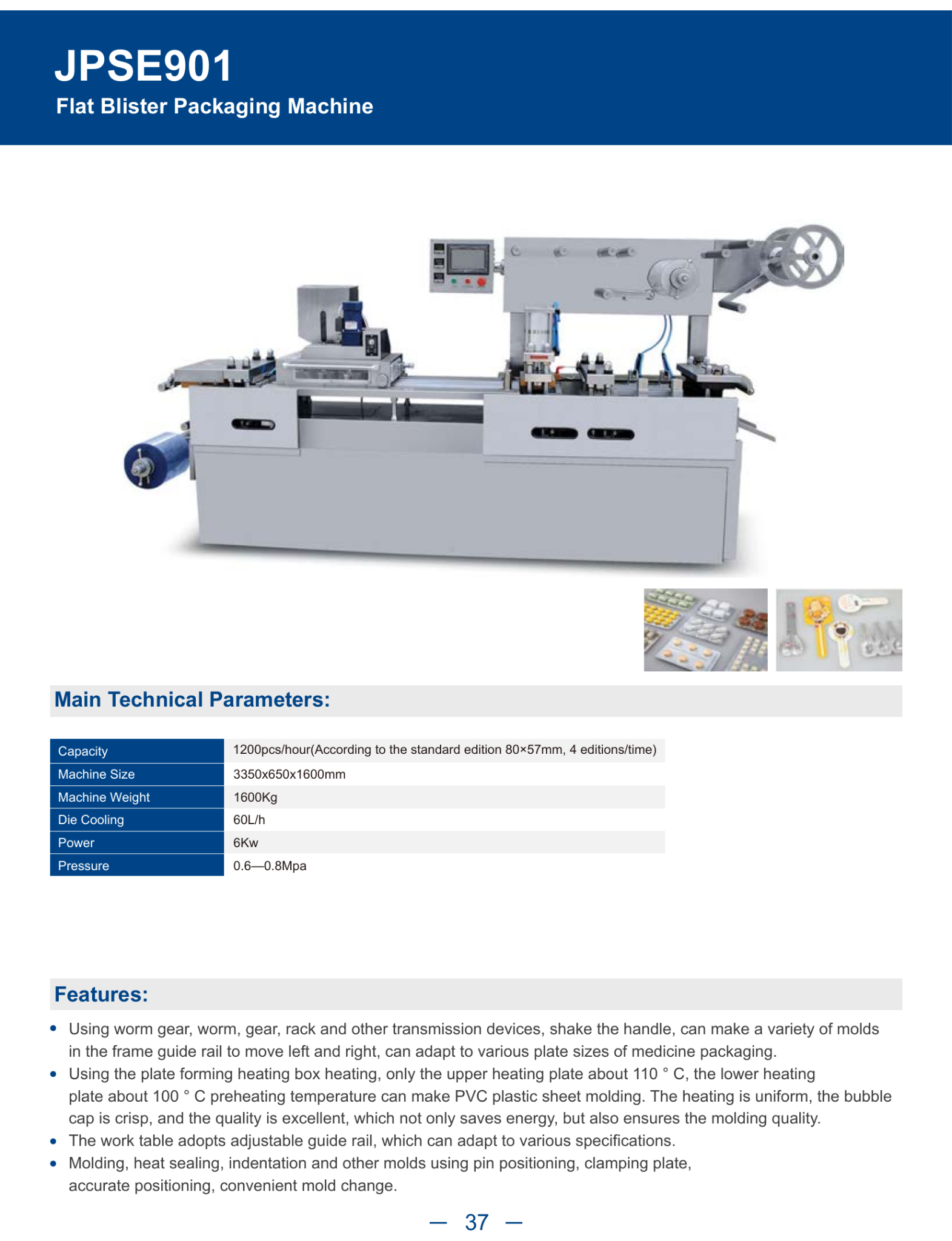

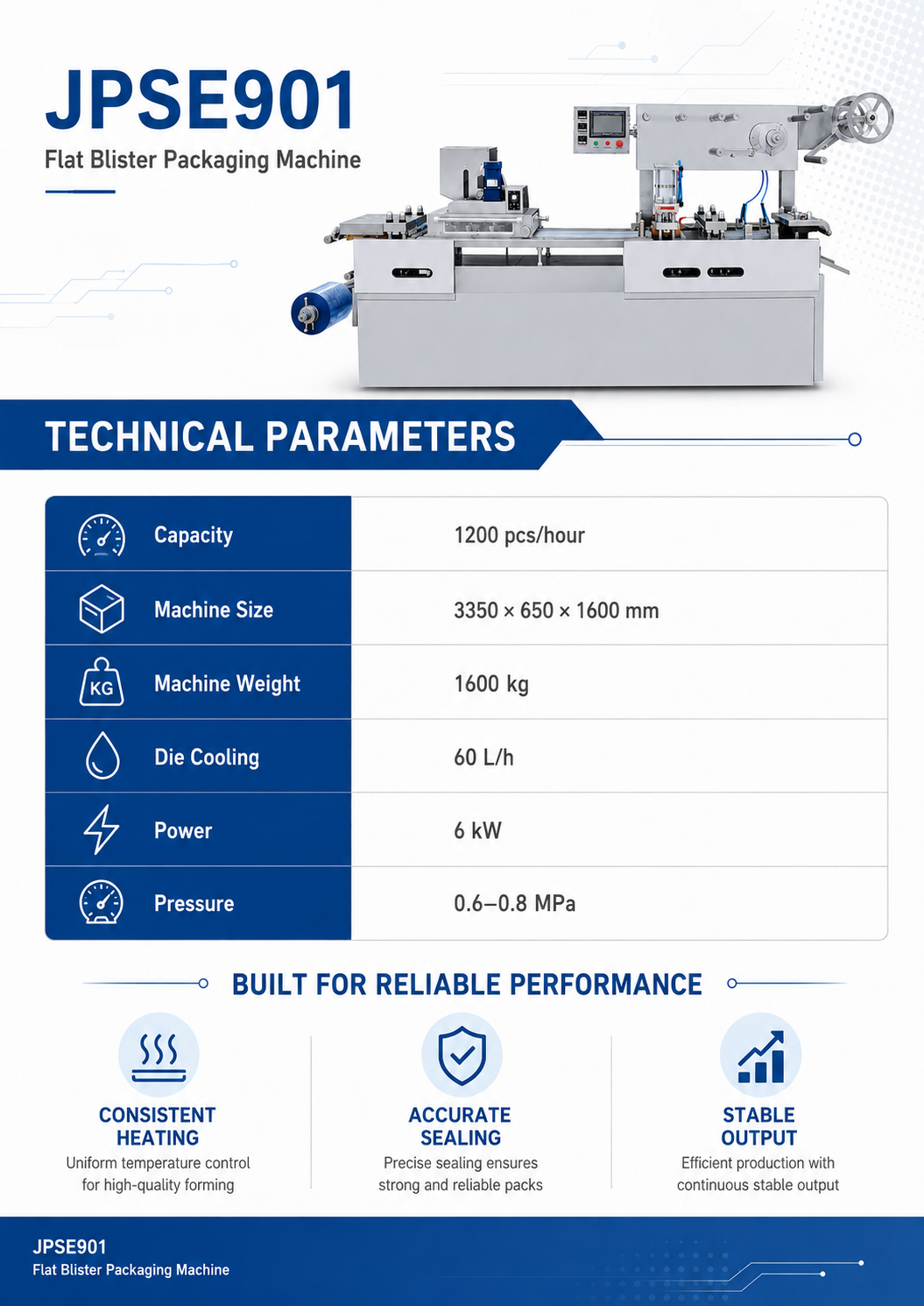

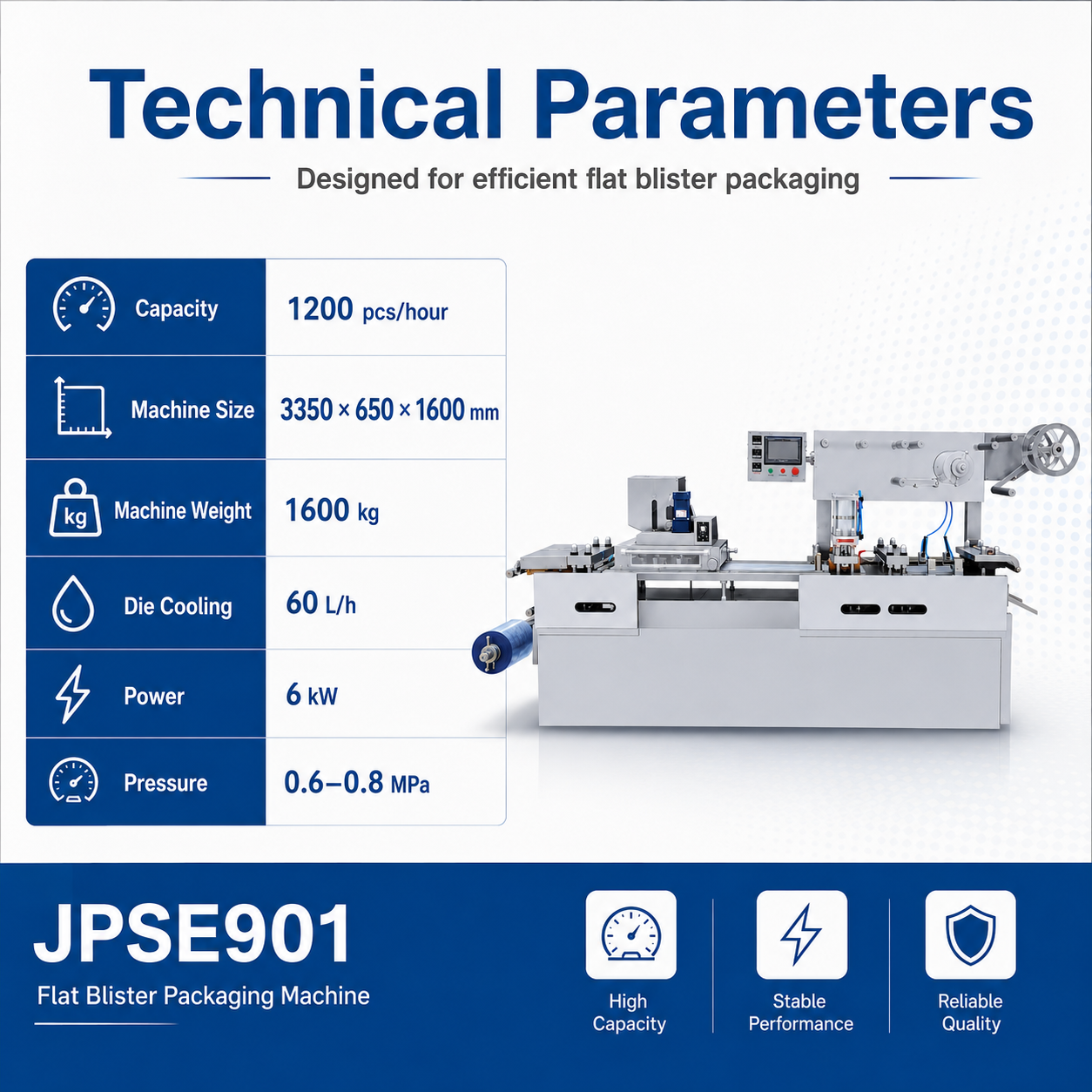

Standard Specifications
| Item | Specification |
|---|---|
| Code | JPSE901 |
| Capacity | 1200 pcs/hour (standard 80×57 mm, 4 editions/time) |
| Machine size | 3350 × 650 × 1600 mm |
| Machine weight | 1600 kg |
| Die cooling | 60 L/h |
| Power | 6 kW |
| Pressure | 0.6–0.8 MPa |
Technical Parameters
| Parameter | Specification |
|---|---|
| Type | Flat blister packaging machine |
| Capacity | 1200 pcs/h |
| Power | 6 kW |
Model: JPSE901 · Flat blister packaging machine.
