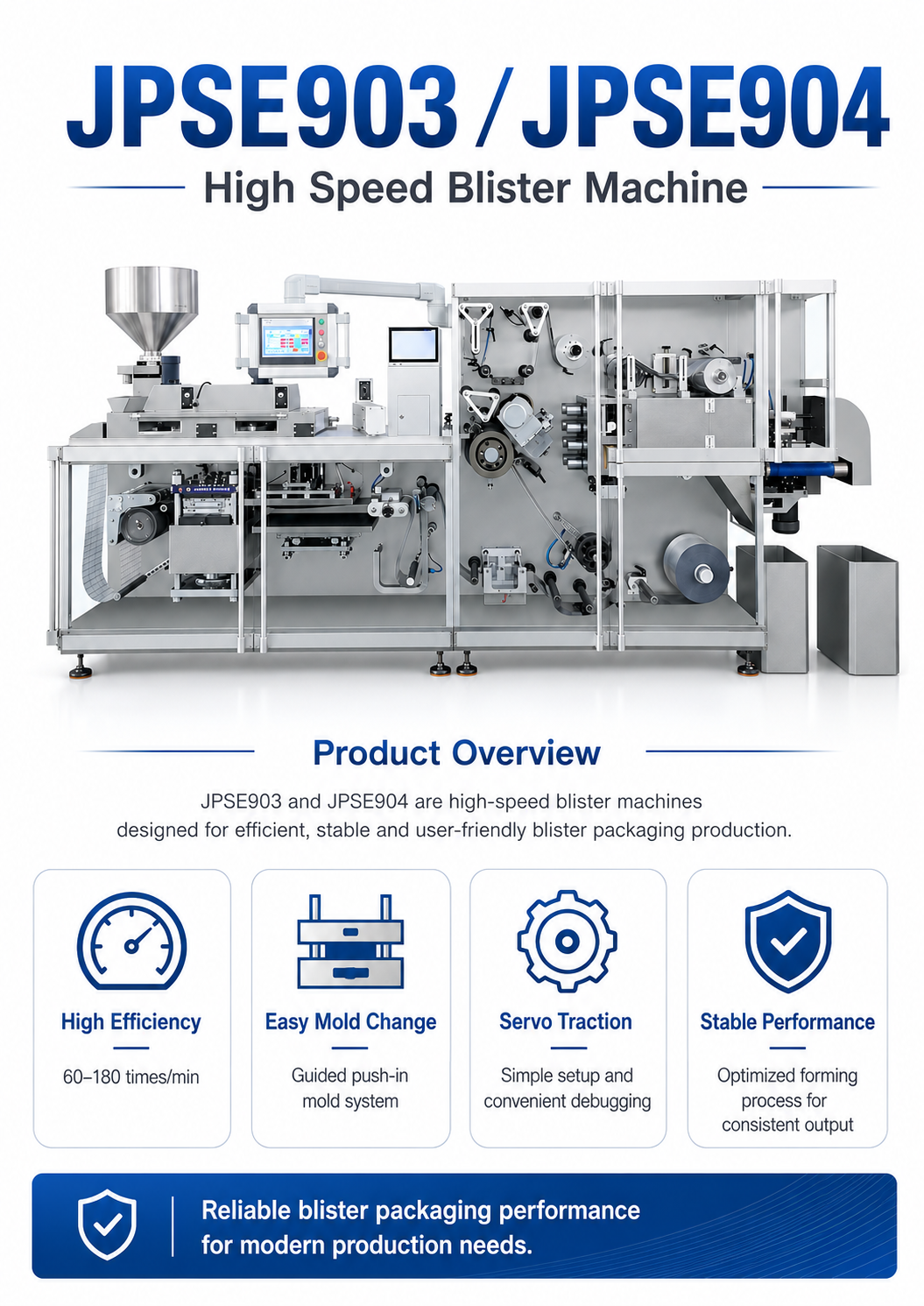

High Speed Blister Machine — JPSE903 / JPSE904

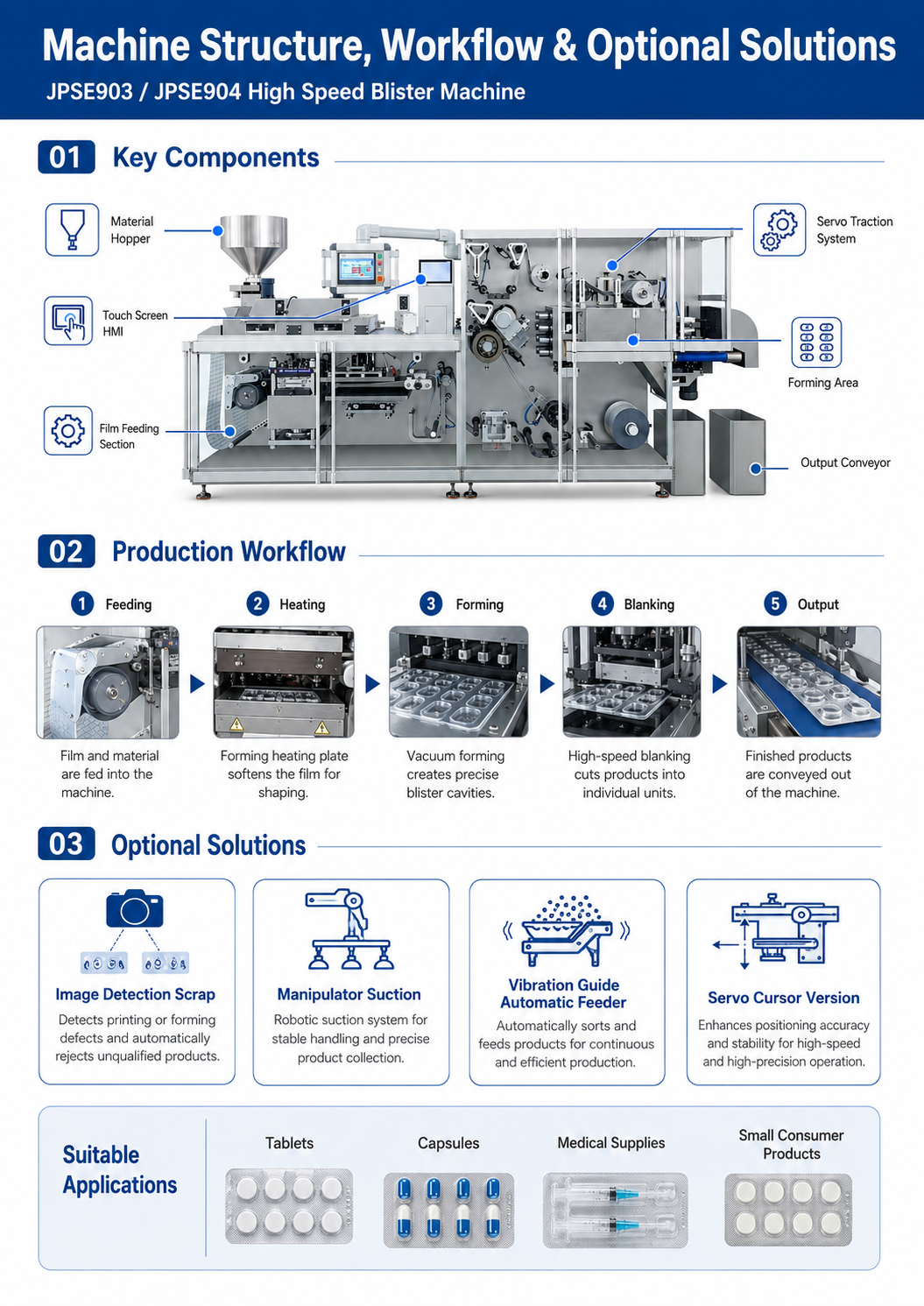

The JPSE903 and JPSE904 are high-speed blister machines running at 60–180 strokes per minute with servo traction for quick, convenient setup. Molds change without tools via a guided push-in design, and the forming heating plate uses a wide stop-separation distance to avoid over-softening PVC. Options include image-based scrap detection, manipulator suction, vibration-guide auto feeder, and a servo cursor version. The JPSE904 offers a larger molding area and higher power than the JPSE903.
Factory Direct
Manufacturer pricing
OEM / ODM
Custom branding
Certified
CE / ISO / FDA
Global Logistics
100+ countries
After-Sales
Parts & support

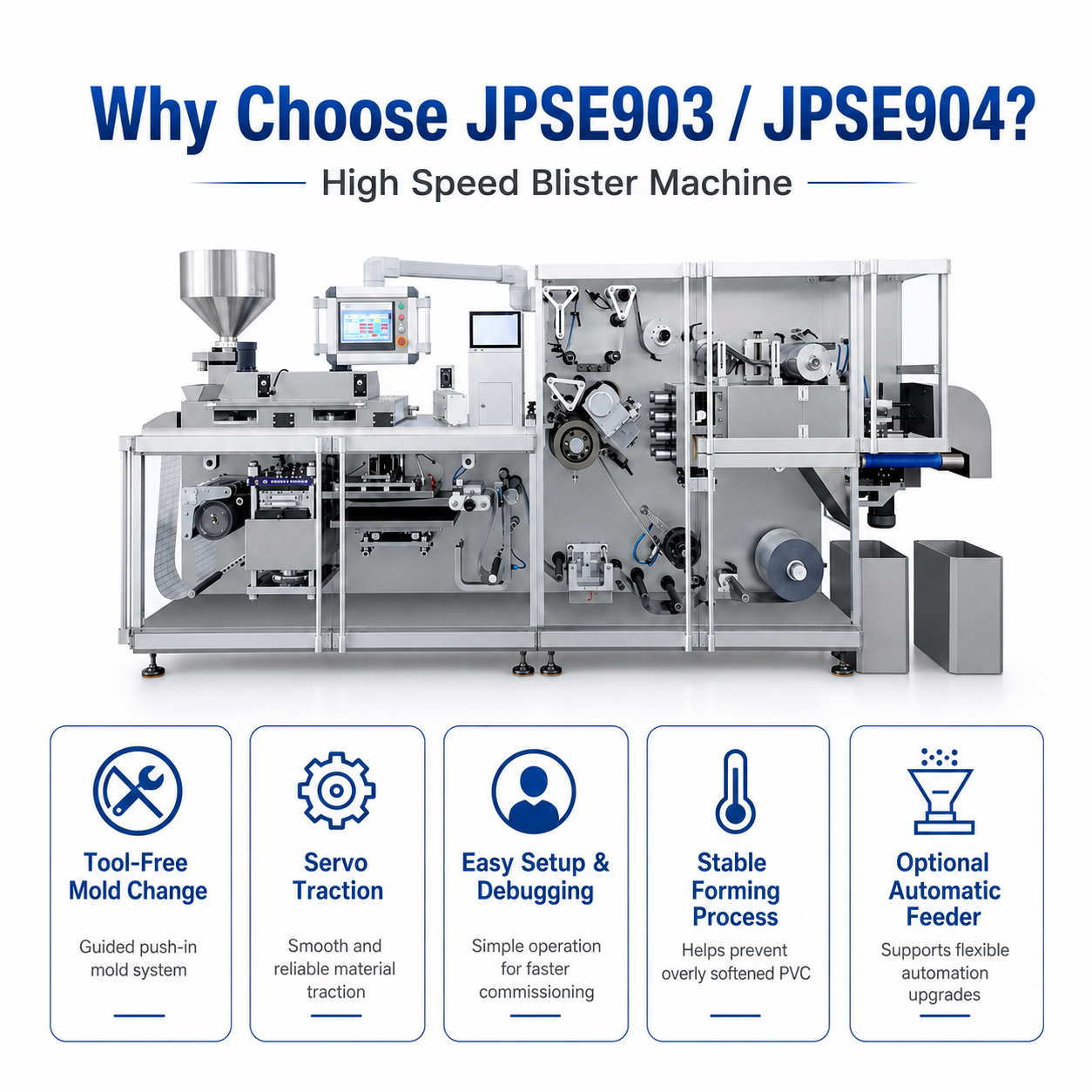

Key Highlights
- High speed — 60–180 strokes/min, servo traction.
- Tool-free mold change — Guided push-in molds.
- PVC-friendly forming — Wide heat-plate separation.

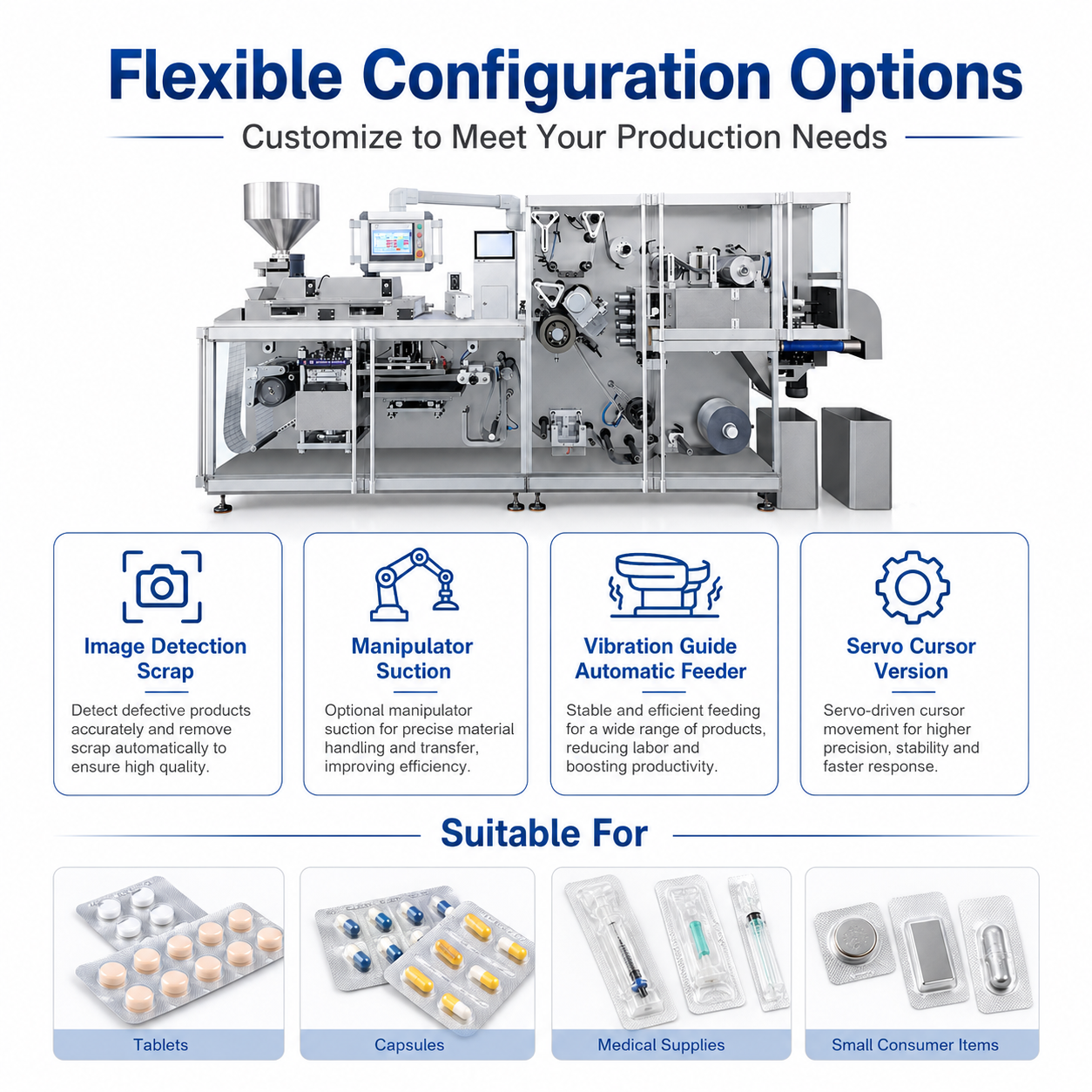

- Smart options — Image scrap detection, manipulator suction, auto feeder.

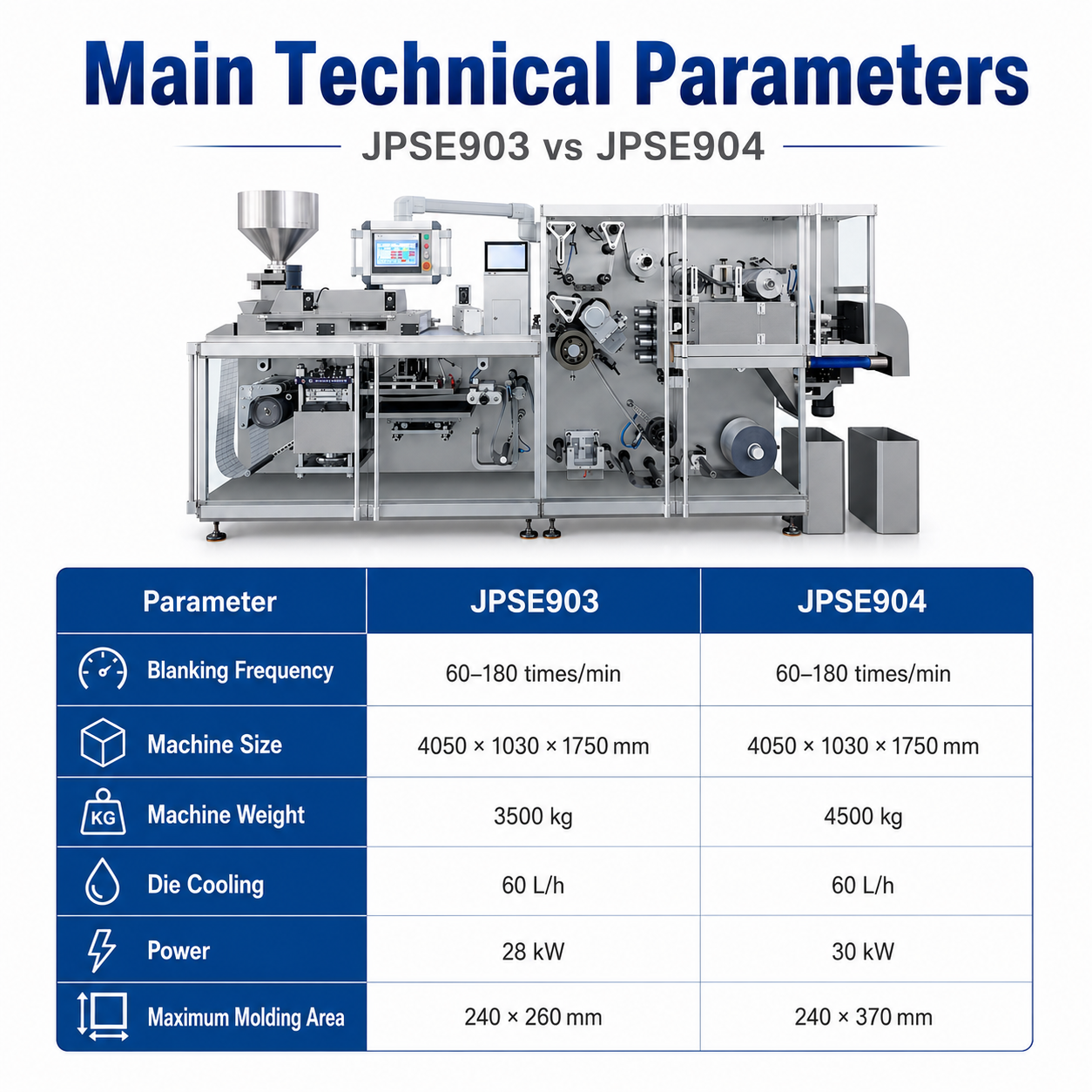

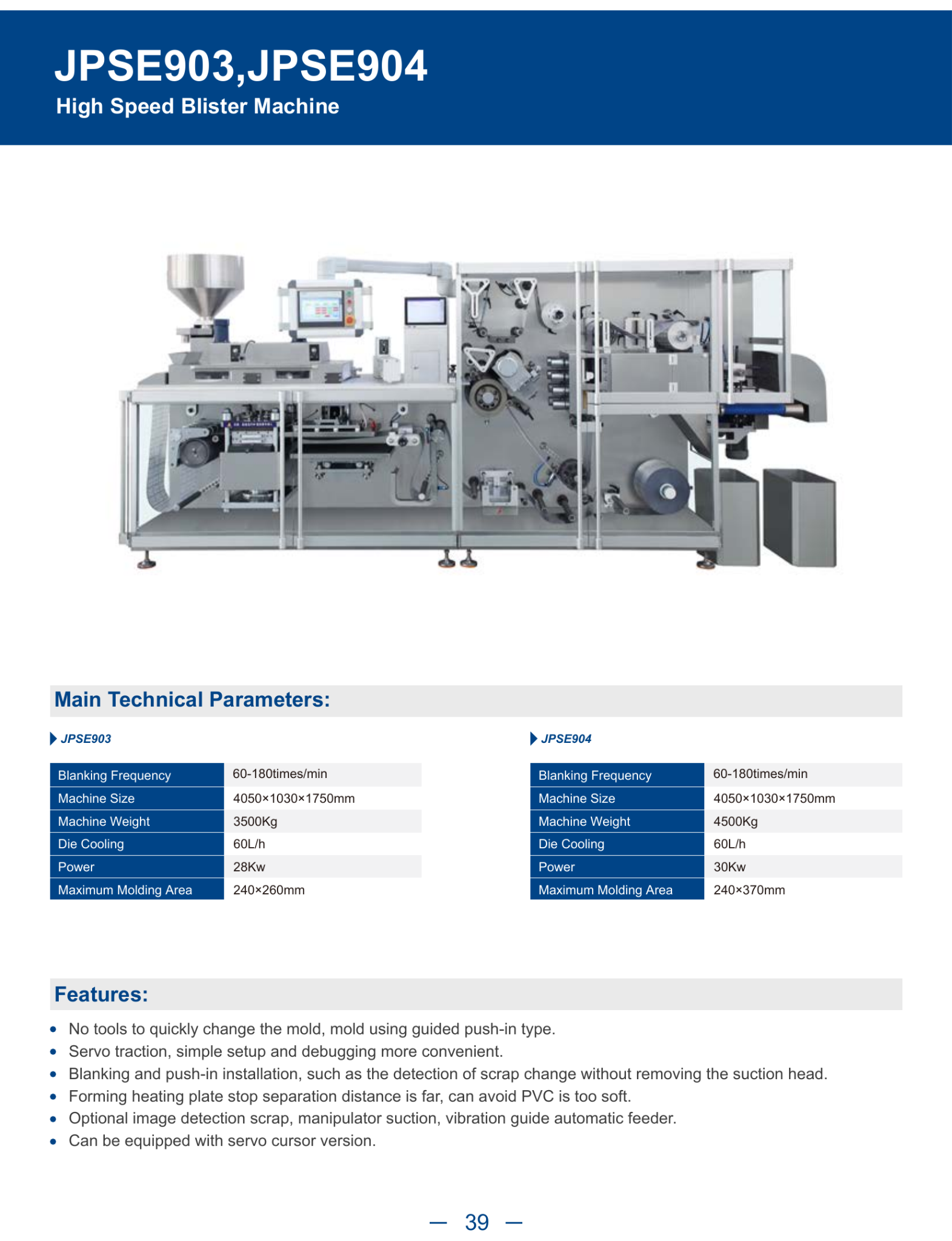

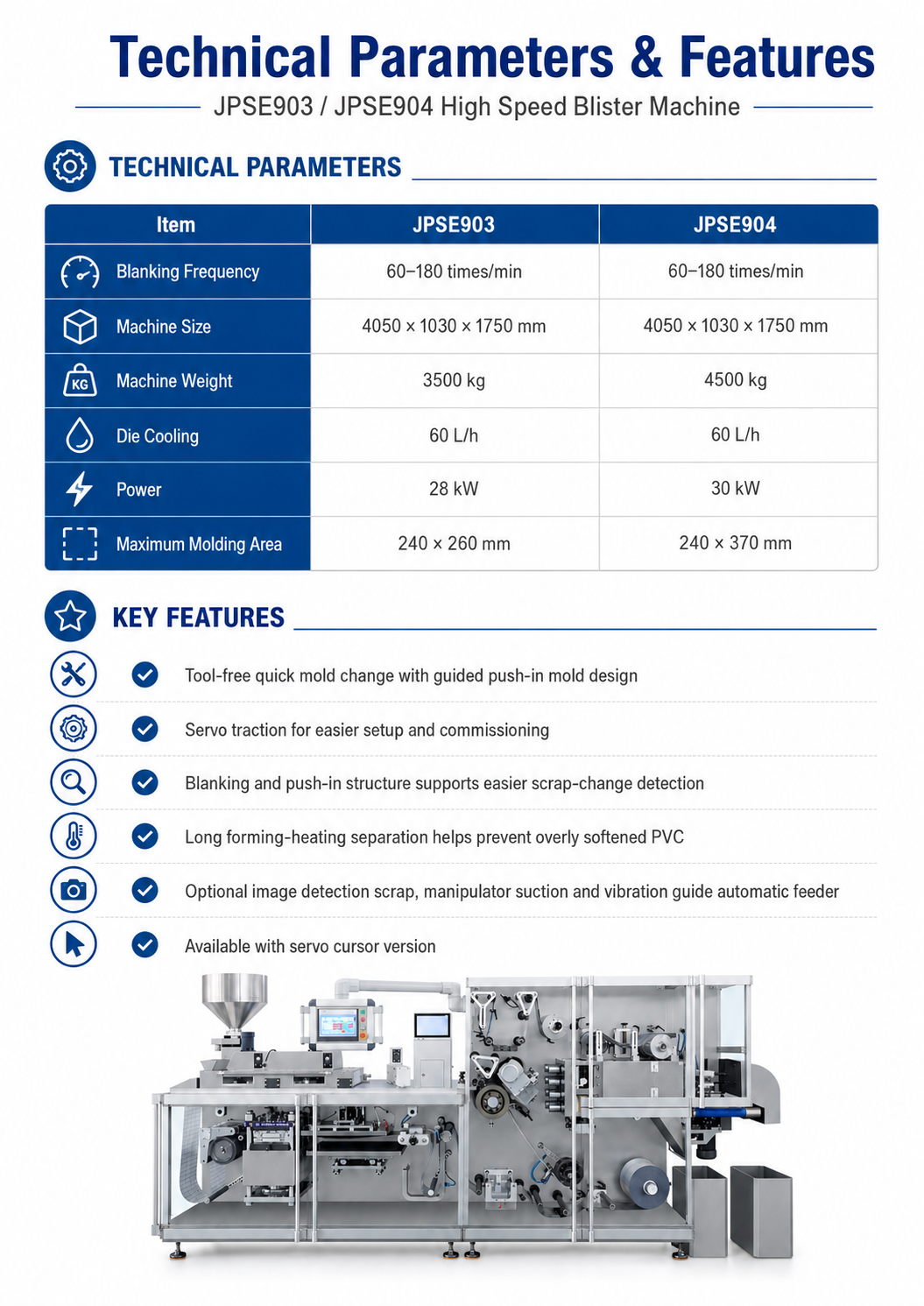

Standard Specifications
| Item | JPSE903 | JPSE904 |
|---|---|---|
| Blanking frequency | 60–180 times/min | 60–180 times/min |
| Machine size | 4050 × 1030 × 1750 mm | 4050 × 1030 × 1750 mm |
| Machine weight | 3500 kg | 4500 kg |
| Die cooling | 60 L/h | 60 L/h |
| Power | 28 kW | 30 kW |
| Maximum molding area | 240 × 260 mm | 240 × 370 mm |
Technical Parameters
| Parameter | Specification |
|---|---|
| Type | High-speed blister machine |
| Speed | 60–180 strokes/min |
| Power | 28–30 kW |
Model: JPSE903 / JPSE904 · High-speed blister machines.
