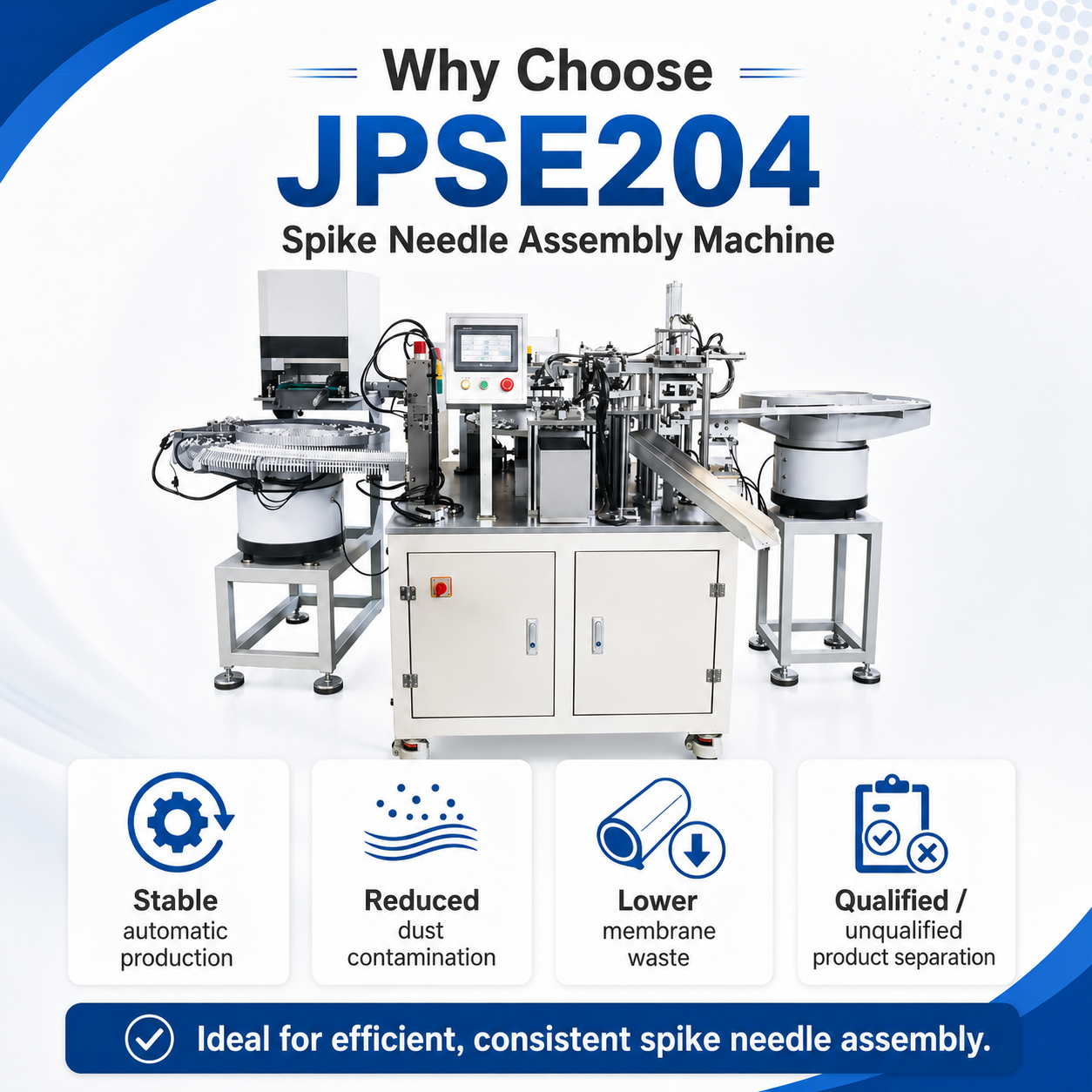

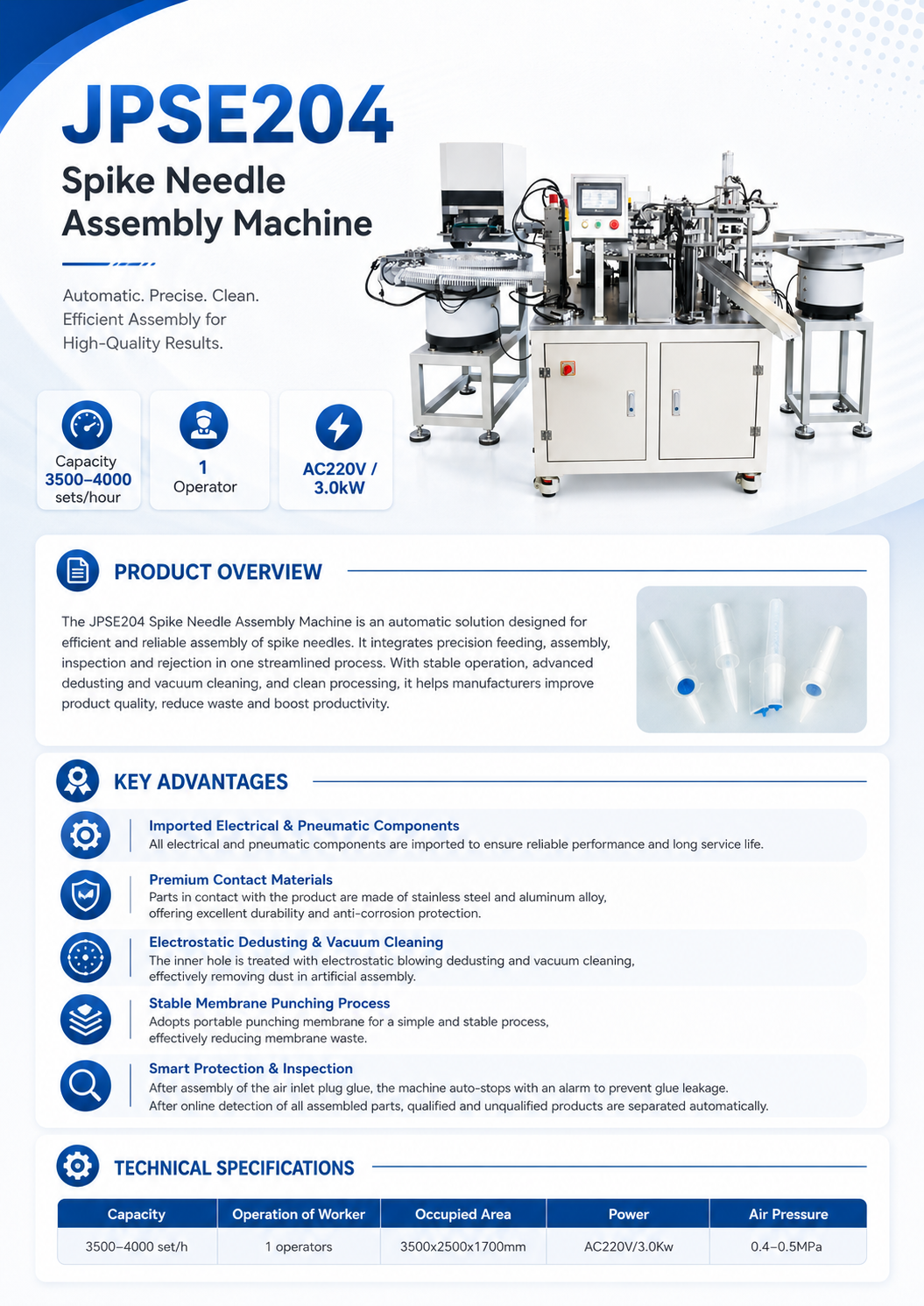

Spike Needle Assembly Machine — JPSE204

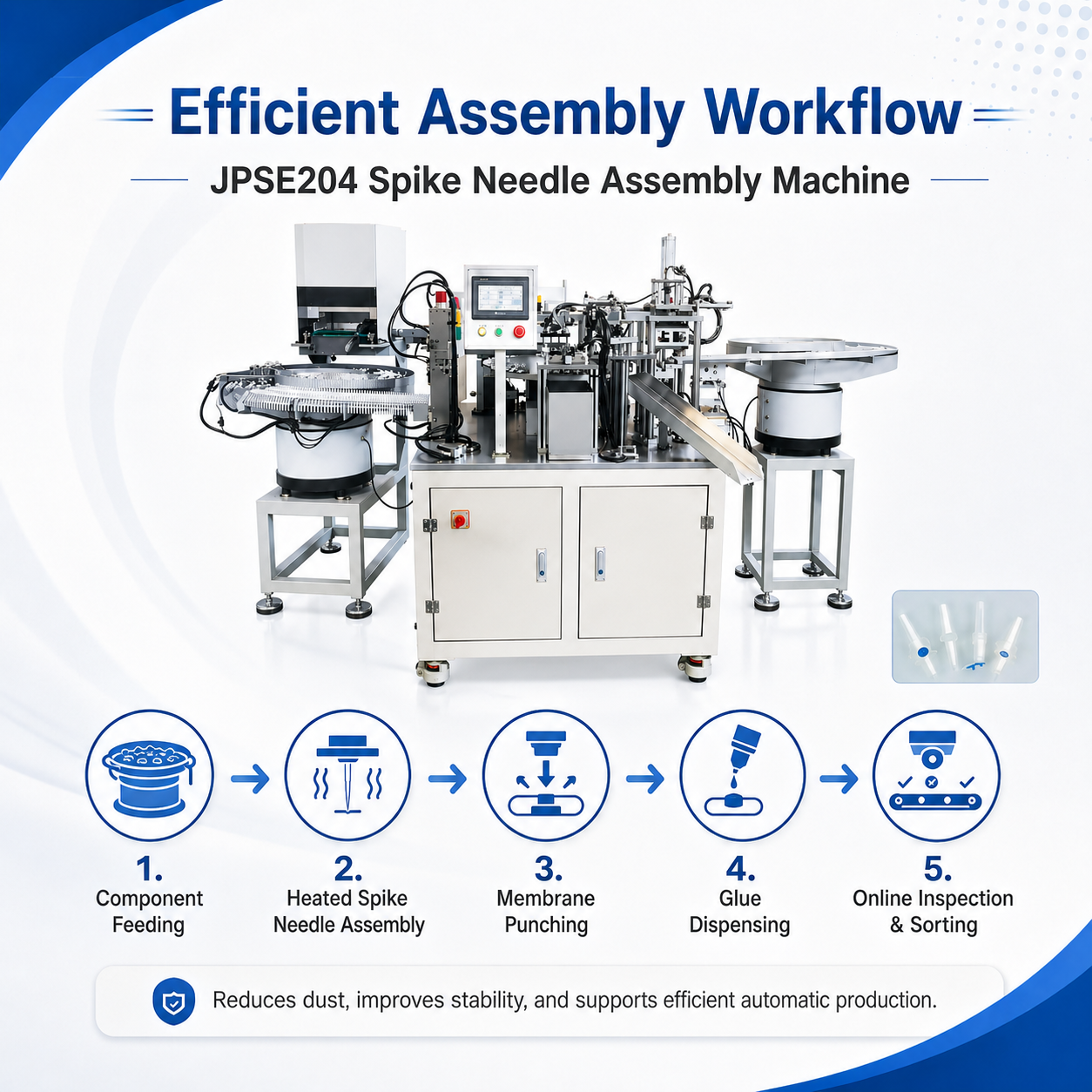

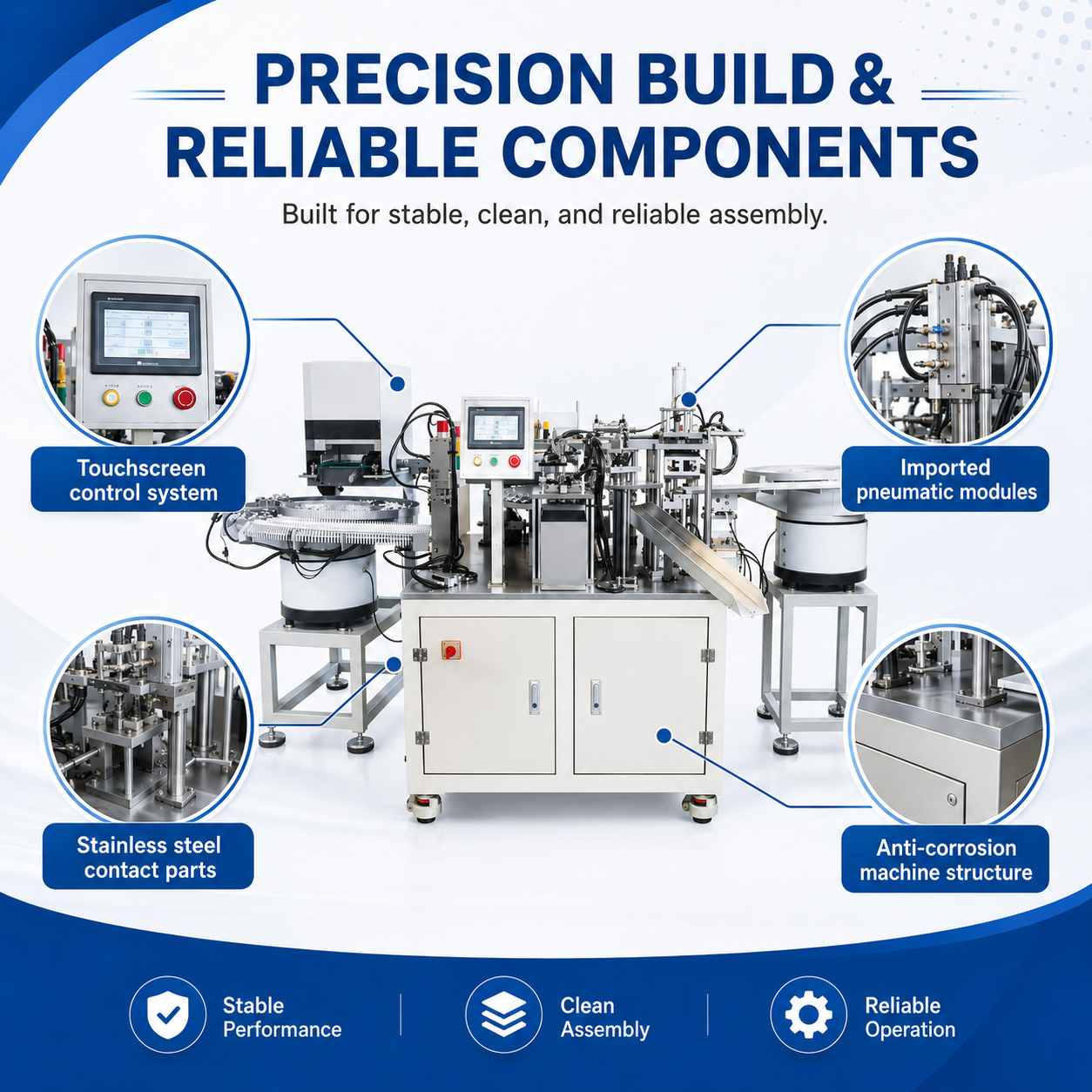

The JPSE204 spike needle assembly machine automatically assembles the spike (piercing needle) and filter membrane of an infusion set at 3500–4000 sets/hour with a single operator. Imported electrical and pneumatic components and stainless-steel/aluminum product-contact parts ensure corrosion resistance, while electrostatic blow-cleaning and vacuum extraction keep the inner bore dust-free. Inlet-plug gluing has no-glue auto-stop alarm, and an online inspection separates qualified from defective products.
Factory Direct
Manufacturer pricing
OEM / ODM
Custom branding
Certified
CE / ISO / FDA
Global Logistics
100+ countries
After-Sales
Parts & support
Why Choose JPS
- 20+ Years Experience
- OEM & ODM
- ISO13485
- Export to 80+ Countries
- Tender Project Experience
- Strict QC

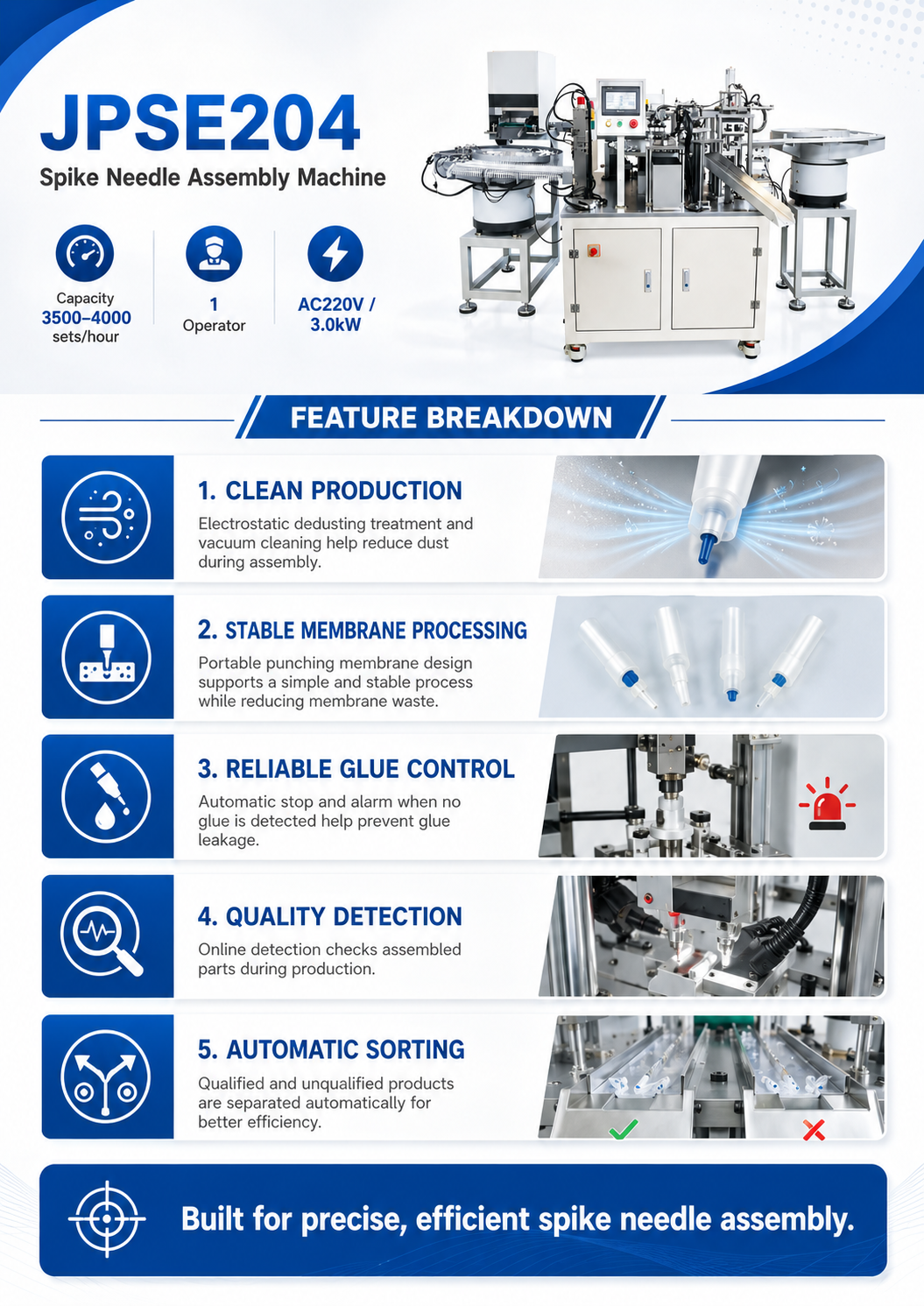

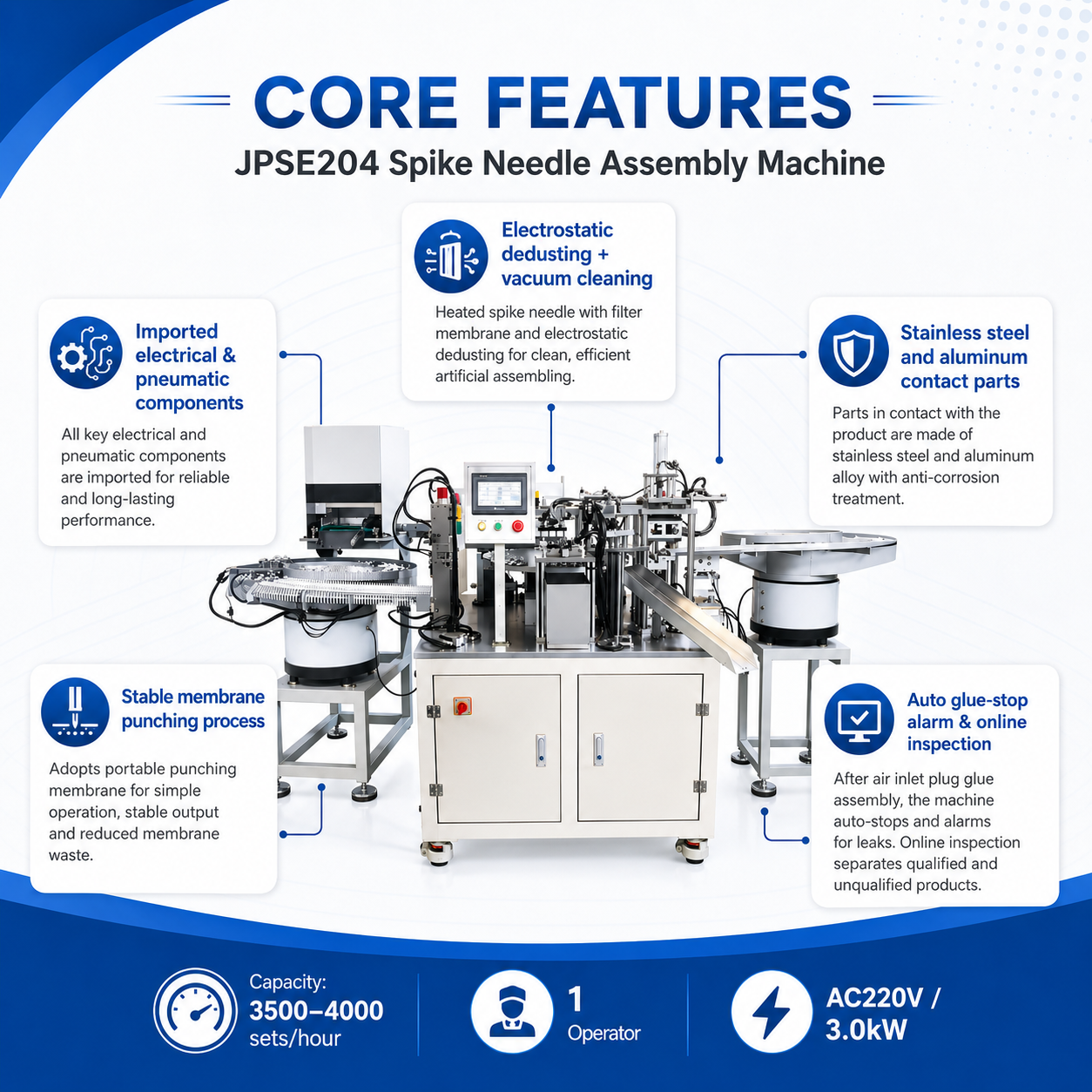

Key Highlights
- Automatic assembly — Spike + filter membrane, 3500–4000 sets/h.
- Clean process — Electrostatic blow + vacuum dust removal.
- Glue safeguard — No-glue auto-stop and alarm.
- Inline QC — Sorts qualified vs. defective parts.

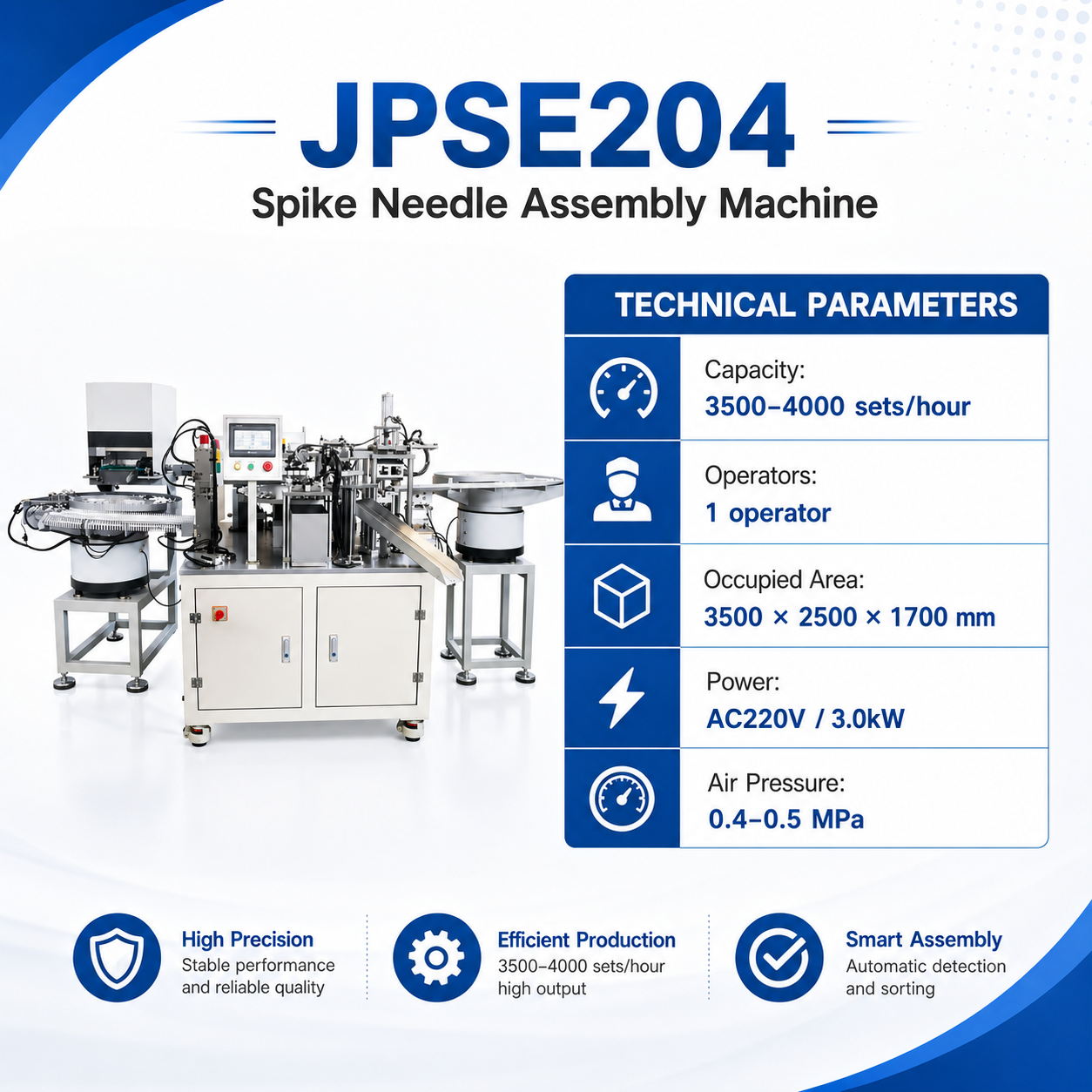

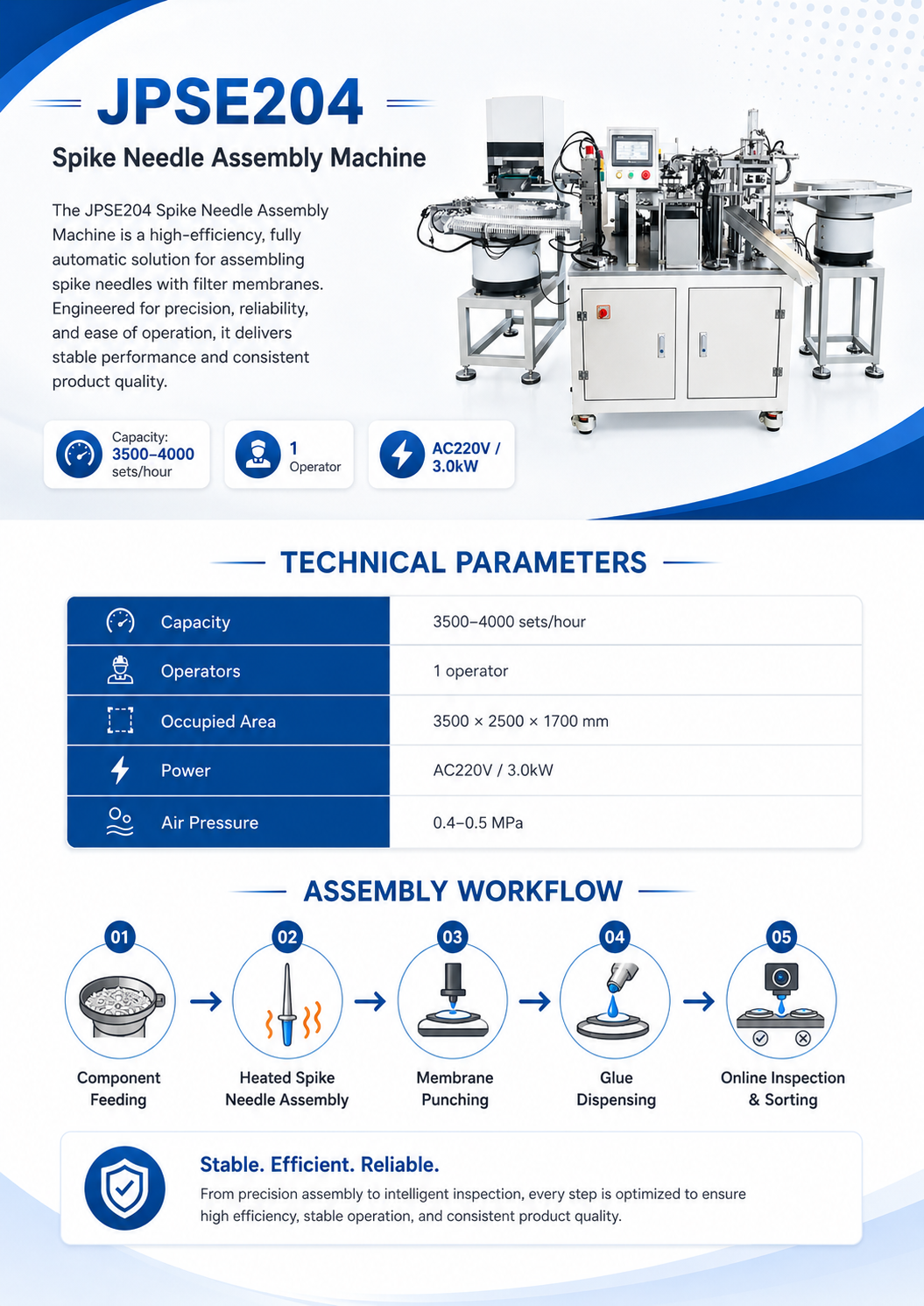

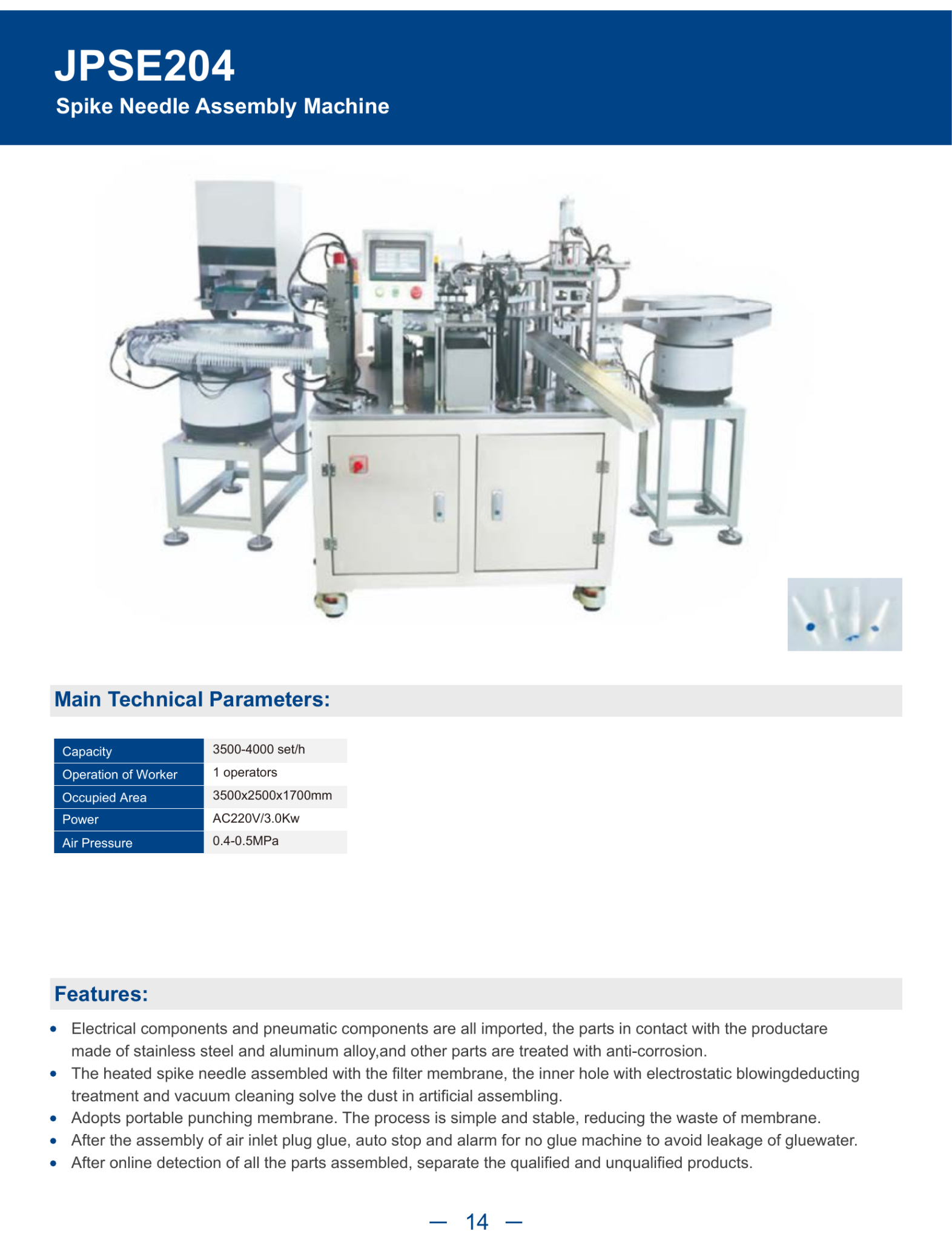

Standard Specifications
| Item | Specification |
|---|---|
| Code | JPSE204 |
| Capacity | 3500–4000 sets/hour |
| Operators | 1 |
| Occupied area | 3500 × 2500 × 1700 mm |
| Power | AC 220 V / 3.0 kW |
| Air pressure | 0.4–0.5 MPa |
Technical Parameters
| Parameter | Specification |
|---|---|
| Type | Spike needle assembly machine |
| Capacity | 3500–4000 sets/h |
| Power | AC 220 V / 3.0 kW |
Model: JPSE204 · Spike needle assembly machine.
