Drip Chamber Assembly Machine — JPSE205

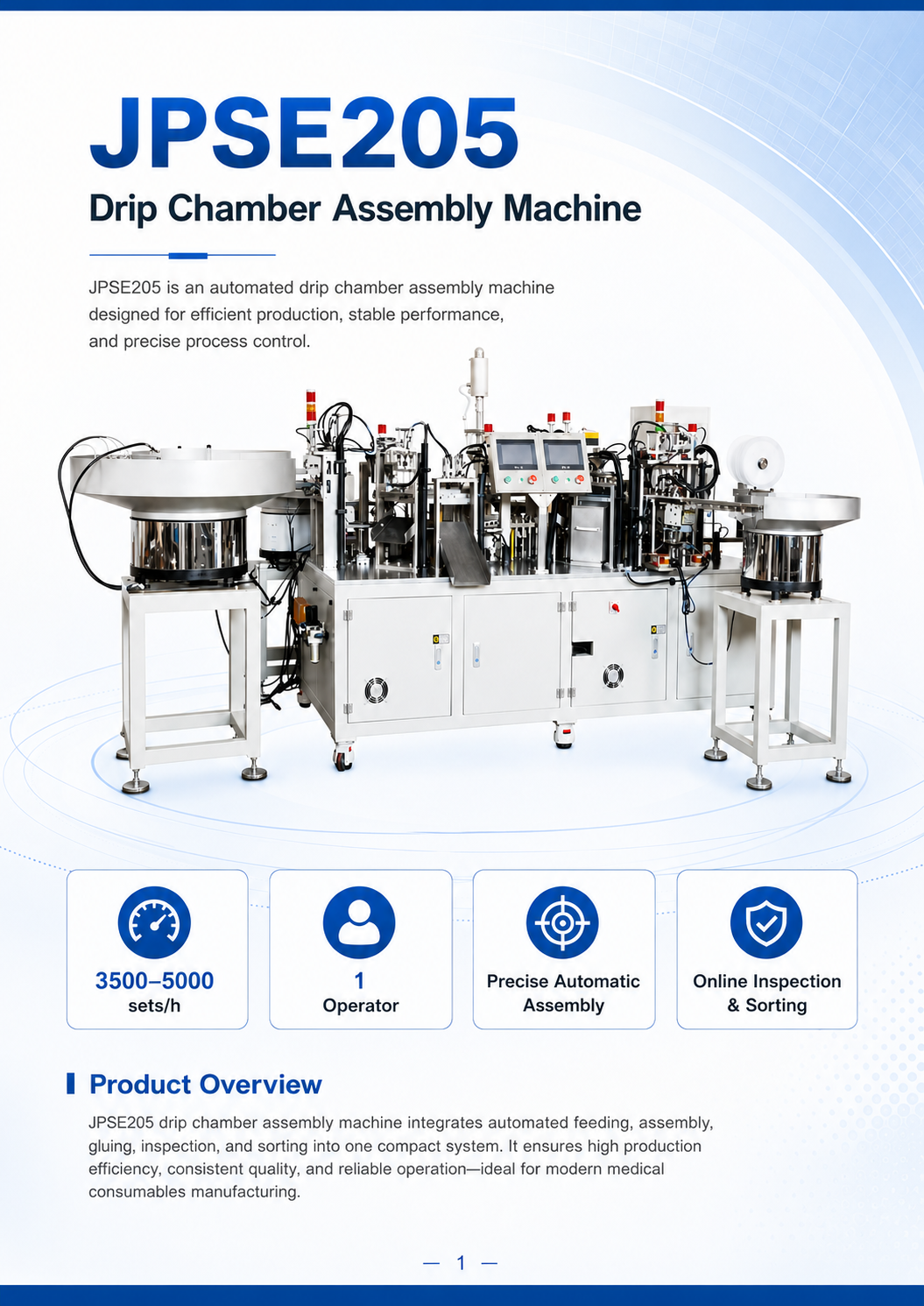

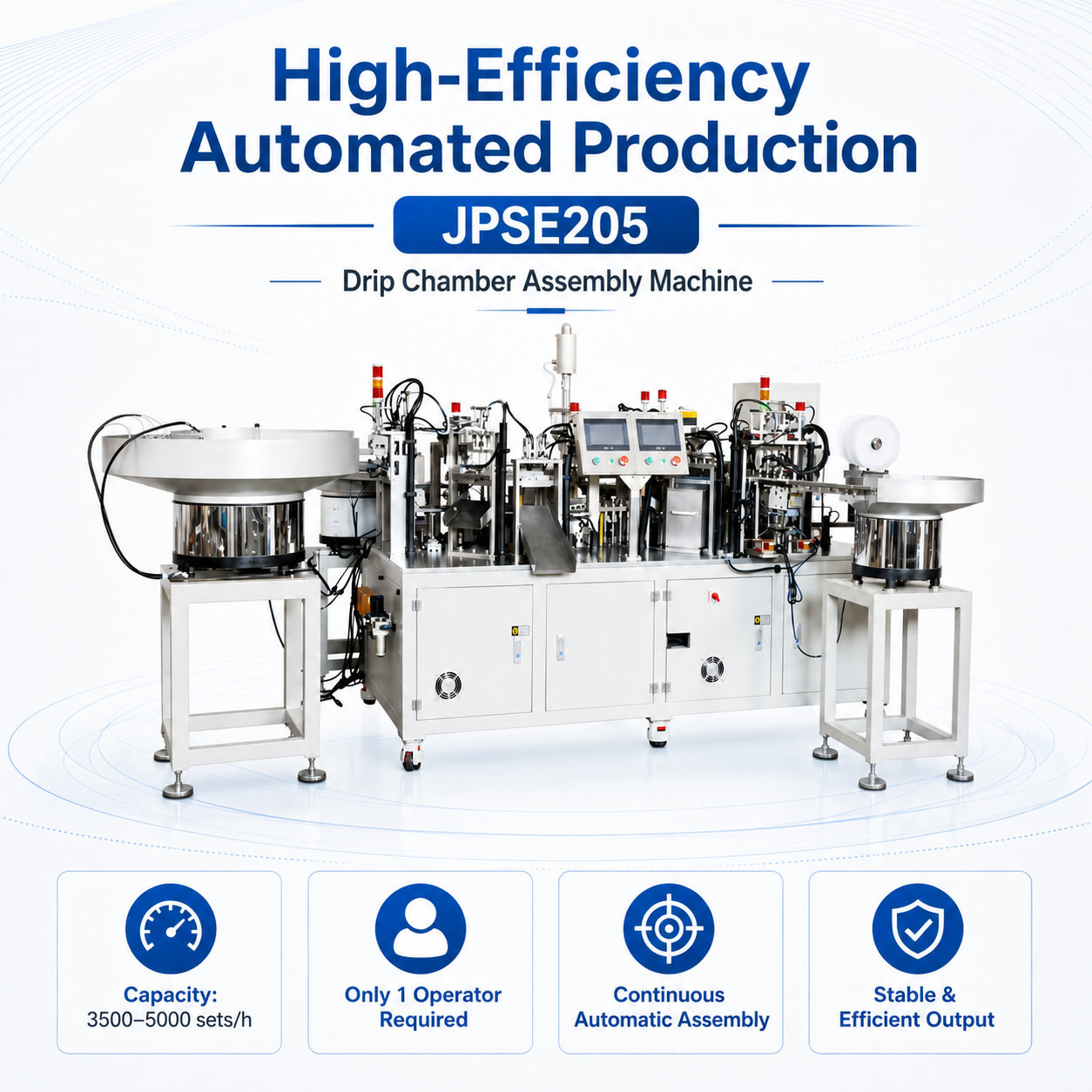

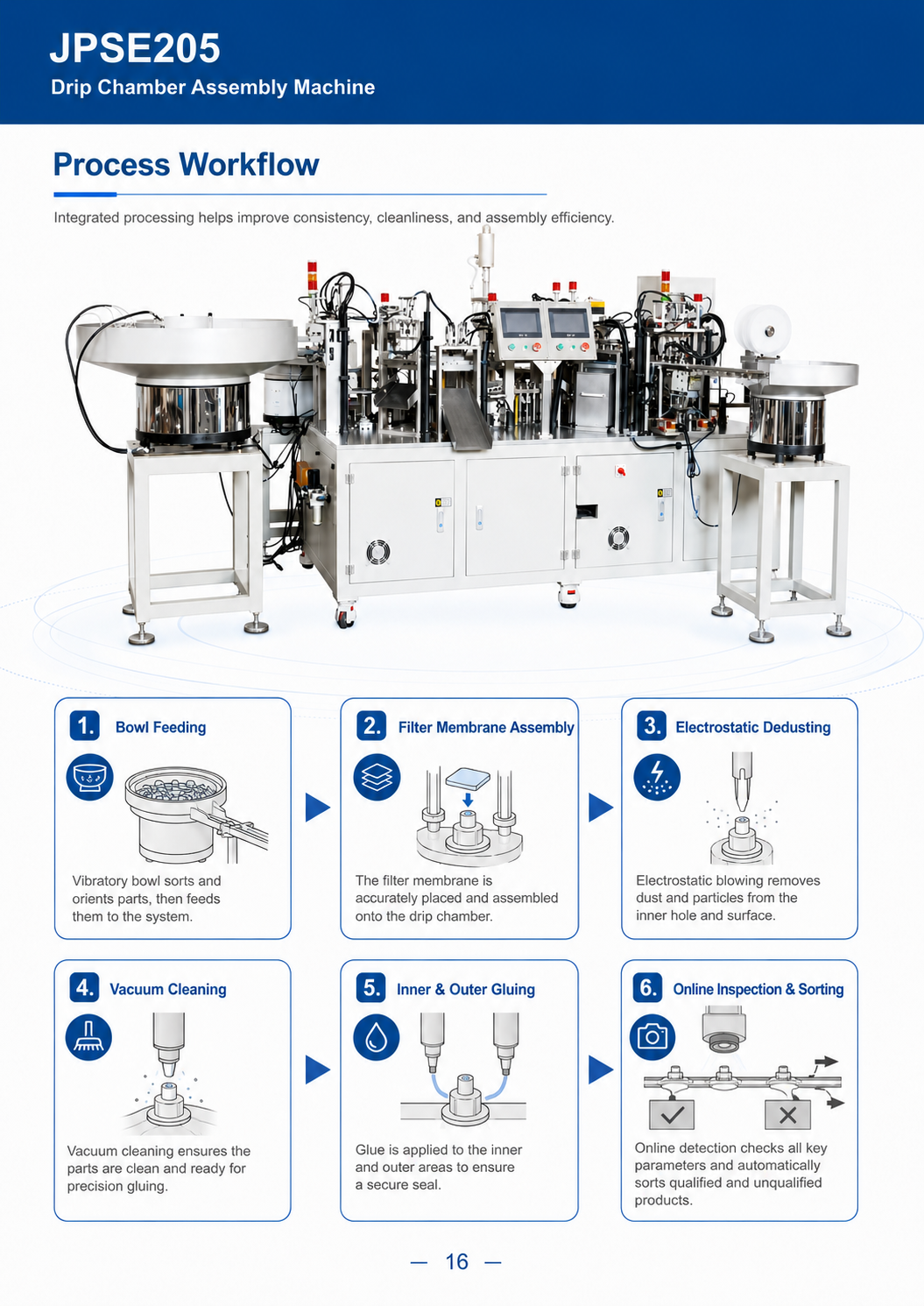

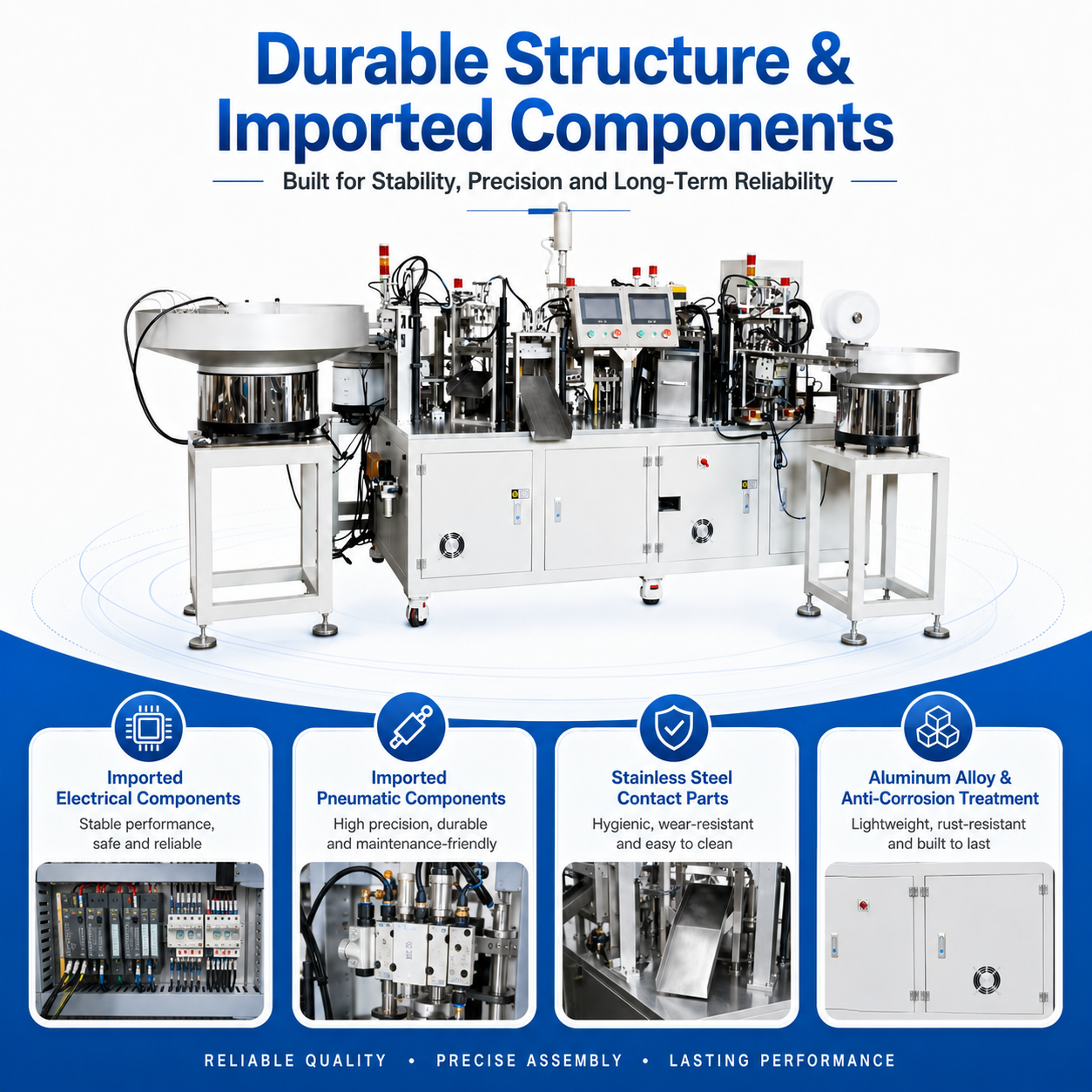

The JPSE205 drip chamber assembly machine automatically assembles infusion-set drip chambers with their filter membrane at 3500–5000 sets/hour with a single operator. Imported electrical and pneumatic components and stainless-steel/aluminum product-contact parts ensure corrosion resistance, while electrostatic blow-cleaning and vacuum extraction keep the inner bore dust-free. Inside/outside gluing has a no-glue auto-stop alarm, and an online inspection separates qualified from defective products.
Factory Direct
Manufacturer pricing
OEM / ODM
Custom branding
Certified
CE / ISO / FDA
Global Logistics
100+ countries
After-Sales
Parts & support

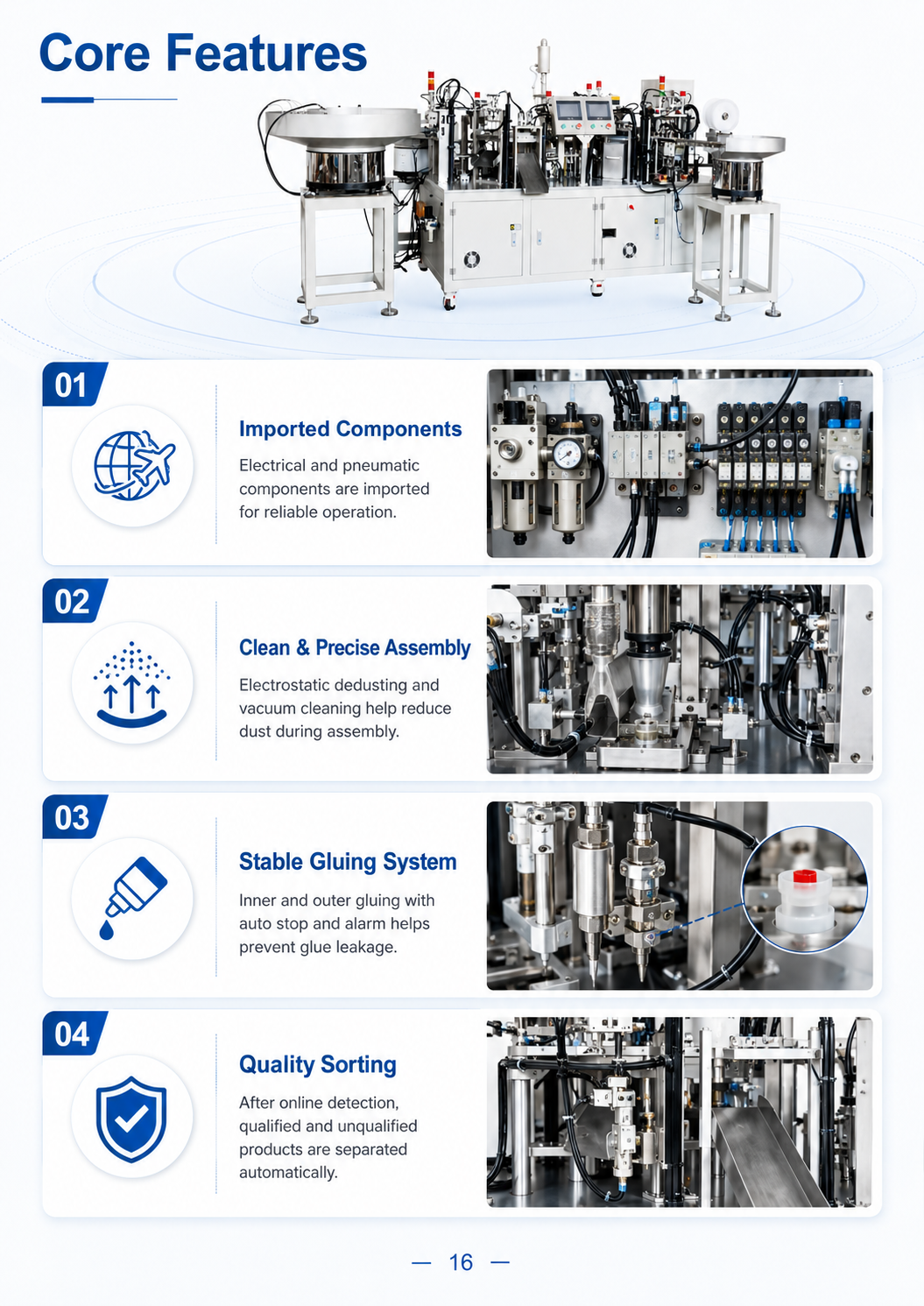

Key Highlights
- Automatic assembly — Drip chamber + filter, 3500–5000 sets/h.

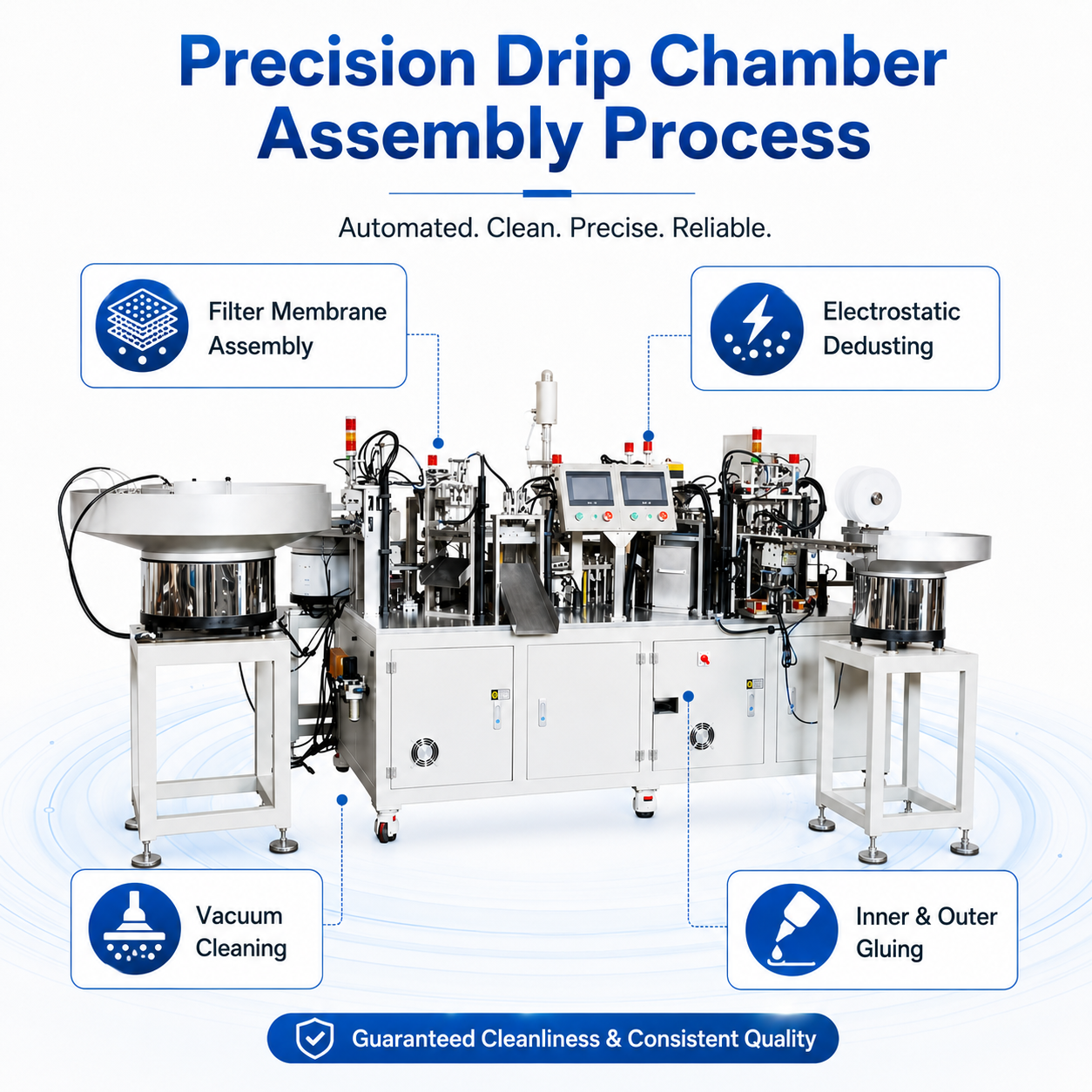

- Clean process — Electrostatic blow + vacuum dust removal.

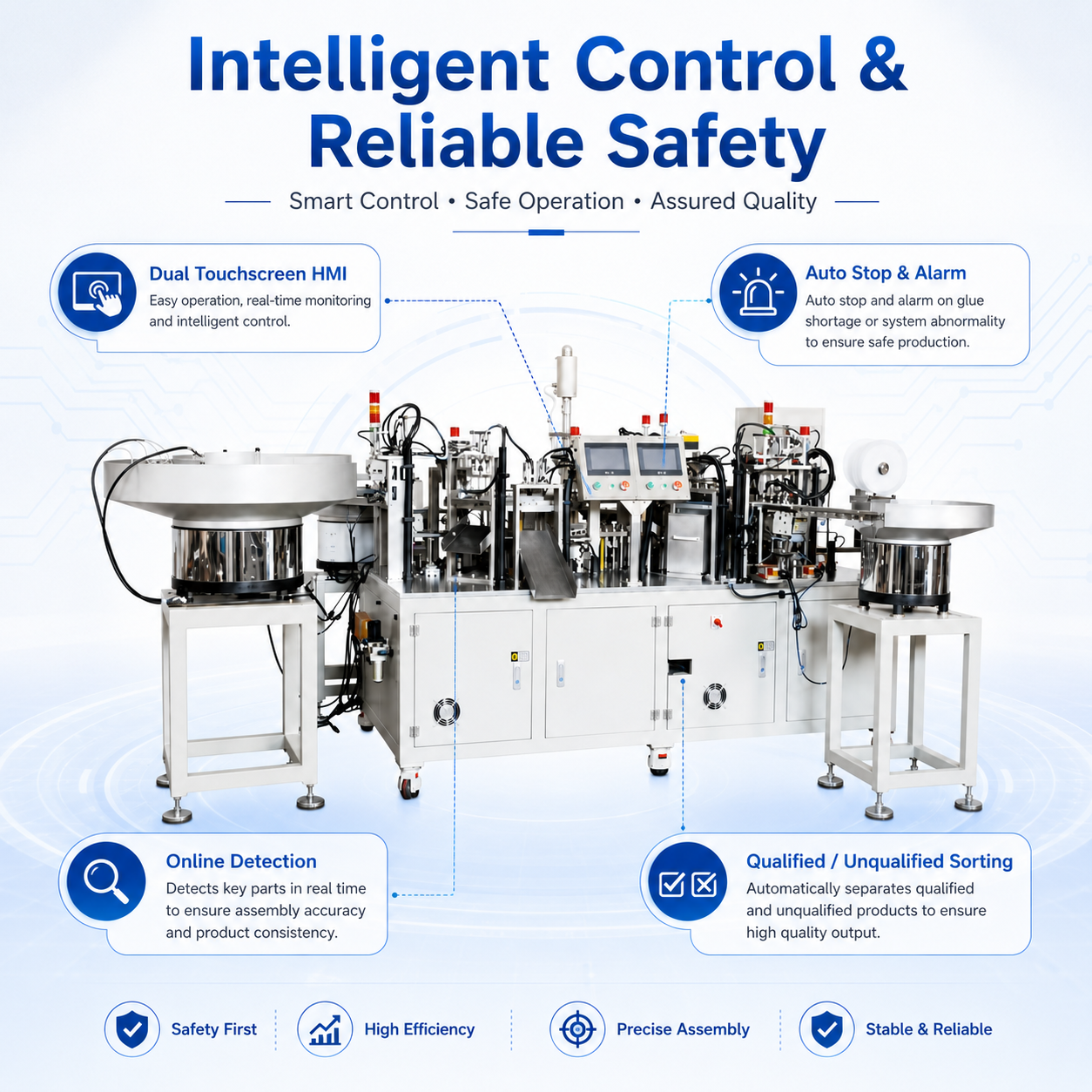

- Glue safeguard — No-glue auto-stop and alarm.
- Inline QC — Sorts qualified vs. defective parts.

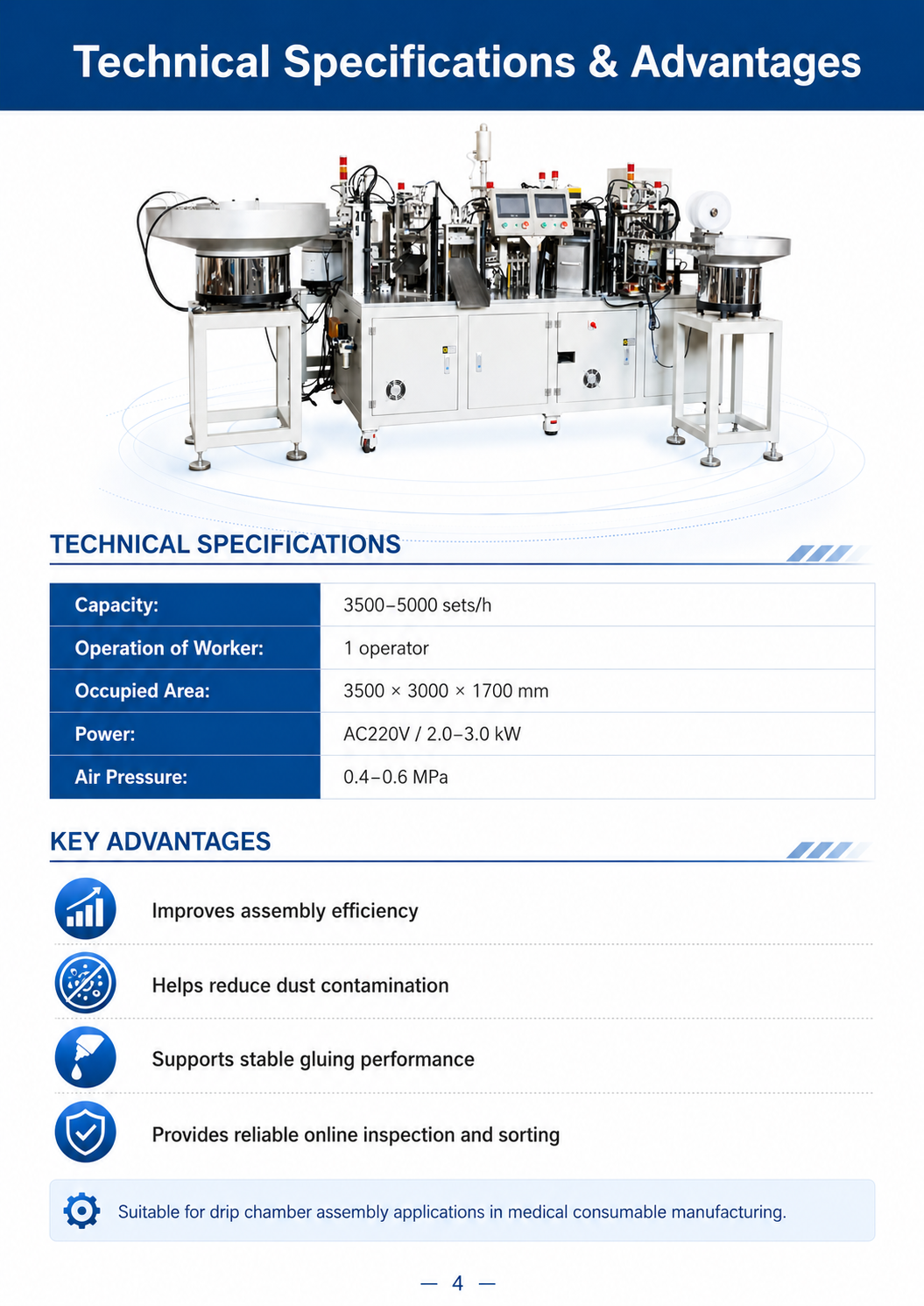

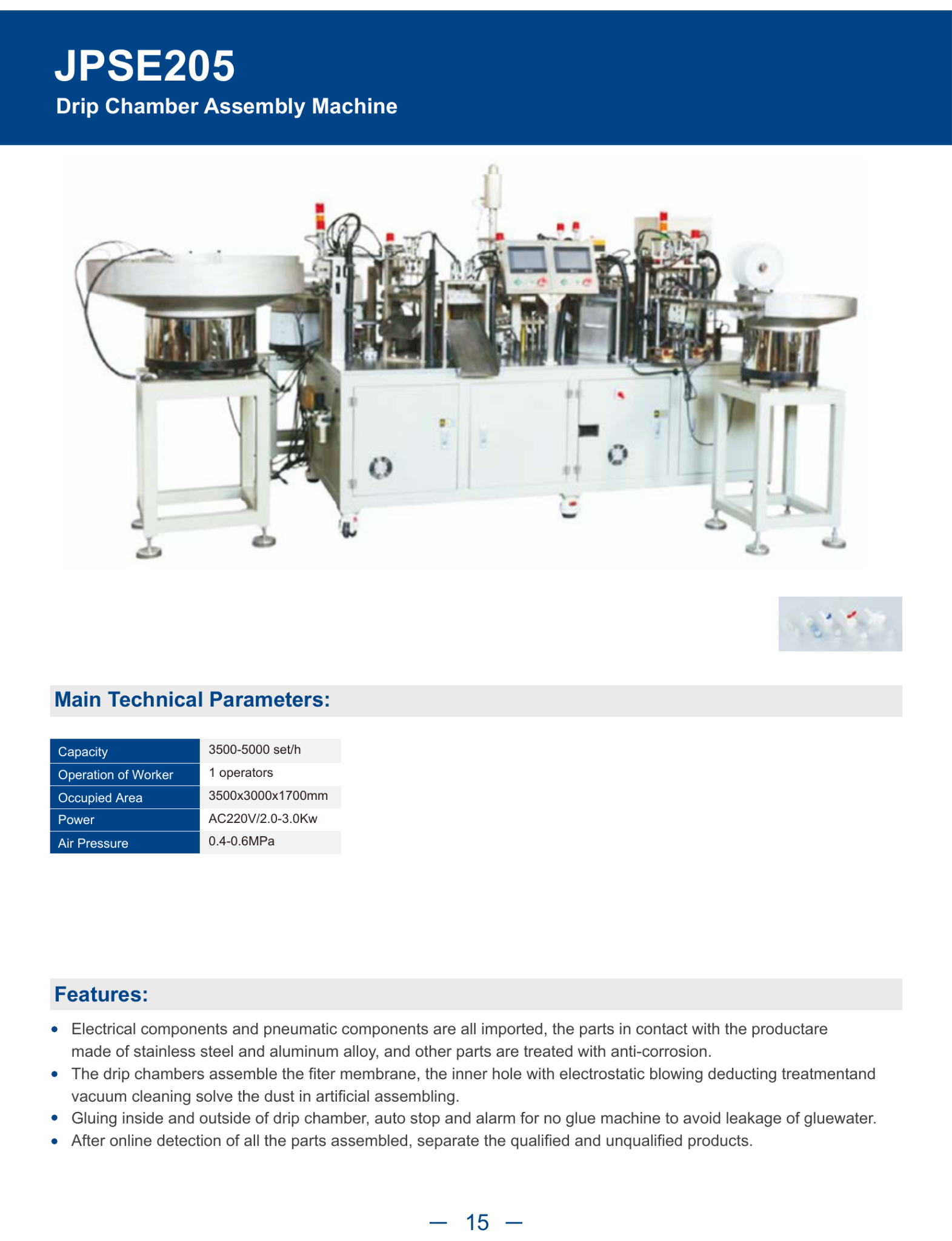

Standard Specifications
| Item | Specification |
|---|---|
| Code | JPSE205 |
| Capacity | 3500–5000 sets/hour |
| Operators | 1 |
| Occupied area | 3500 × 3000 × 1700 mm |
| Power | AC 220 V / 2.0–3.0 kW |
| Air pressure | 0.4–0.6 MPa |

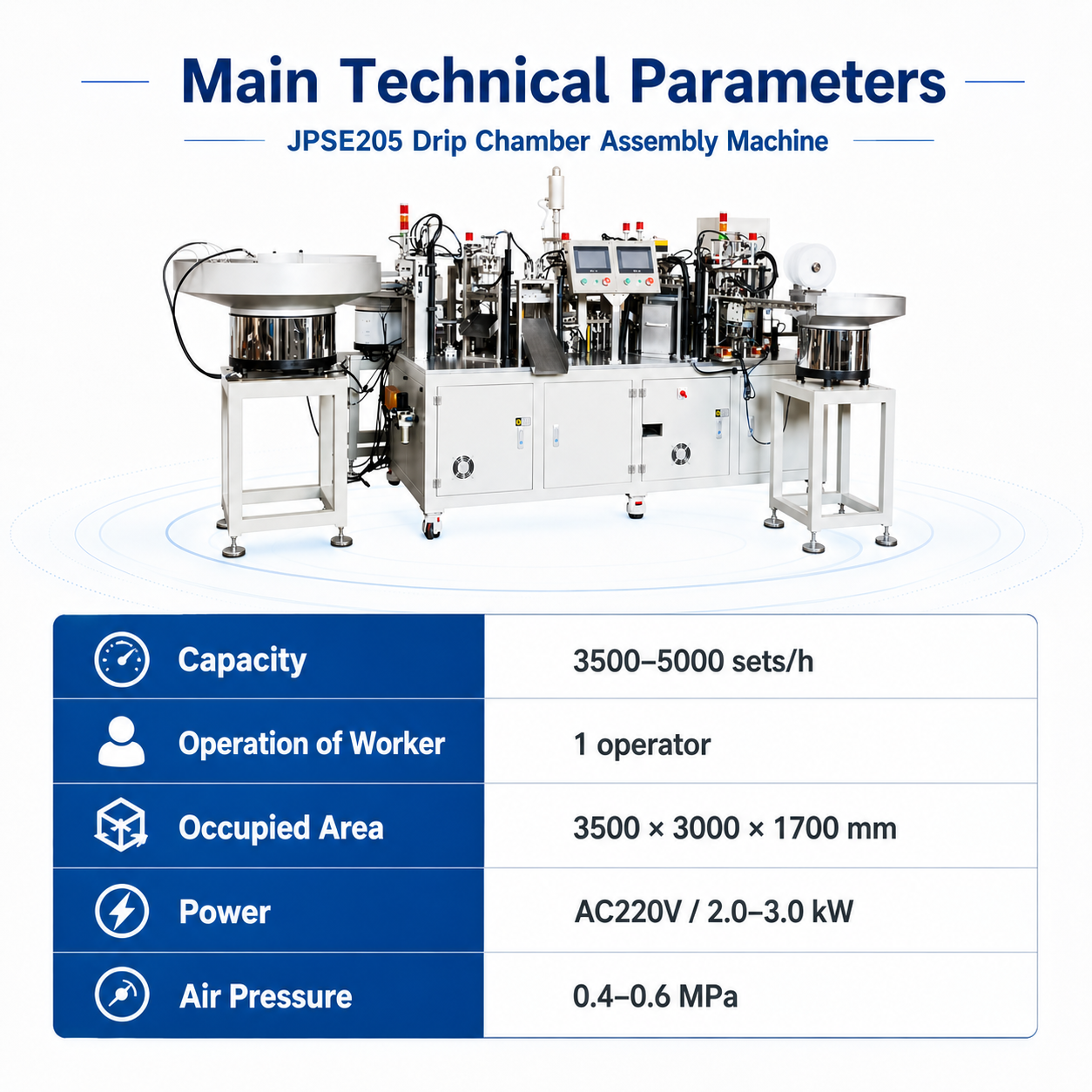

Technical Parameters
| Parameter | Specification |
|---|---|
| Type | Drip chamber assembly machine |
| Capacity | 3500–5000 sets/h |
| Power | AC 220 V / 2.0–3.0 kW |
Model: JPSE205 · Drip chamber assembly machine.
