Main Machines for Syringe Production Line

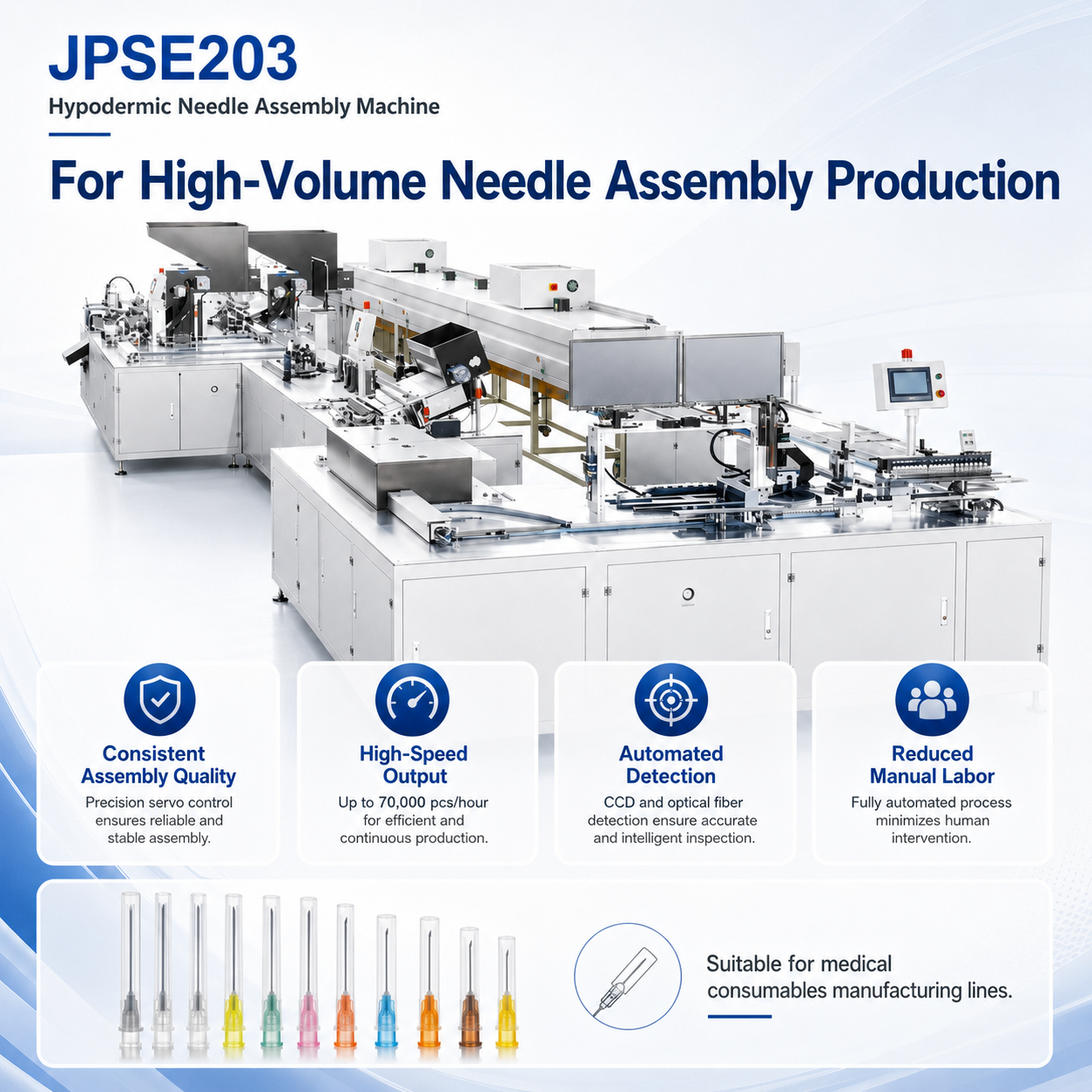

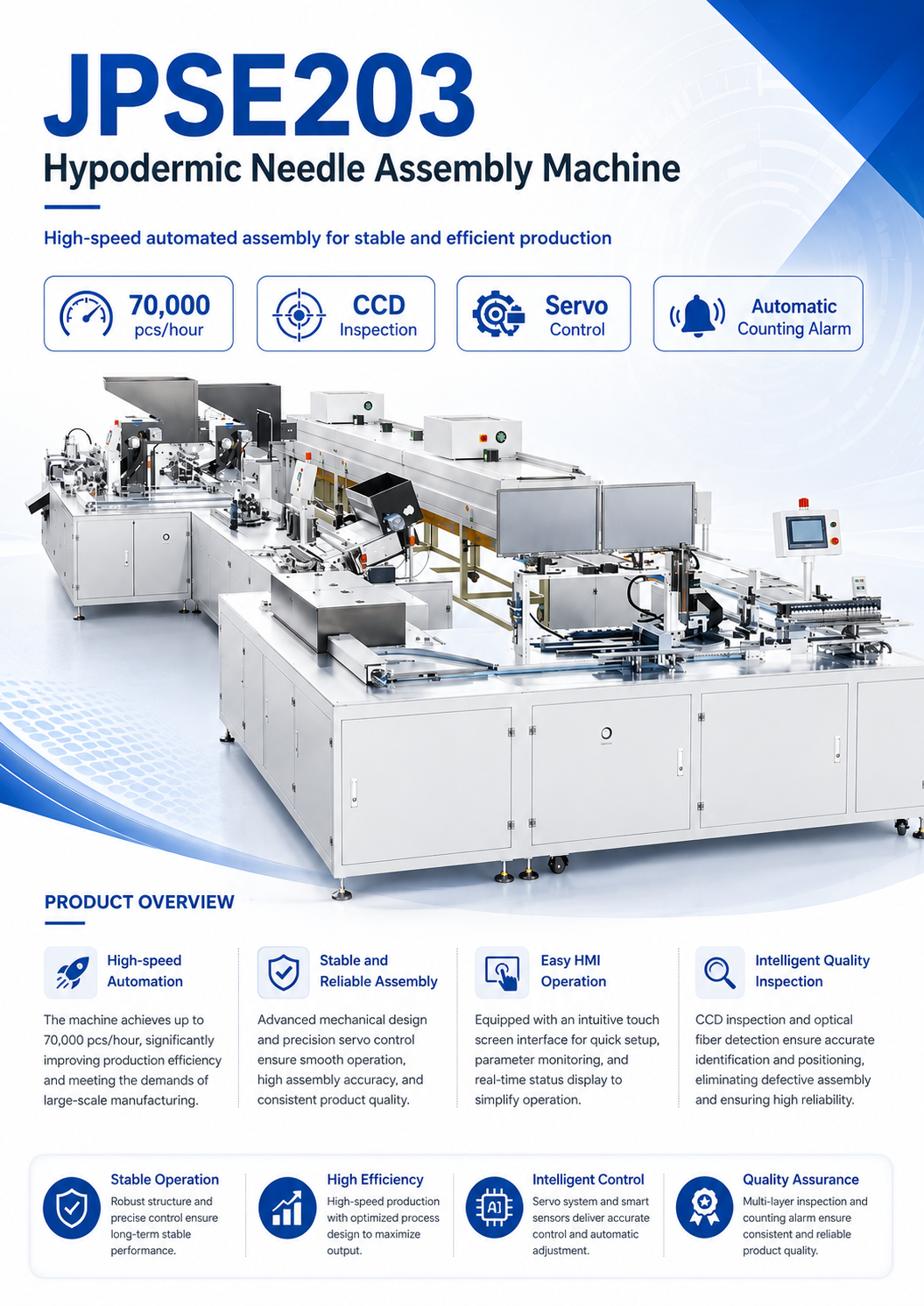

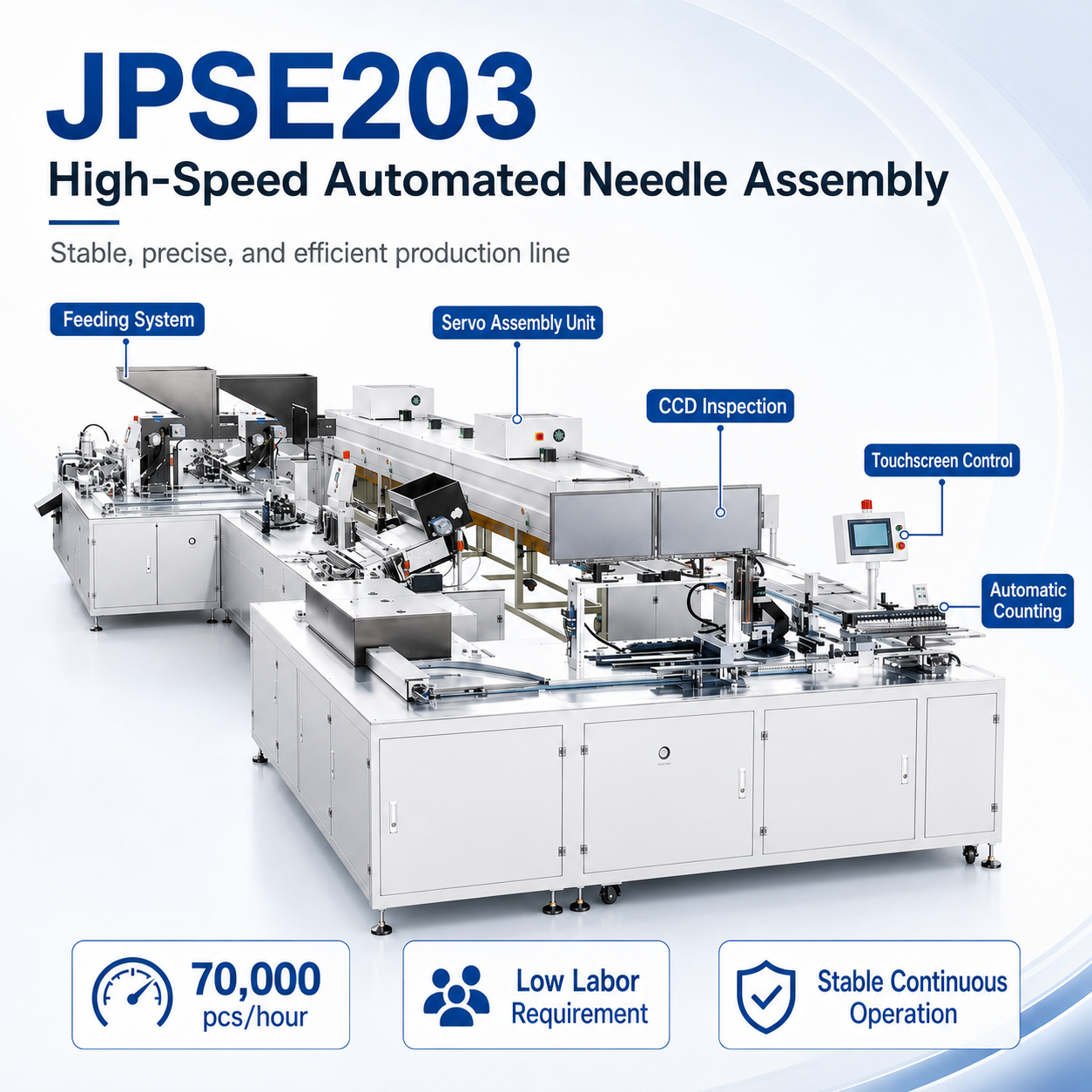

Hypodermic Needle Assembly Machine — JPSE203

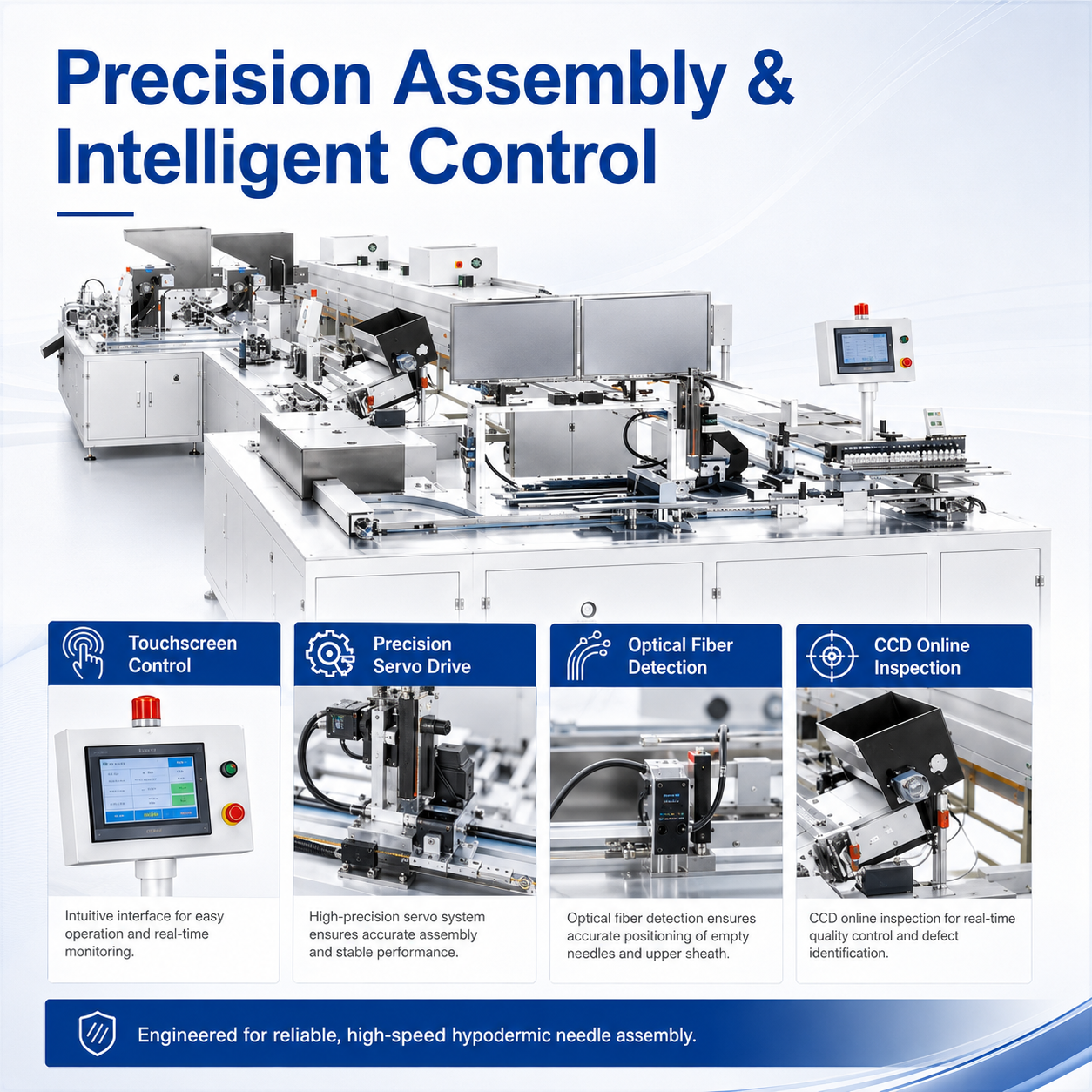

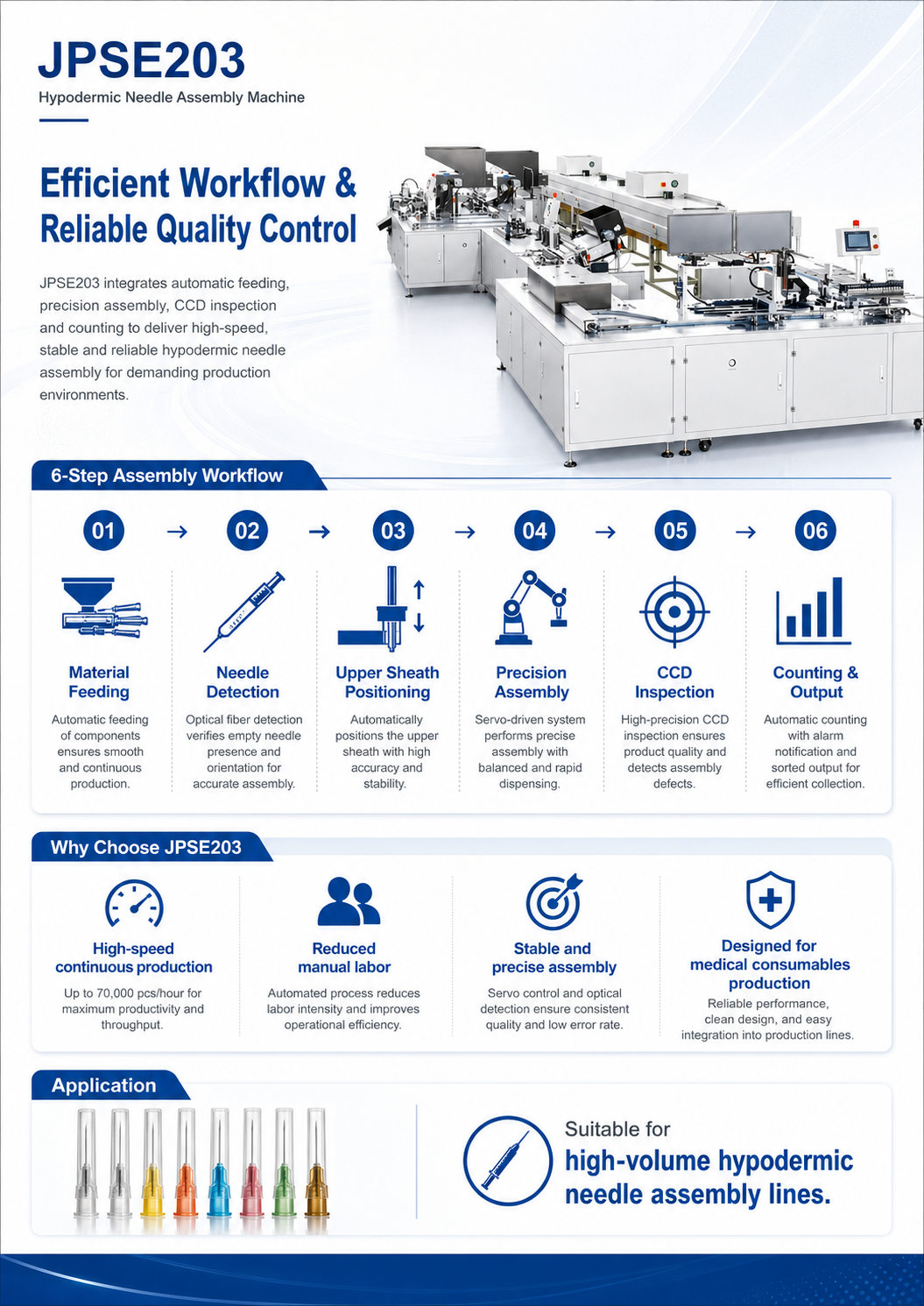

The JPSE203 hypodermic needle assembly machine automatically assembles hypodermic needles at up to 70,000 pcs/hour with a single operator. A precision servo system gives balanced, rapid dispensing; optical-fiber sensing detects empty needles and auto-positions the upper sheath; and a CCD vision system checks for inverted or empty needles inline. A counting alarm removes the need for manual counting.
MOQNegotiable
Lead Time15-30 days
CertificationCE / ISO 13485 / FDA
OEM / ODMAvailable
PaymentT/T, L/C
Loading PortShanghai, China
Factory Direct
Manufacturer pricing
OEM / ODM
Custom branding
Certified
CE / ISO / FDA
Global Logistics
100+ countries
After-Sales
Parts & support

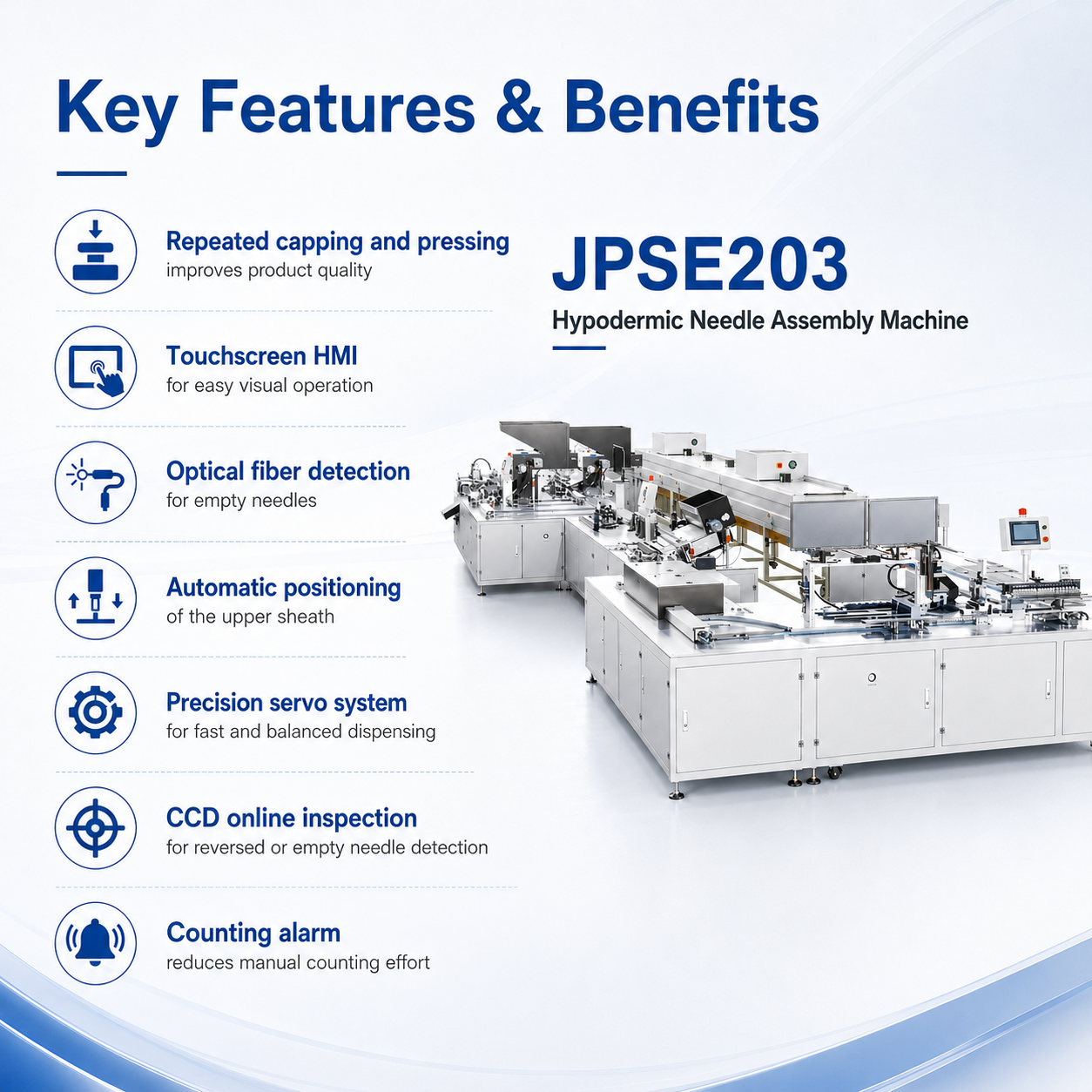

Key Highlights
- High output — Up to 70,000 pcs/hour.
- Servo precision — Balanced, rapid dispensing.
- Inline vision — CCD checks inverted/empty needles.
- Auto sheath & count — Fiber sensing + counting alarm.

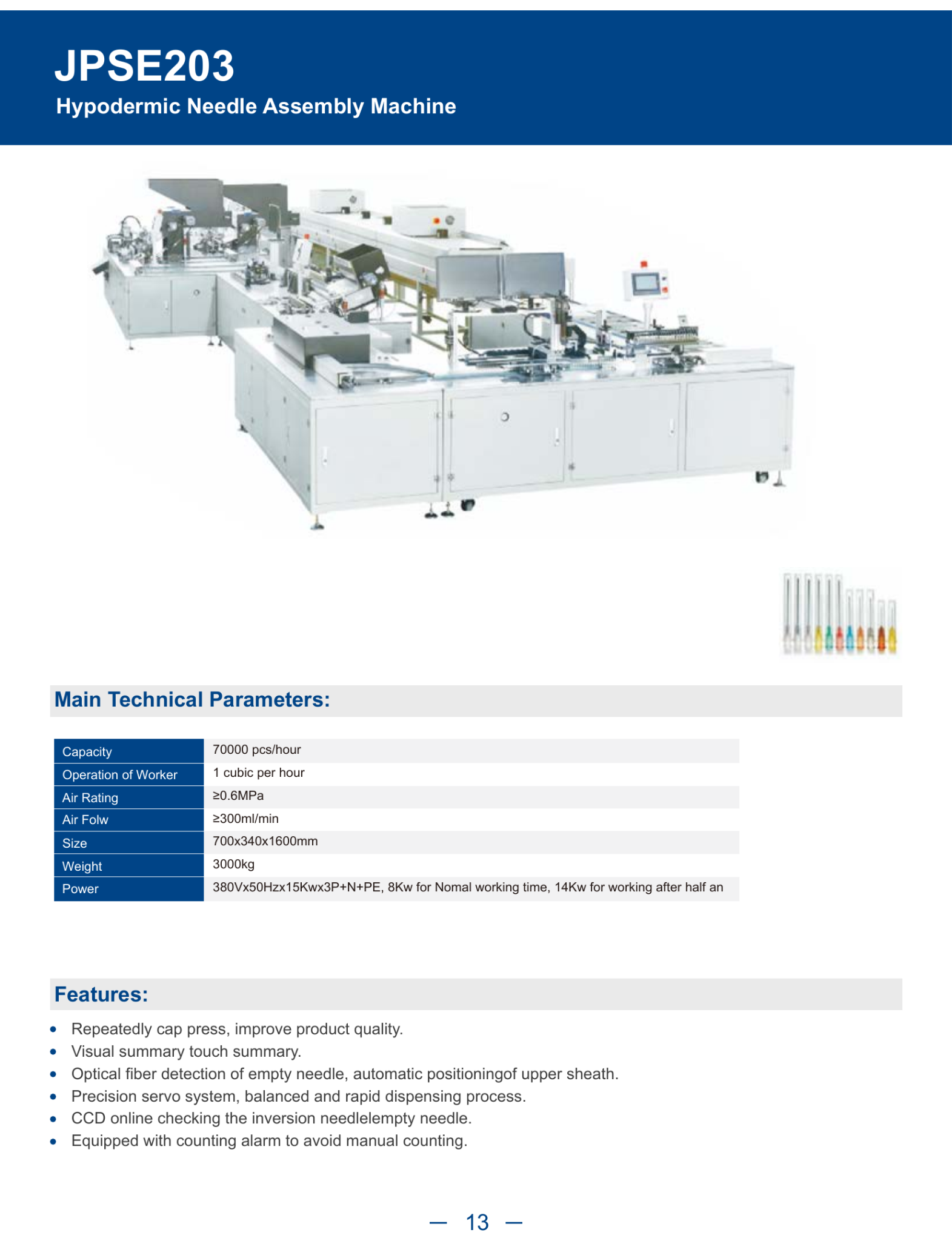

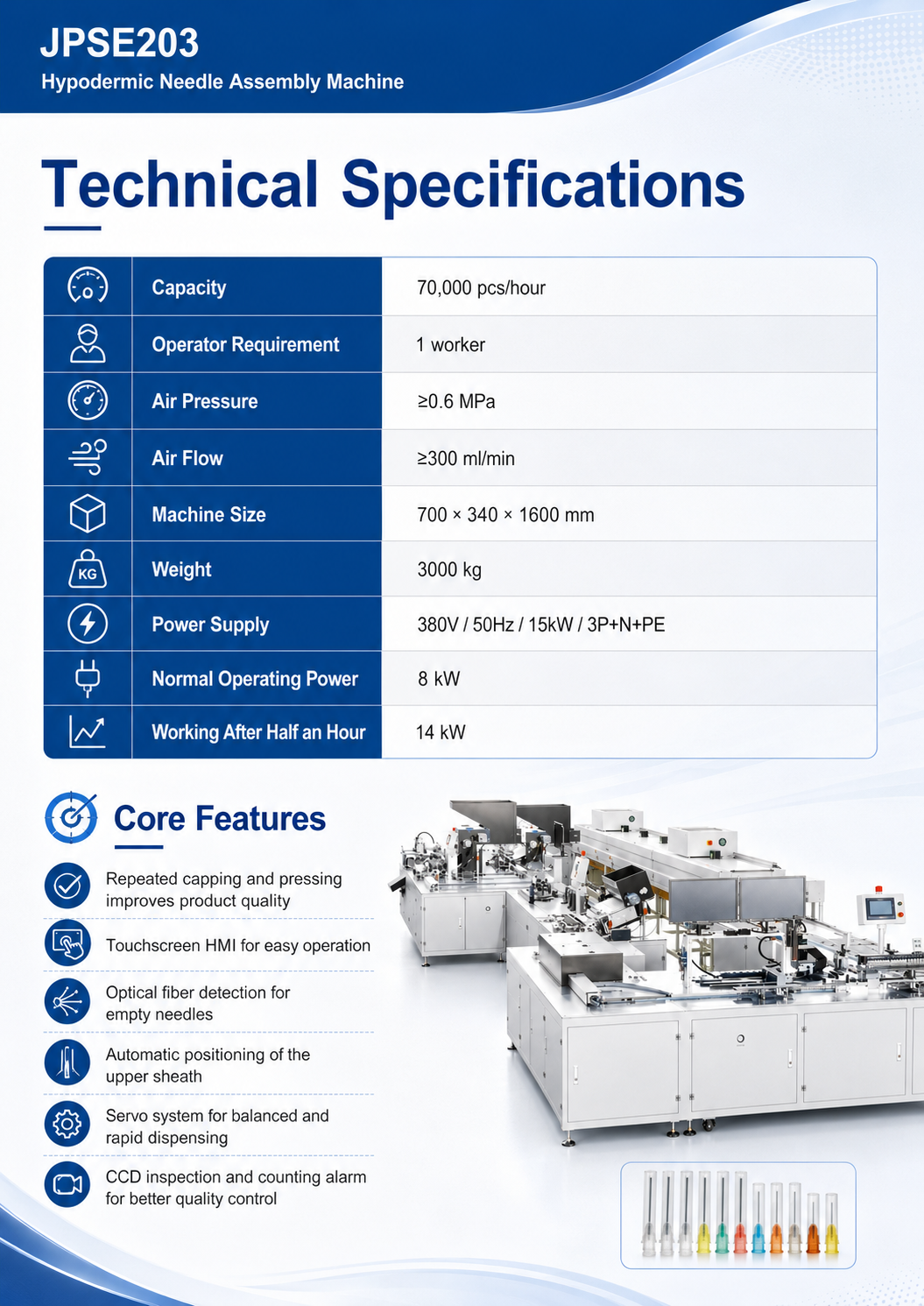

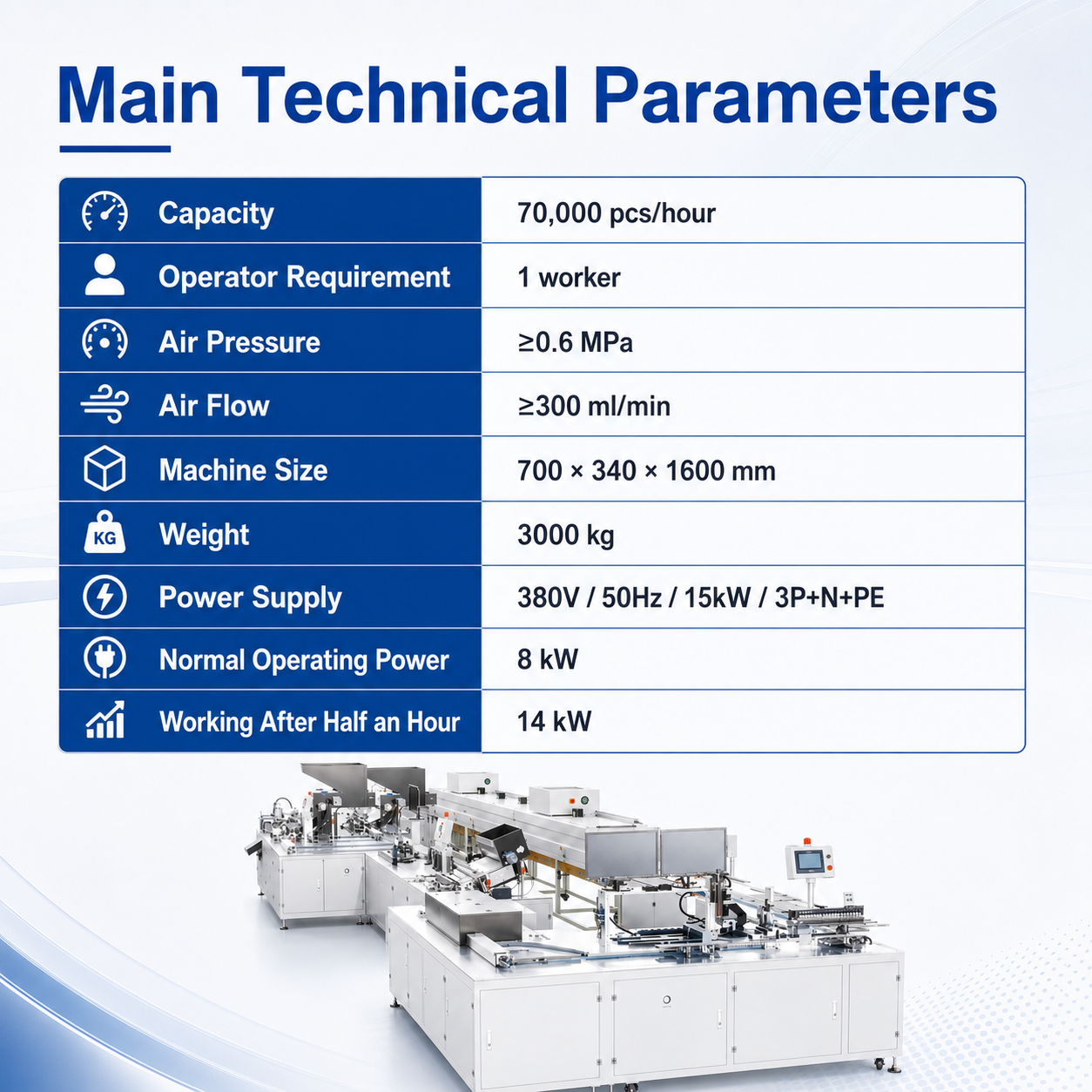

Standard Specifications
| Item | Specification |
|---|---|
| Code | JPSE203 |
| Capacity | 70,000 pcs/hour |
| Operators | 1 |
| Air pressure | ≥0.6 MPa |
| Air flow | ≥300 mL/min |
| Size | 700 × 340 × 1600 mm |
| Weight | 3000 kg |
| Power | 380 V/50 Hz/15 kW, 3P+N+PE (8 kW normal, 14 kW peak) |
Technical Parameters
| Parameter | Specification |
|---|---|
| Type | Hypodermic needle assembly machine |
| Capacity | 70,000 pcs/h |
| Power | 380 V / 15 kW |
Model: JPSE203 · Hypodermic needle assembly machine.
Product Details
Get a Quote for JPSE203_Hypodermic-Needle-Assembly-Machine
Share your target quantity and destination — our B2B team replies within one business day with pricing, lead time and OEM options.
