High-speed Medical Paper/film Pouch Making Machine (Digital Pressure) — JPSE100

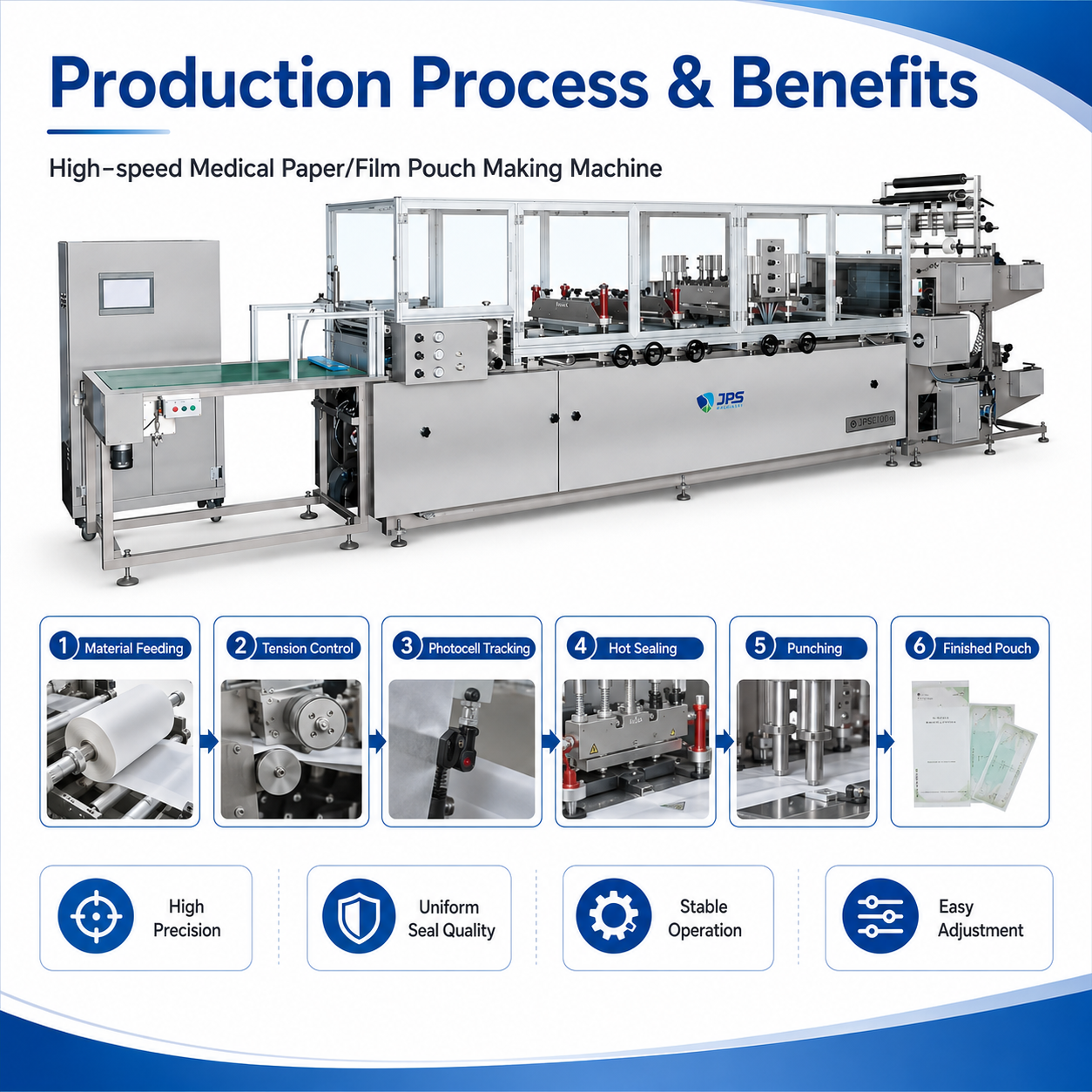

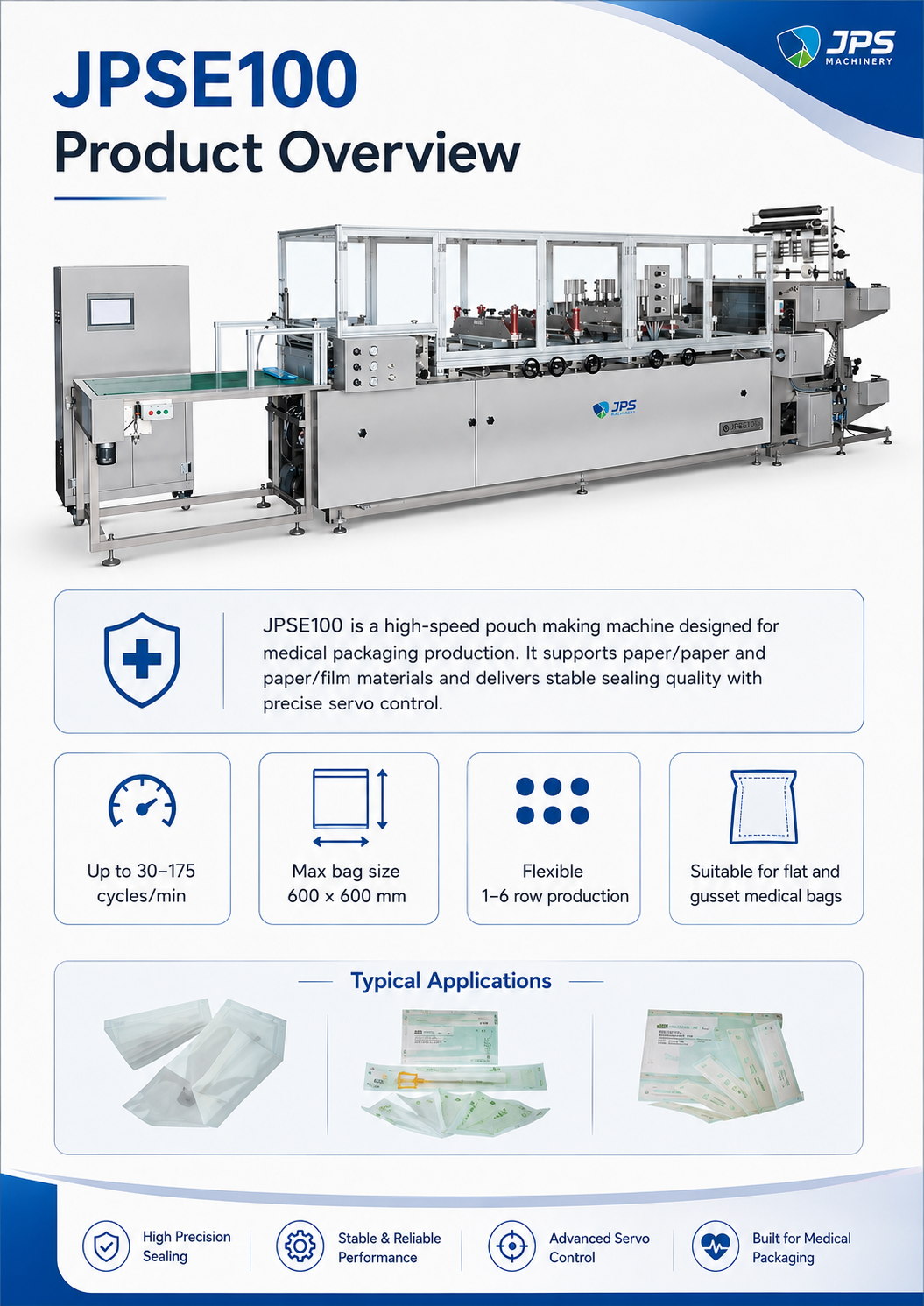

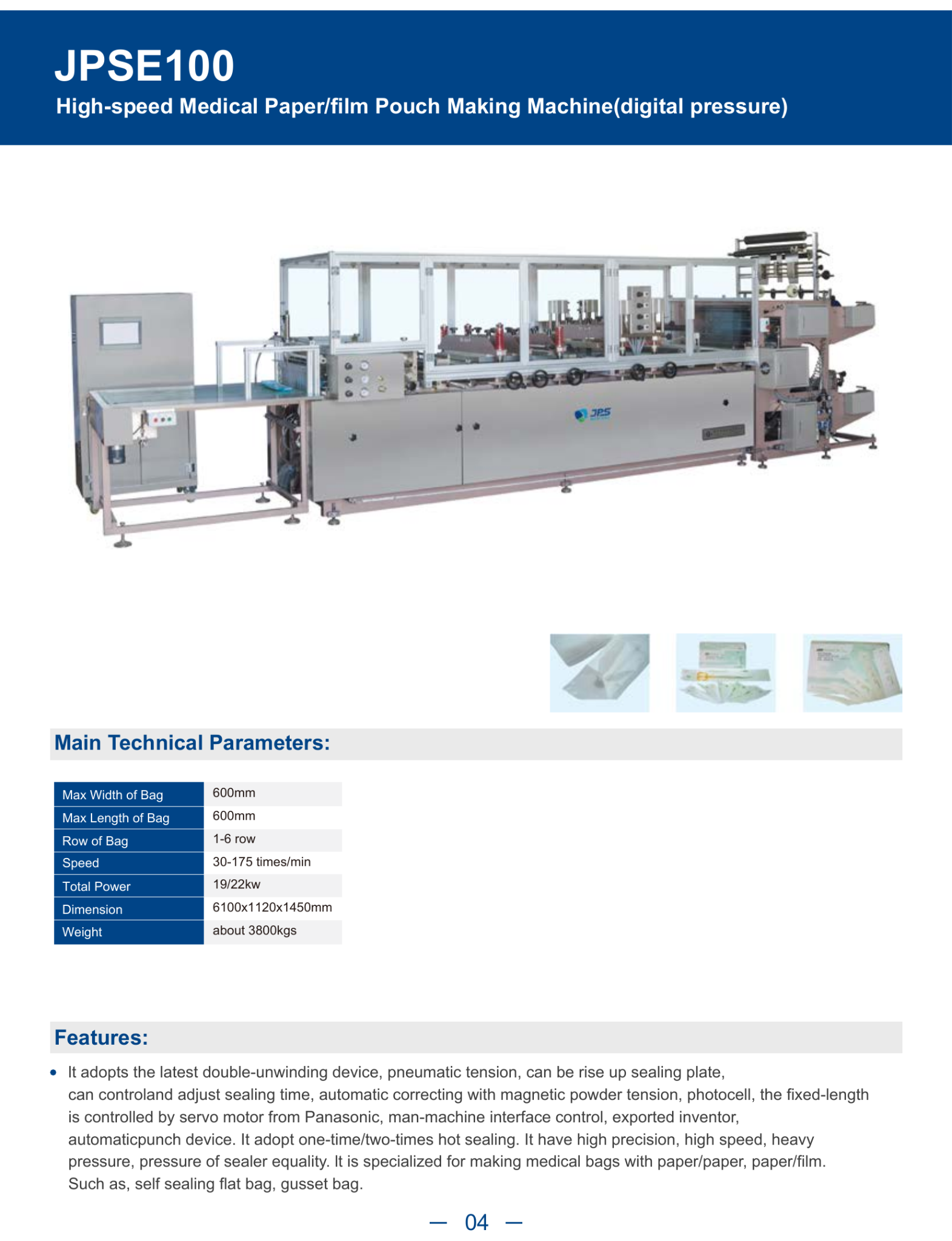

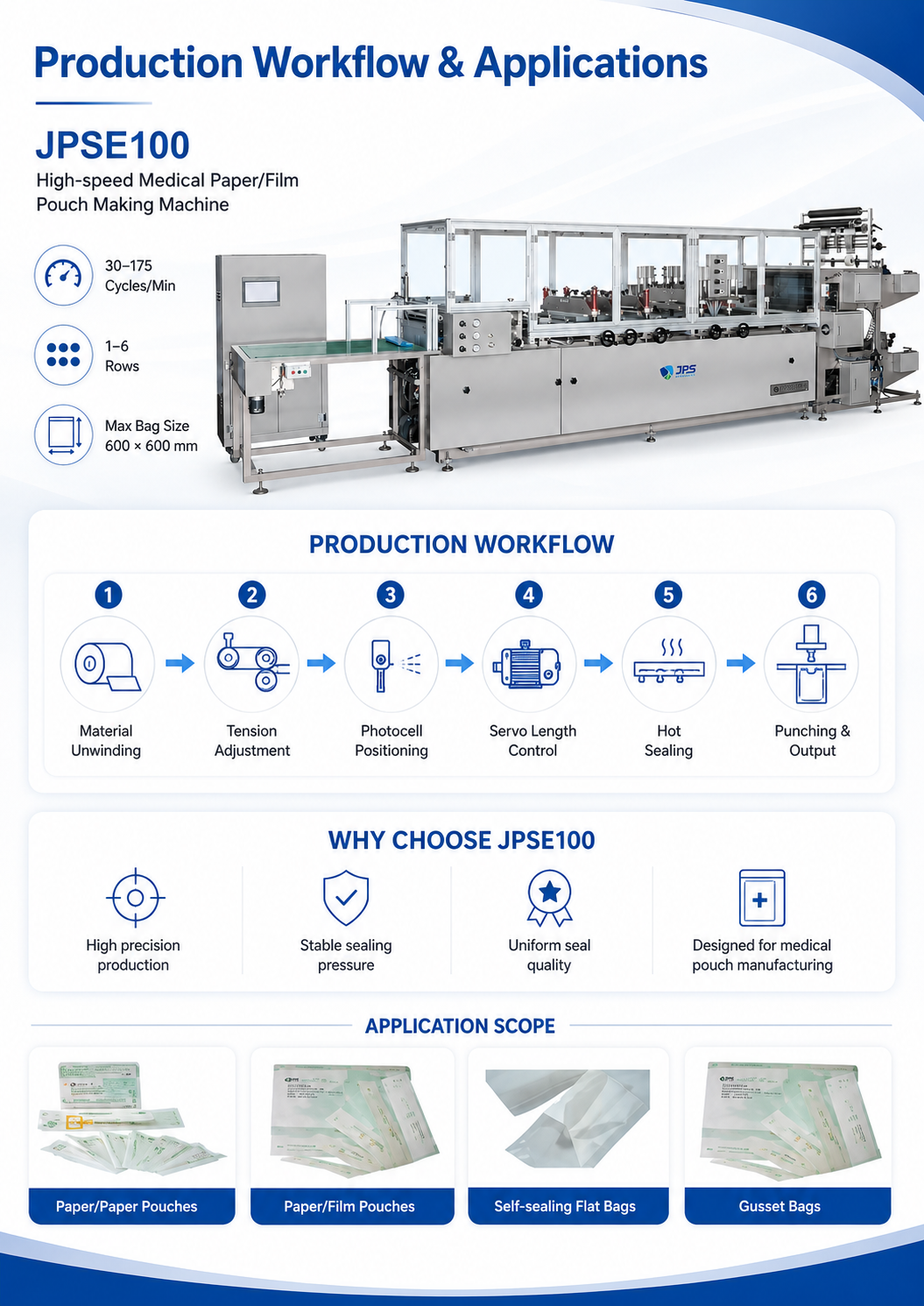

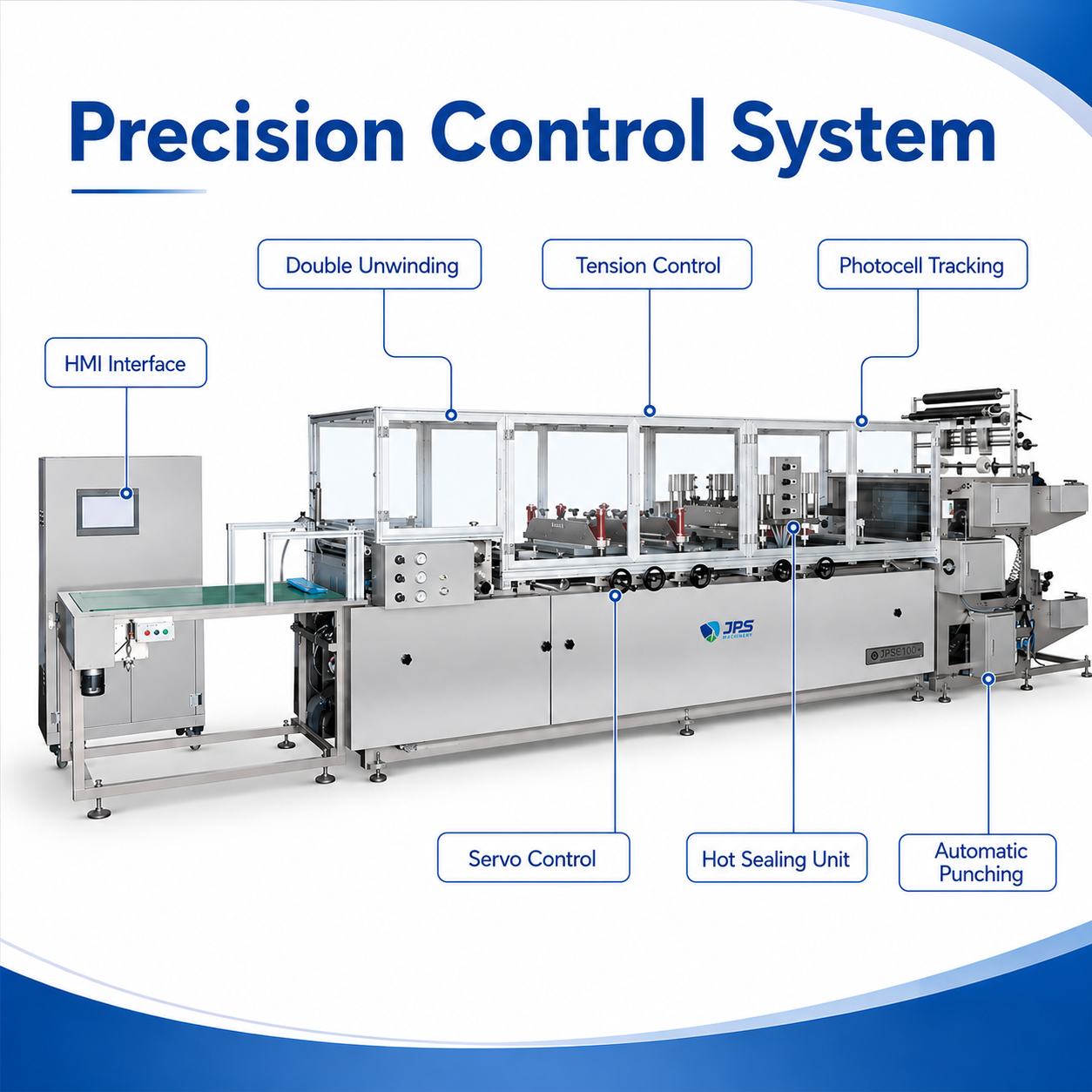

The JPSE100 high-speed pouch making machine produces medical paper/paper and paper/film sterilization bags — including self-sealing flat bags and gusseted bags — at up to 175 cycles/minute. A double-unwinding device with pneumatic tension, magnetic-powder tension auto-correction, photocell registration, and Panasonic servo fixed-length control deliver high precision and consistent sealing pressure. One- or two-pass hot sealing with digital pressure control and an automatic punch round out the package.
Factory Direct
Manufacturer pricing
OEM / ODM
Custom branding
Certified
CE / ISO / FDA
Global Logistics
100+ countries
After-Sales
Parts & support

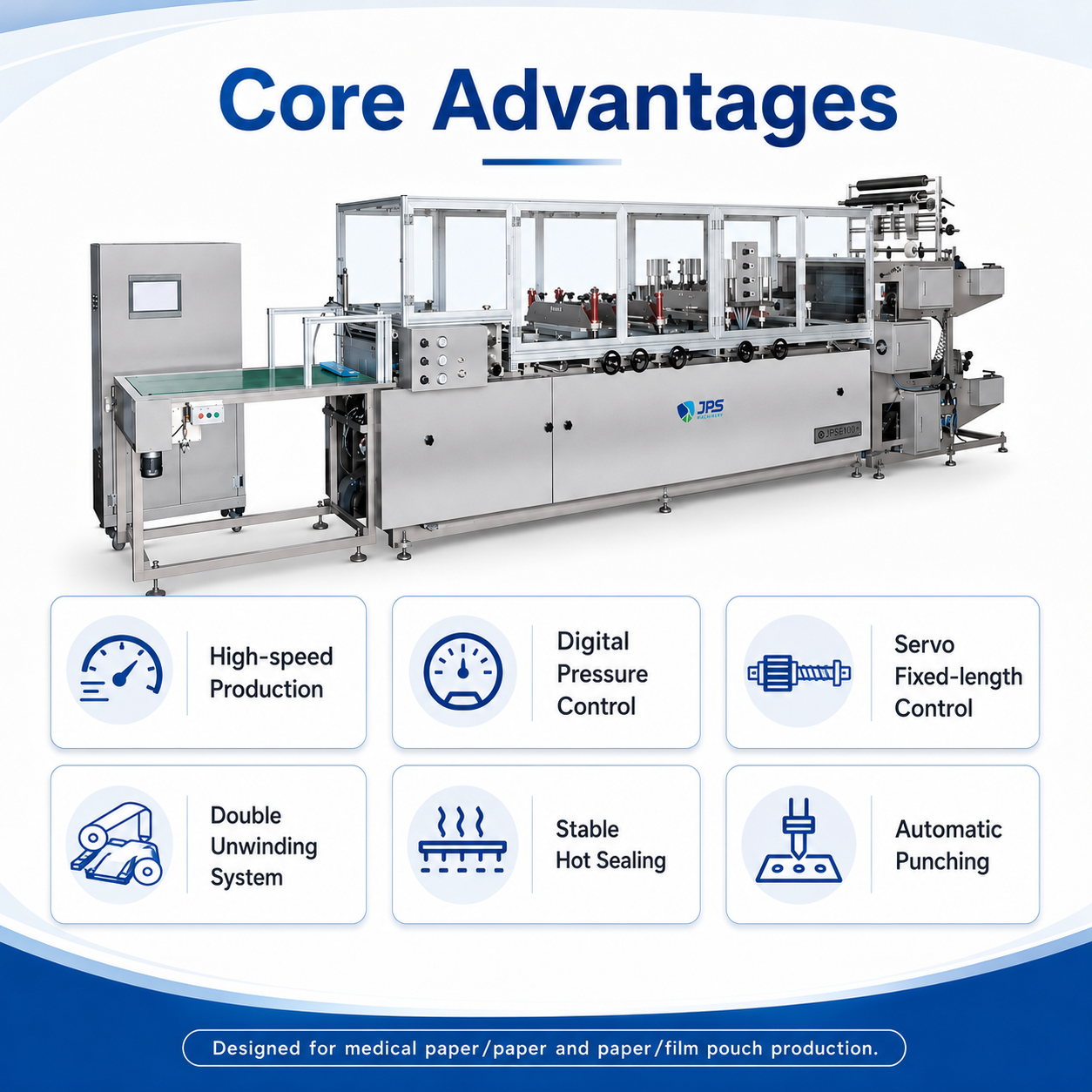

Key Highlights
- High speed — 30–175 cycles/min; up to 6 rows.
- Double unwinding — Pneumatic tension, auto-correction.
- Servo precision — Panasonic fixed-length, even seal pressure.

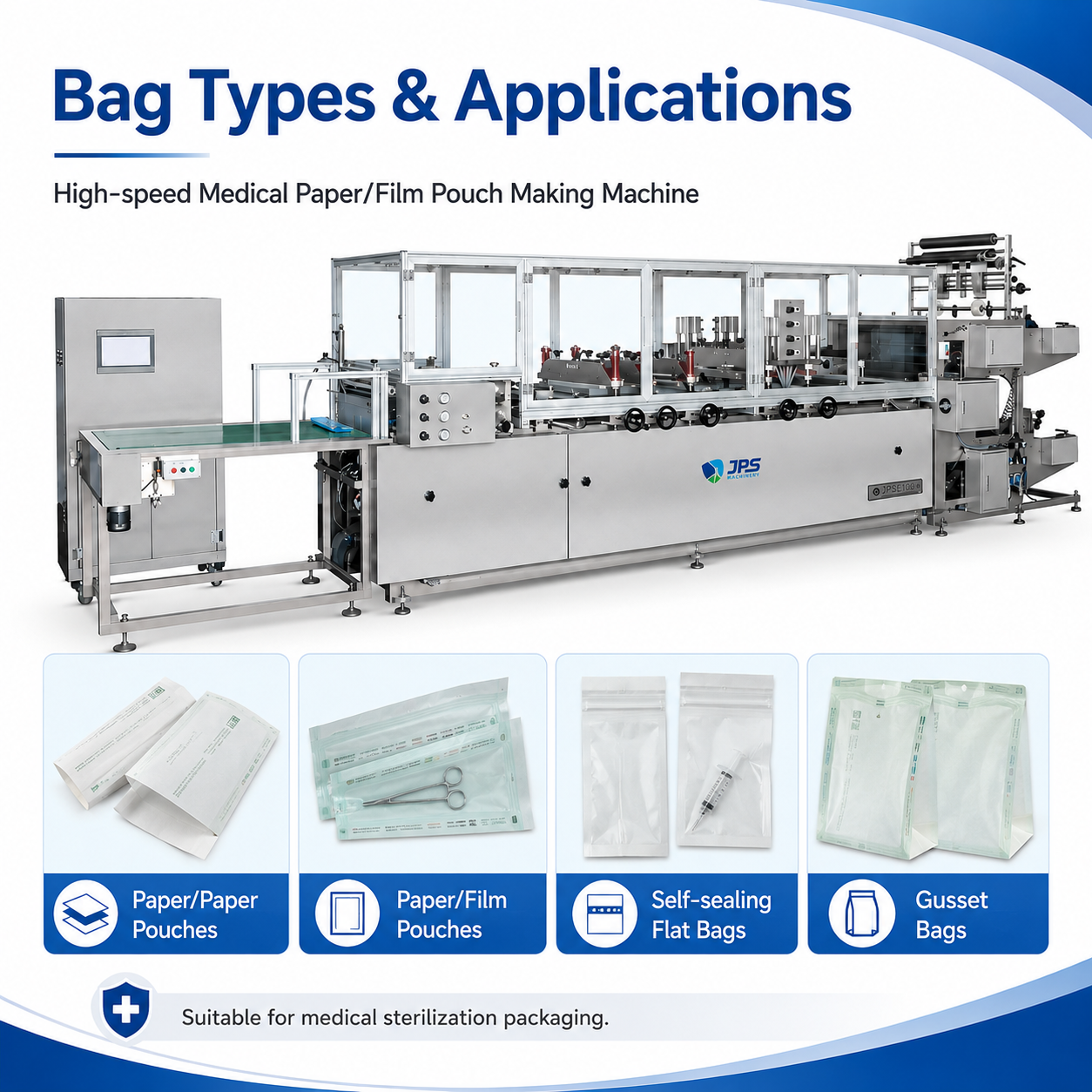

- Versatile bags — Self-sealing flat and gusseted, paper/paper or paper/film.

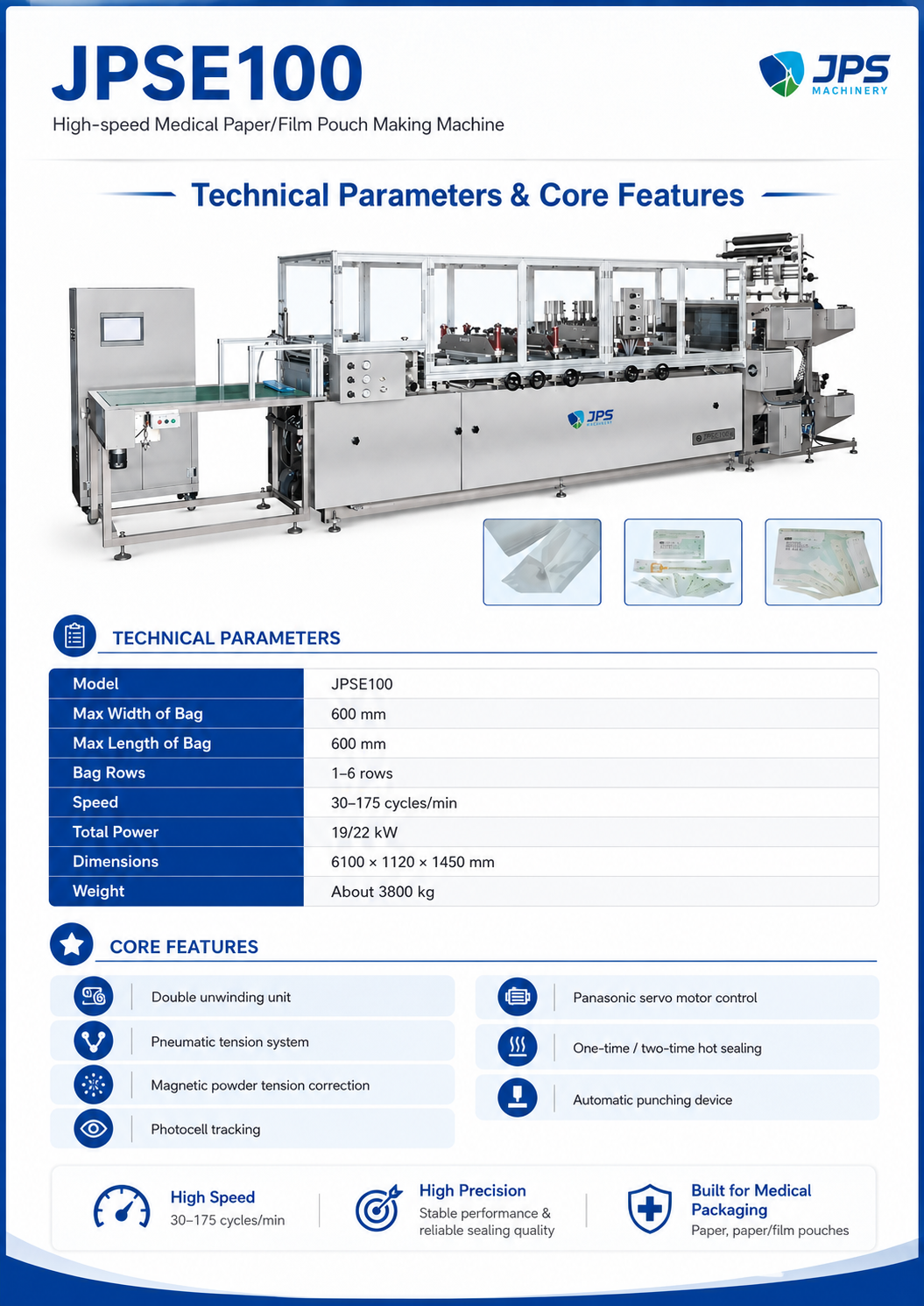

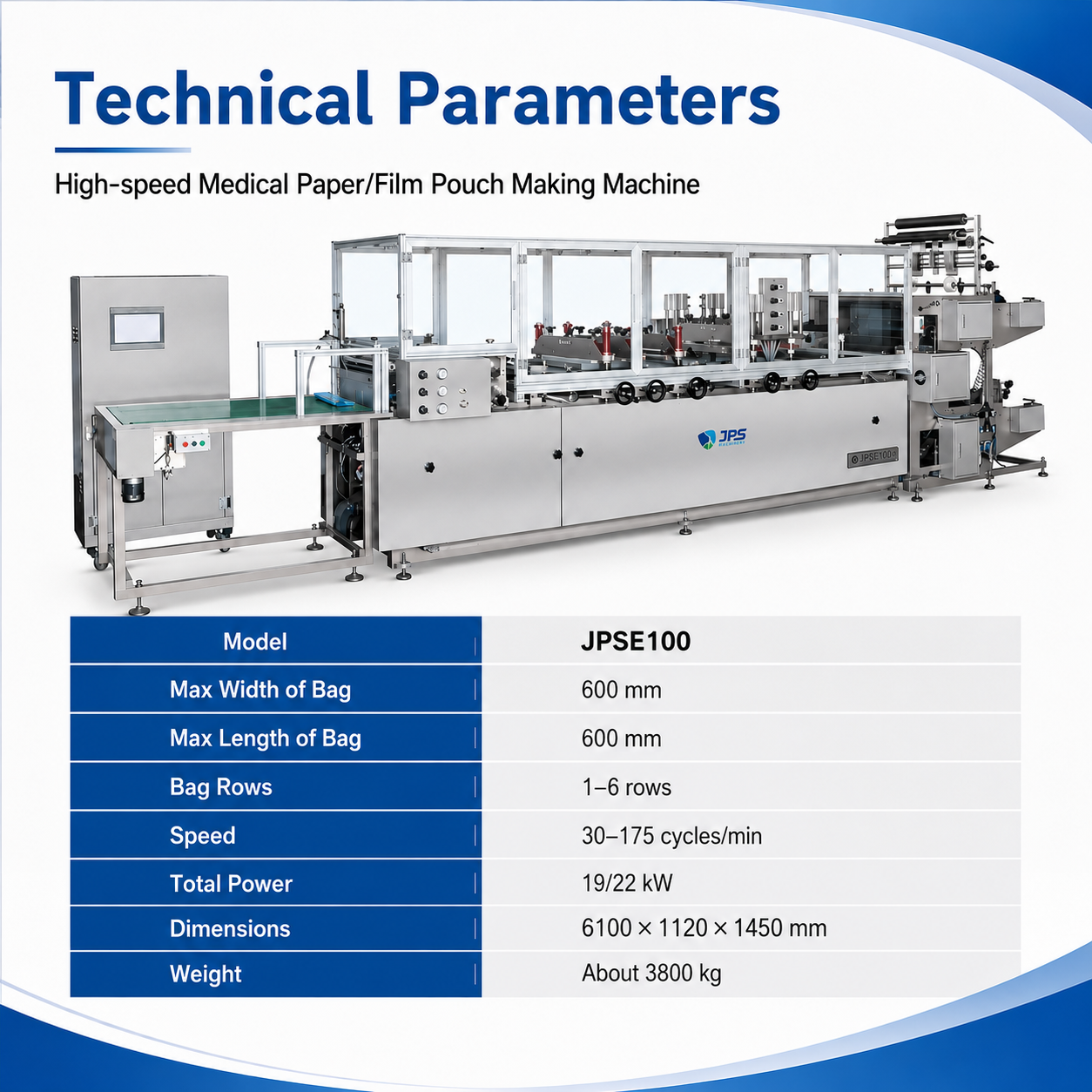

Standard Specifications
| Item | Specification |
|---|---|
| Code | JPSE100 |
| Max bag width | 600 mm |
| Max bag length | 600 mm |
| Rows | 1–6 |
| Speed | 30–175 times/min |
| Total power | 19 / 22 kW |
| Dimension | 6100 × 1120 × 1450 mm |
| Weight | ~3800 kg |
Technical Parameters
| Parameter | Specification |
|---|---|
| Type | Medical paper/film pouch making machine |
| Speed | 30–175 /min |
| Power | 19–22 kW |
Model: JPSE100 · High-speed medical paper/film pouch making machine.
