Medical Devices Package Bag Special Bag Making Machine

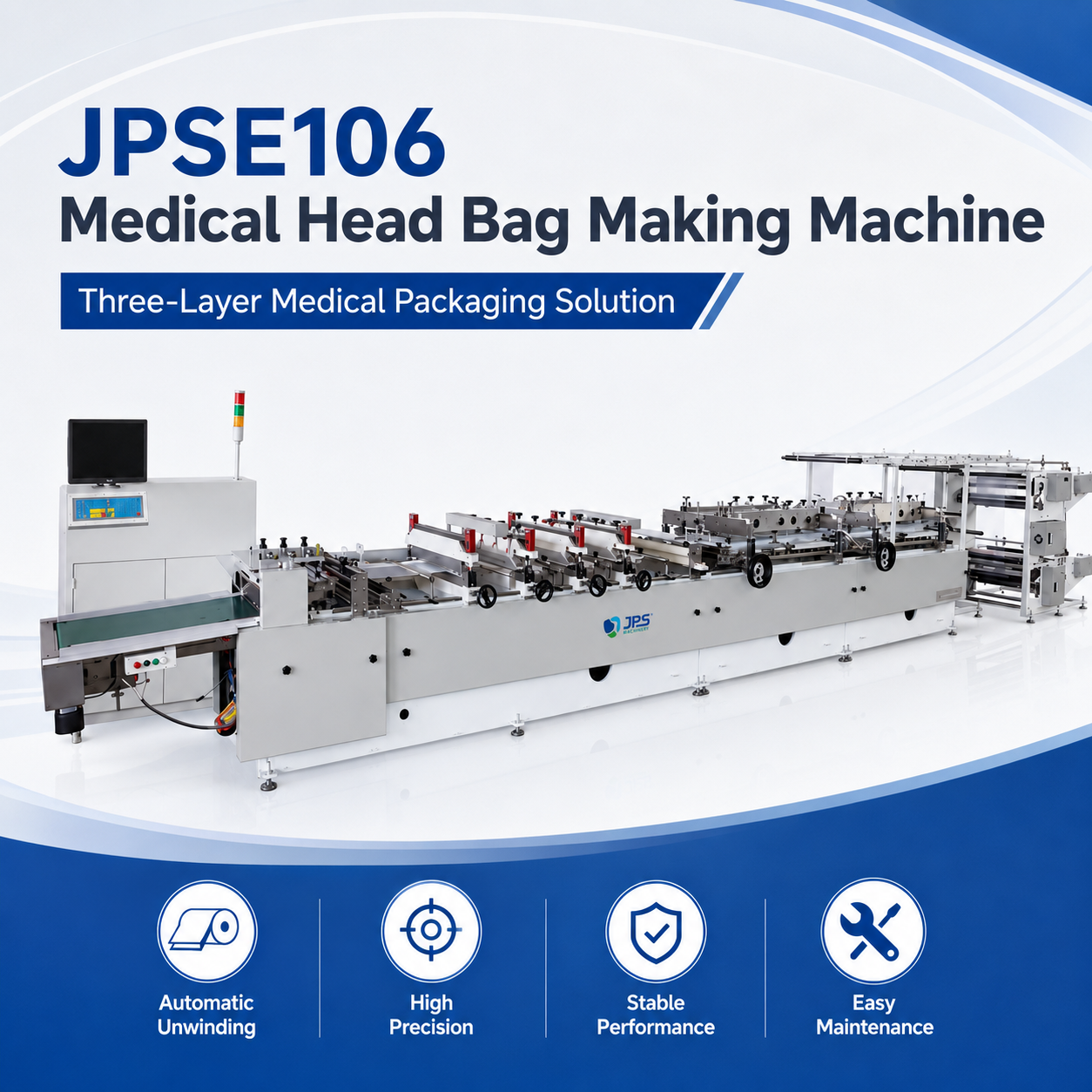

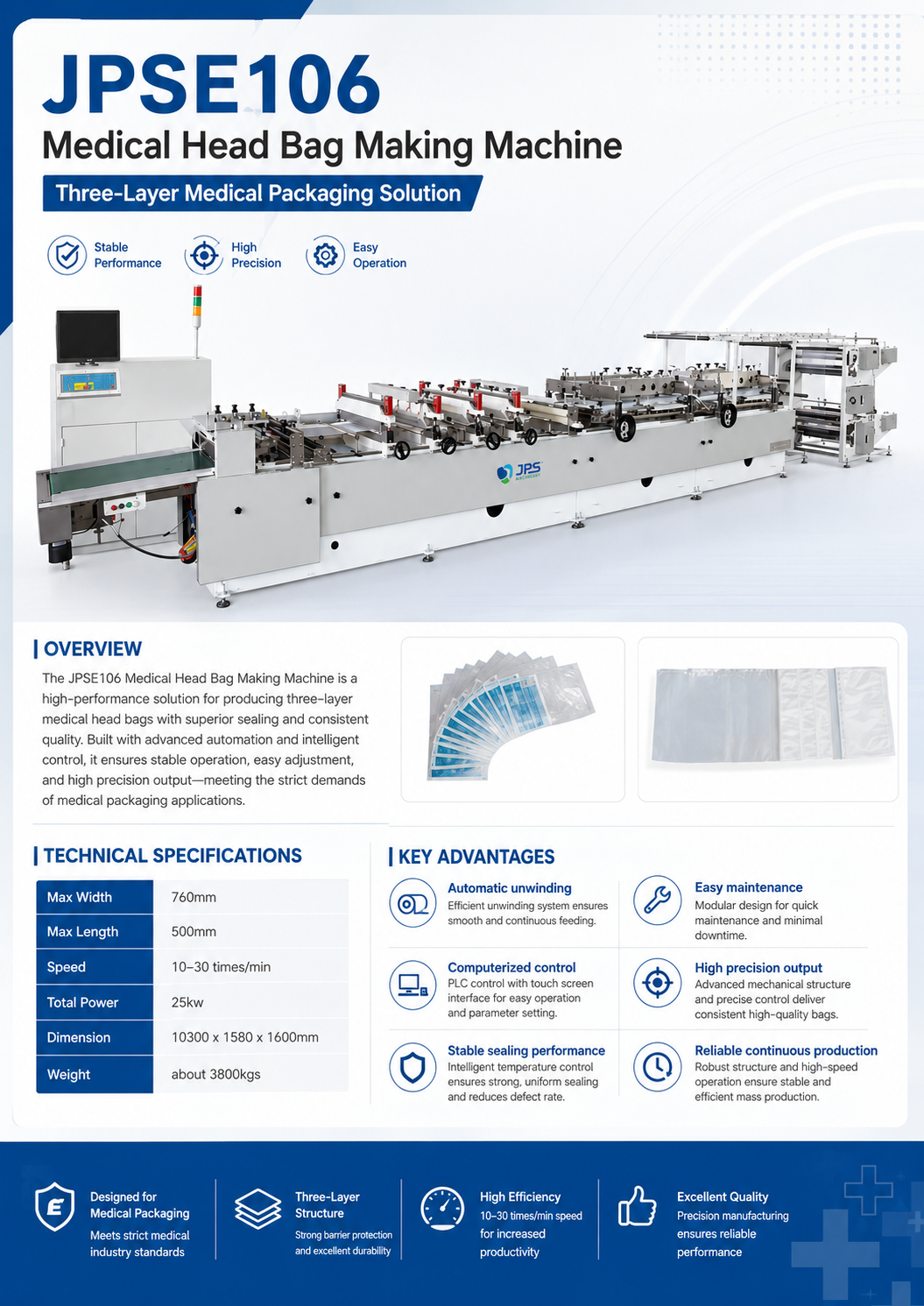

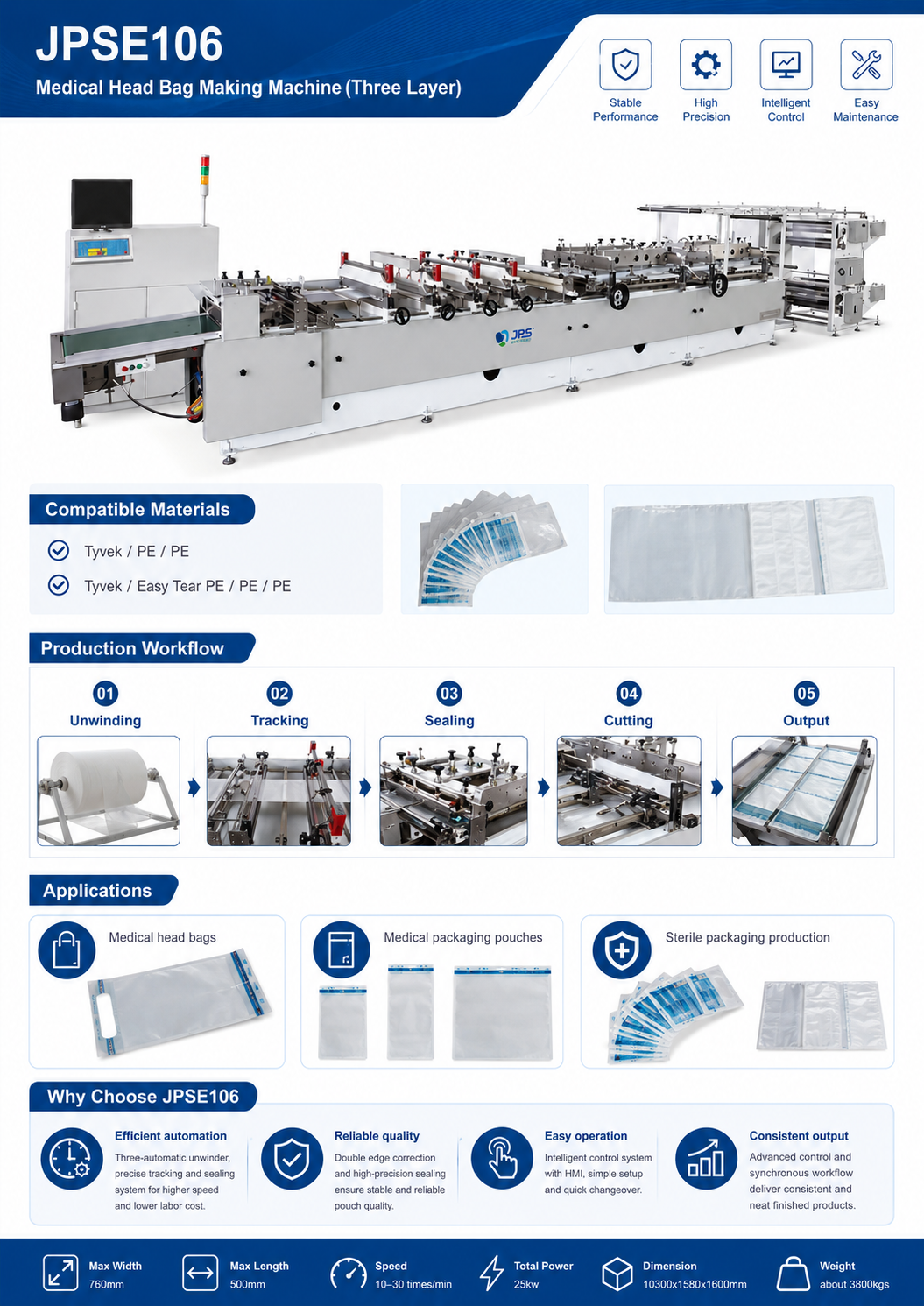

Medical Head Bag Making Machine (Three Layer) — JPSE106

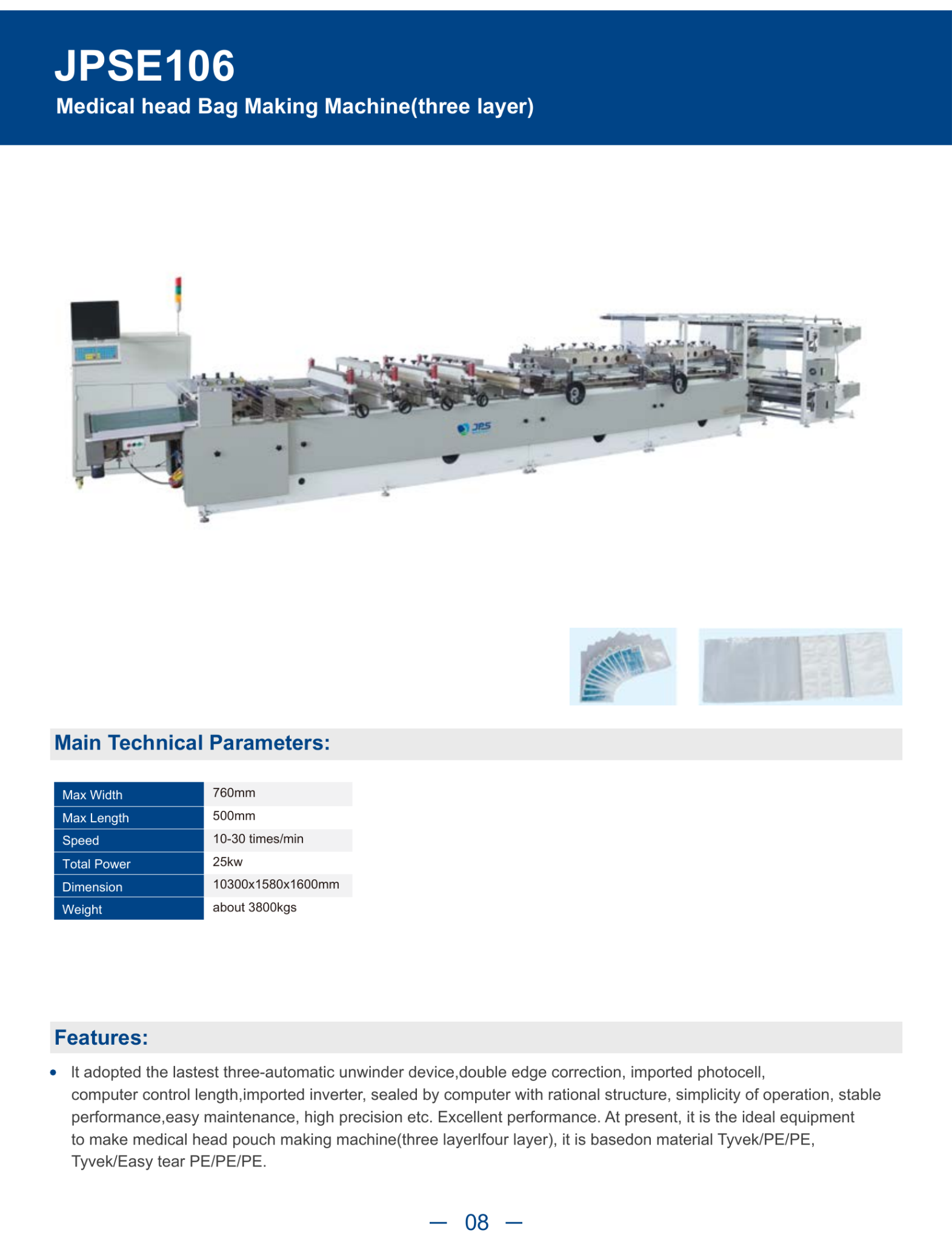

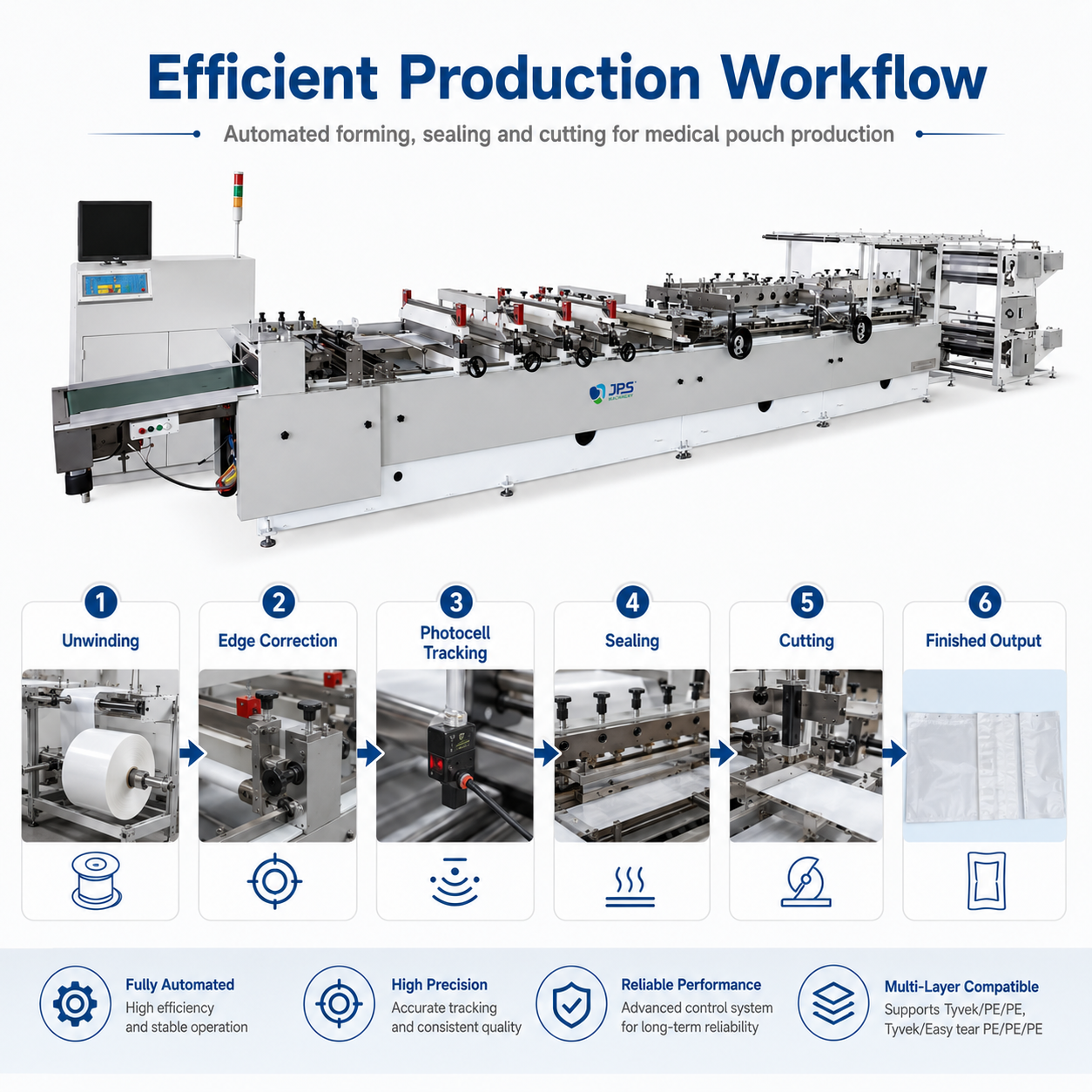

The JPSE106 makes three- and four-layer medical head pouches at 10–30 cycles/min, in widths to 760 mm. It uses the latest three-roll automatic unwinder with double edge correction, imported photocell, computer length control, and imported inverter. With a rational structure, simple operation, stable performance, and high precision, it is ideal for head pouches in Tyvek/PE/PE and Tyvek/Easy-tear-PE/PE/PE materials.
MOQNegotiable
Lead Time15-30 days
CertificationCE / ISO 13485 / FDA
OEM / ODMAvailable
PaymentT/T, L/C
Loading PortShanghai, China
Factory Direct
Manufacturer pricing
OEM / ODM
Custom branding
Certified
CE / ISO / FDA
Global Logistics
100+ countries
After-Sales
Parts & support

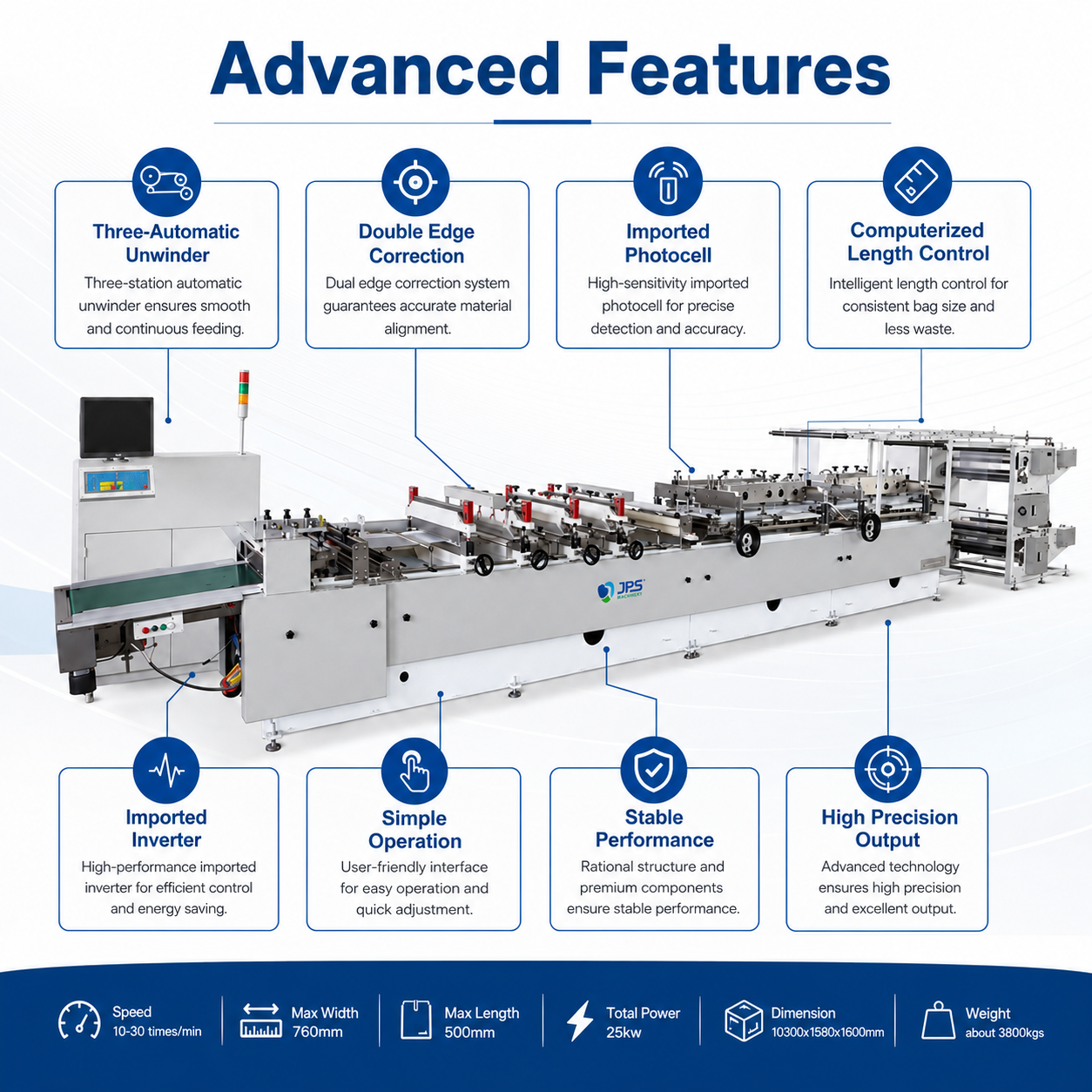

Key Highlights
- Multi-layer — Three- and four-layer head pouches.
- Triple unwinder — Double edge correction, imported photocell.
- Computer control — Length control + imported inverter.

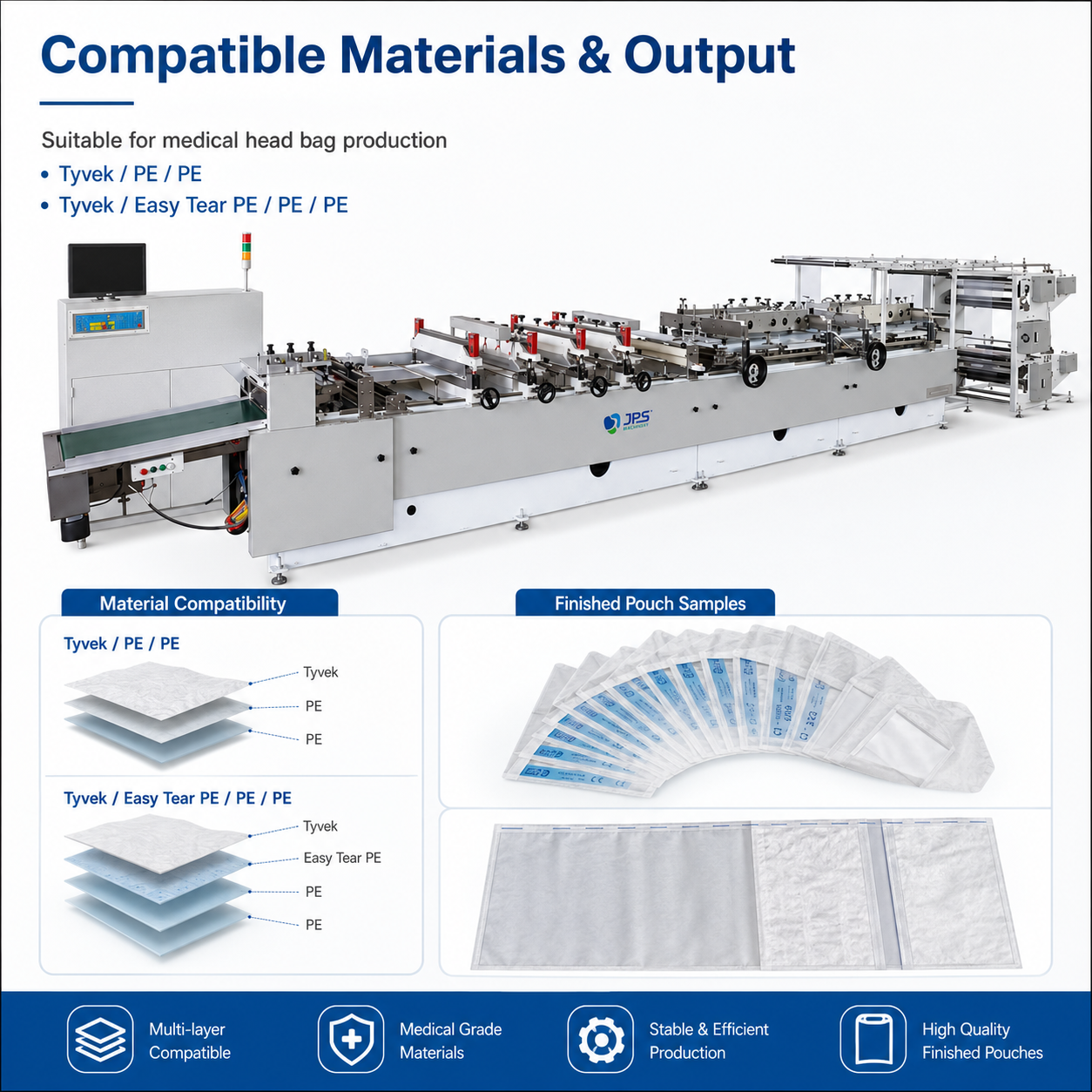

- Material range — Tyvek/PE/PE, Tyvek/Easy-tear-PE.

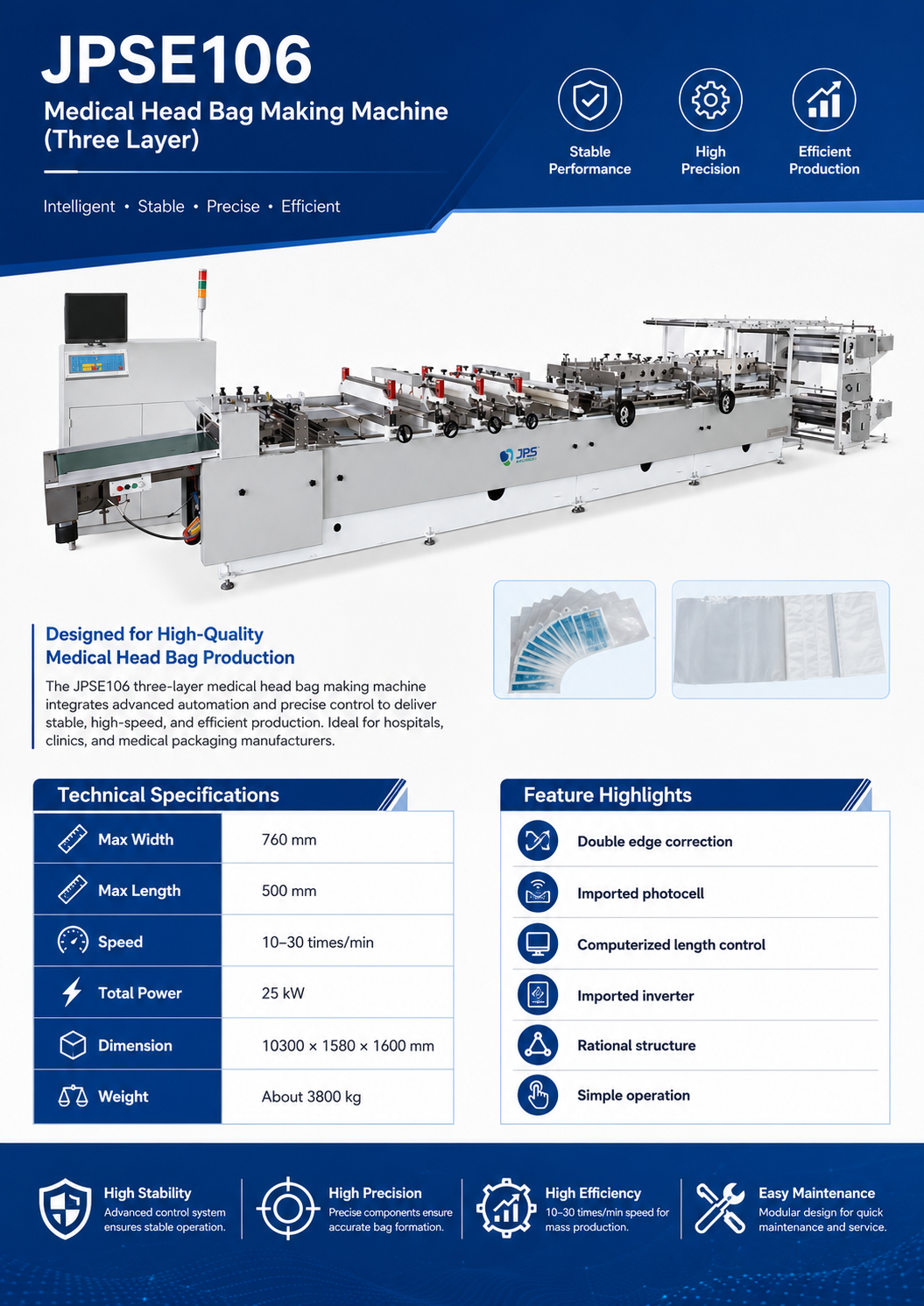

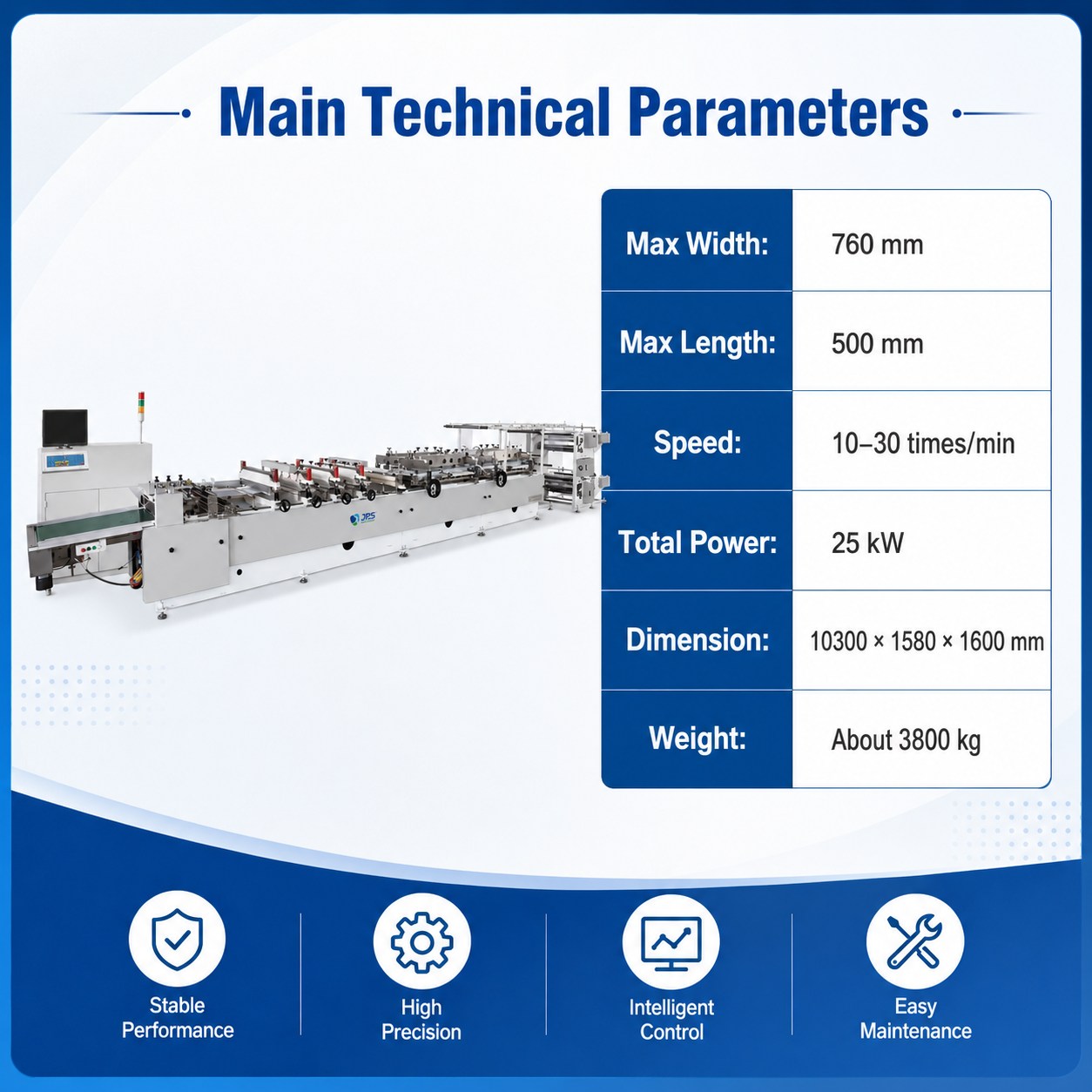

Standard Specifications
| Item | Specification |
|---|---|
| Code | JPSE106 |
| Max width | 760 mm |
| Max length | 500 mm |
| Speed | 10–30 times/min |
| Total power | 25 kW |
| Dimension | 10300 × 1580 × 1600 mm |
| Weight | ~3800 kg |
Technical Parameters
| Parameter | Specification |
|---|---|
| Type | Medical head bag making machine |
| Speed | 10–30 /min |
| Power | 25 kW |
Model: JPSE106 · Medical head bag making machine (three layer).
Product Details
Get a Quote for JPSE106_Medical-Head-Bag-Making-Machine
Share your target quantity and destination — our B2B team replies within one business day with pricing, lead time and OEM options.
