Full-automatic High-speed Medical Middle Sealing Bag-Making Machine — JPSE107/108

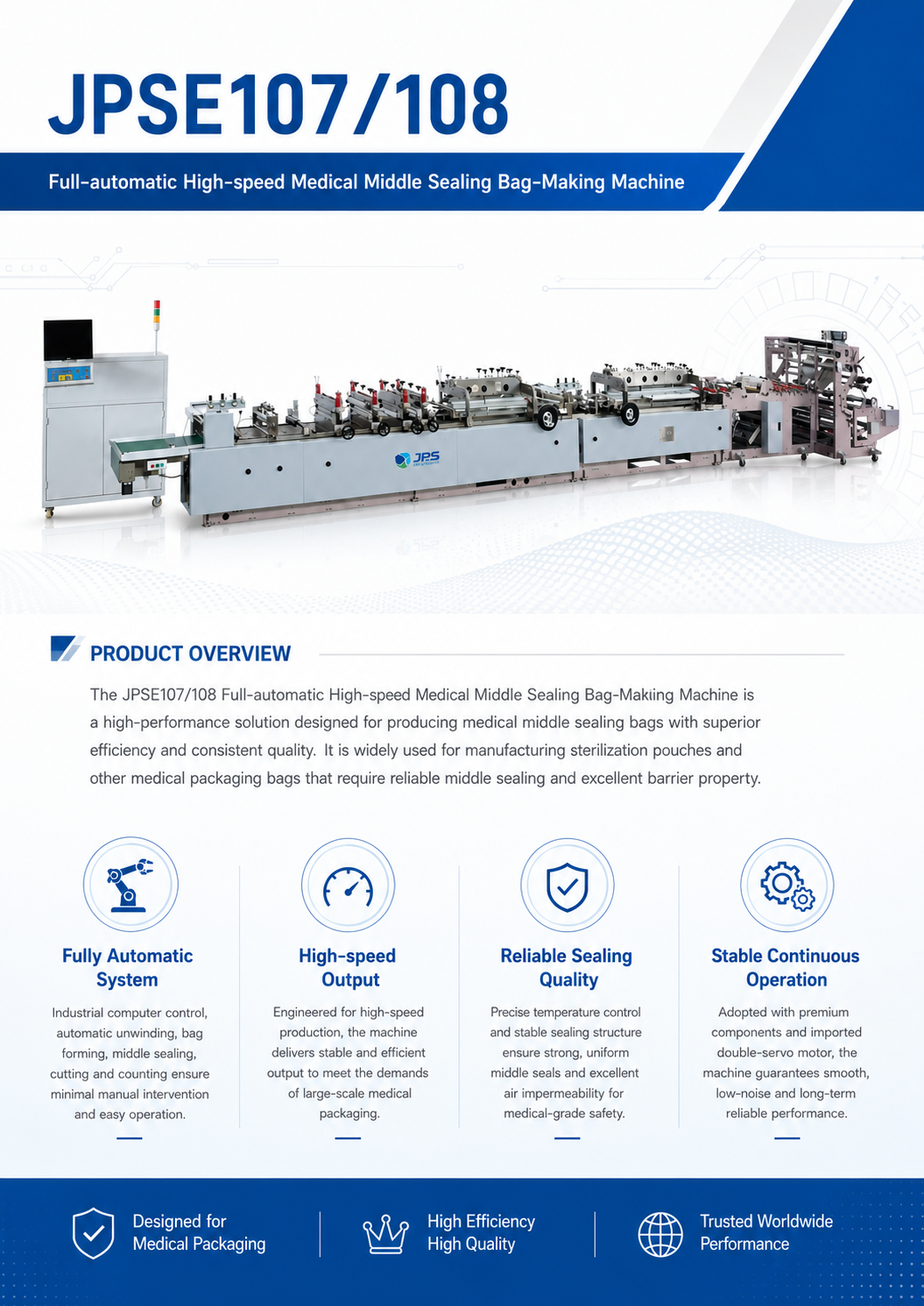

The JPSE107/108 makes center-sealed medical bags — mid-sealed bags, mid-sealed foldable bags, center-sealing EO-gas strips, and middle-breath sterilization pouches. Driven by an imported double-servo motor with industrial computer control, screen display, synchronous photoelectric length correction, and two frequency governors, it offers adjustable border material, automatic unwinding, and automatic batch output with high precision and stable performance.
Factory Direct
Manufacturer pricing
OEM / ODM
Custom branding
Certified
CE / ISO / FDA
Global Logistics
100+ countries
After-Sales
Parts & support
Key Highlights

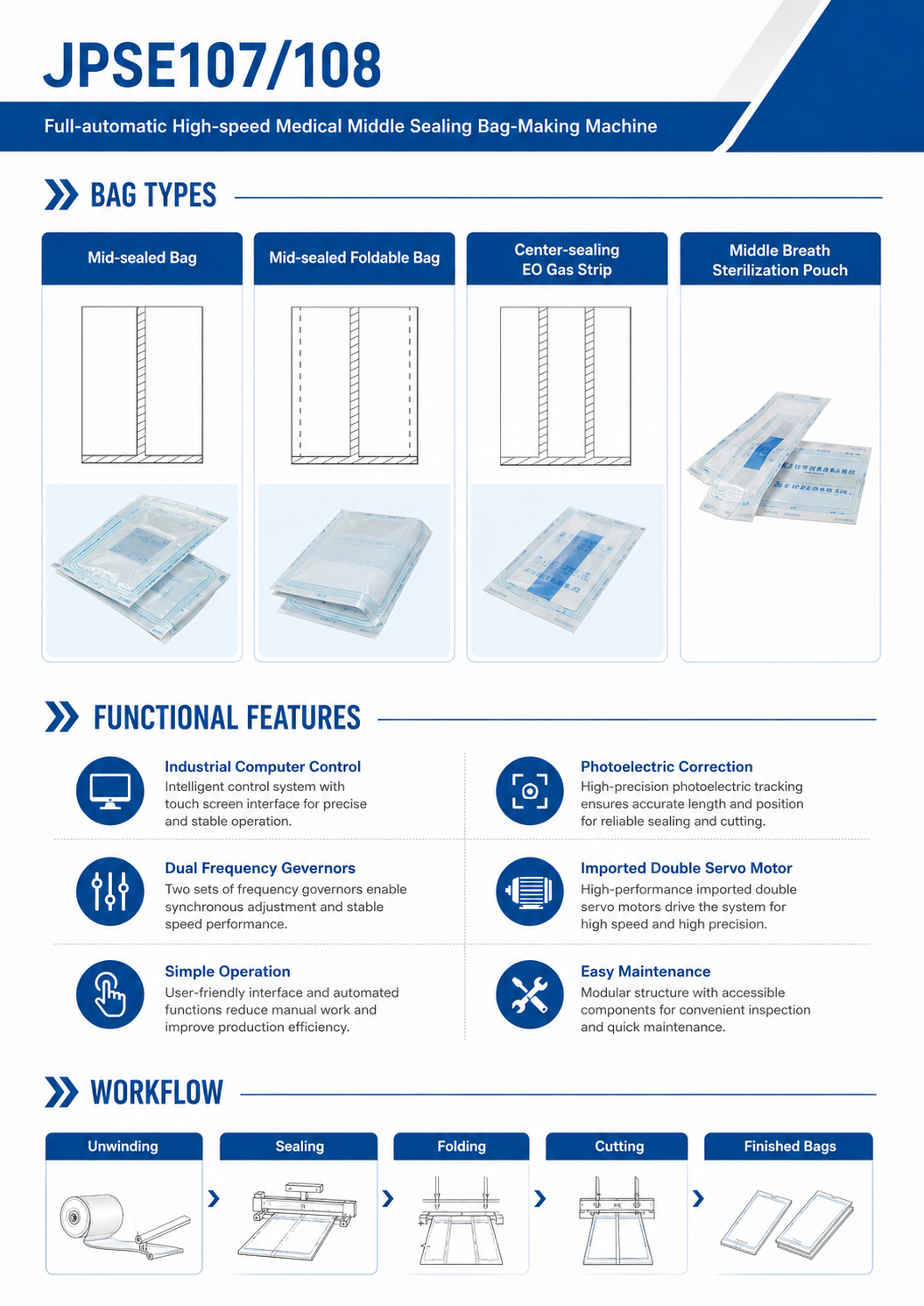

- Center-sealed bags — Mid-sealed, foldable, EO-gas strip, breathable pouches.
- Double servo — Imported double-servo drive, two frequency governors.
- Computer control — Screen display, synchronous photoelectric correction.
- Auto unwind & batch — Adjustable border, automatic batch output.
Standard Specifications
| Item | JPSE107 | JPSE108 |
|---|---|---|
| Width (flat / gusset) | 60–400 / 60–360 mm | 60–800 / 60–560 mm |
| Max length | 600 mm (skip sealing) | 600 mm (skip sealing) |
| Speed | 25–150 section/min | 10–150 section/min |
| Power | 30 kW, 3-phase 4-wire | 30 kW, 3-phase 4-wire |
| Overall size | 9600 × 1500 × 1700 mm | 9600 × 1700 × 1700 mm |
| Weight | ~3700 kg | ~4800 kg |
Technical Parameters
| Parameter | Specification |
|---|---|
| Type | Medical middle-sealing bag making machine |
| Speed | 10–150 section/min |
| Power | 30 kW |
Model: JPSE107/108 · Full-automatic high-speed medical middle sealing bag-making machine.
Product Details
Get a Quote for JPSE107-108_Full-automatic-High-speed-Medical-Middle-Sealing-Bag-Making-Machine
Share your target quantity and destination — our B2B team replies within one business day with pricing, lead time and OEM options.
