Wet Wipes Production Machine

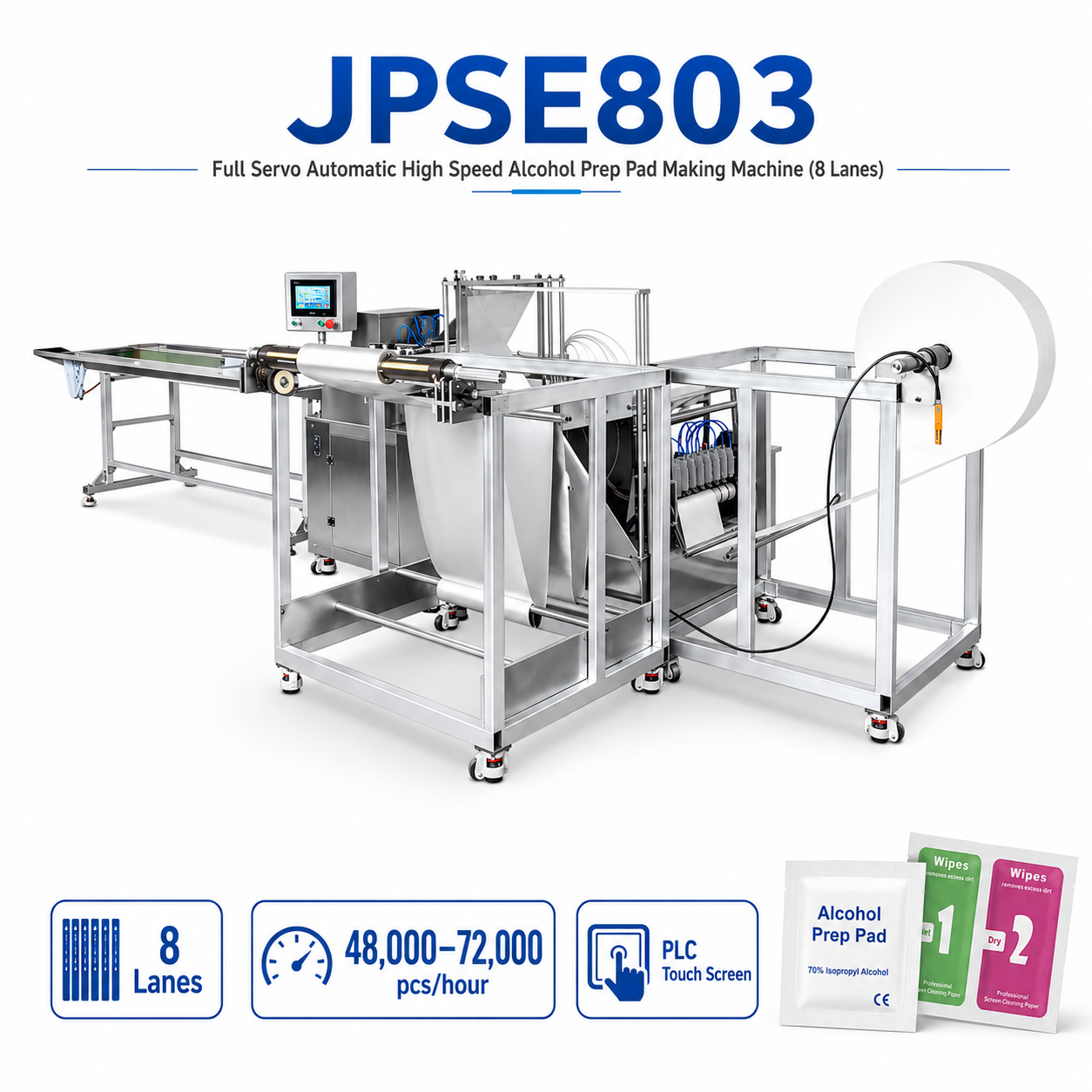

Full Servo Automatic High Speed Alcohol Prep Pad Making Machine (8 lanes) — JPSE803

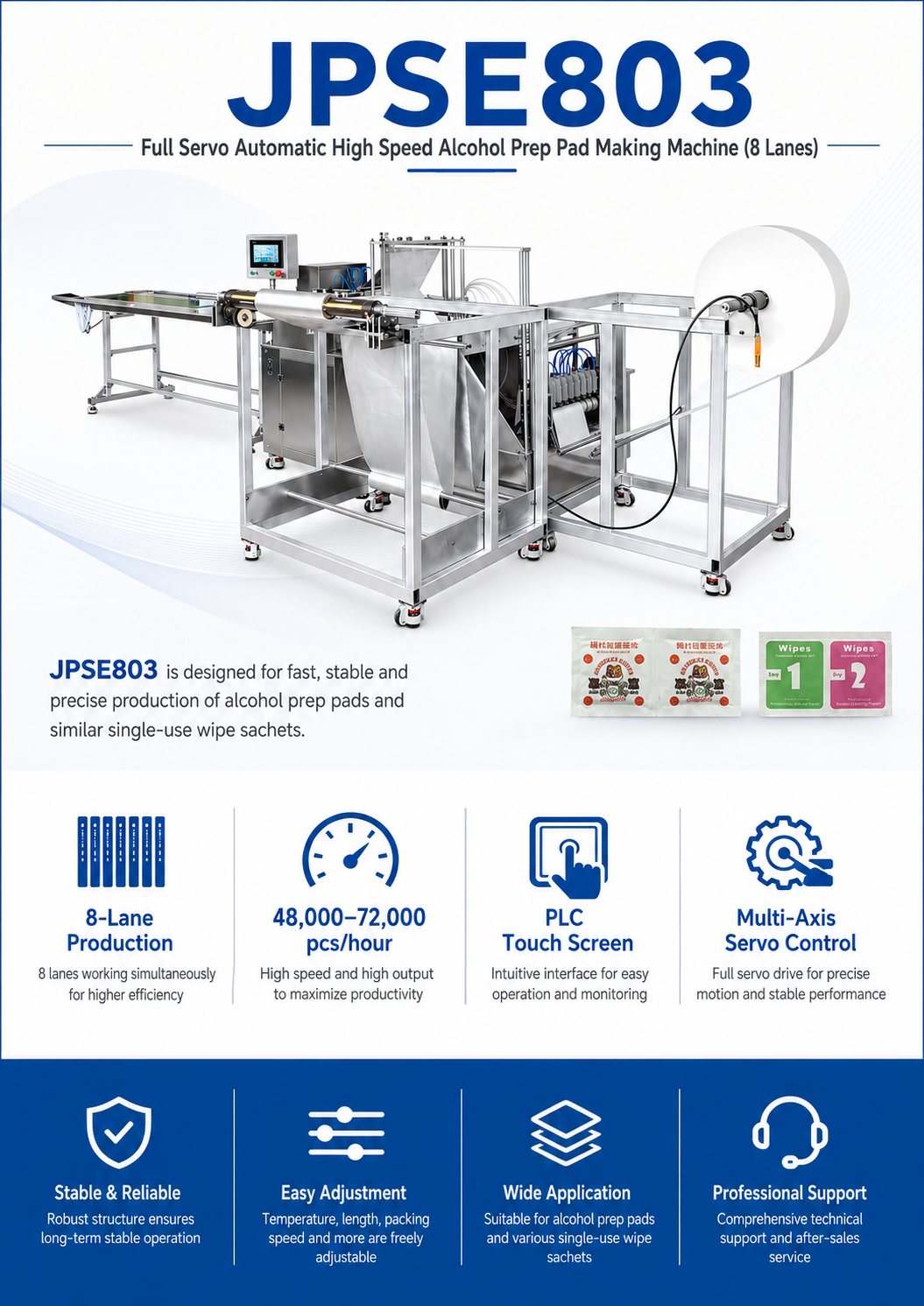

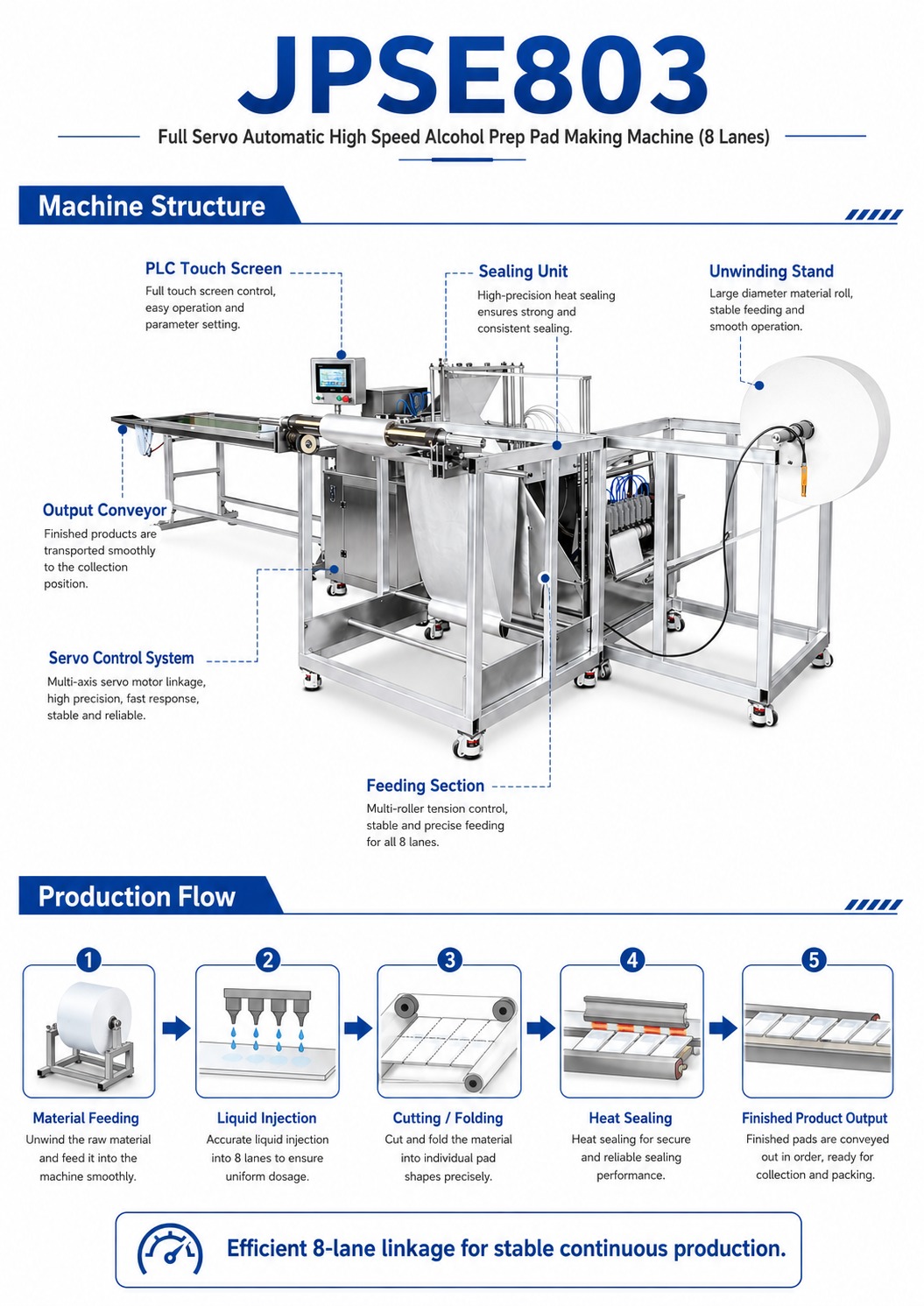

The JPSE803 is the 8-lane alcohol prep pad making machine, reaching 48,000–72,000 pcs/hour with a horizontal-type design and continuous roller sealing. Full touch-screen + PLC control with multi-axis servo-motor linkage keeps operation safe and stable, while heat-seal temperature, cotton-sheet length, packing speed, packet size, and liquid-injection volume are all freely adjustable.
MOQNegotiable
Lead Time15-30 days
CertificationCE / ISO 13485 / FDA
OEM / ODMAvailable
PaymentT/T, L/C
Loading PortShanghai, China
Factory Direct
Manufacturer pricing
OEM / ODM
Custom branding
Certified
CE / ISO / FDA
Global Logistics
100+ countries
After-Sales
Parts & support

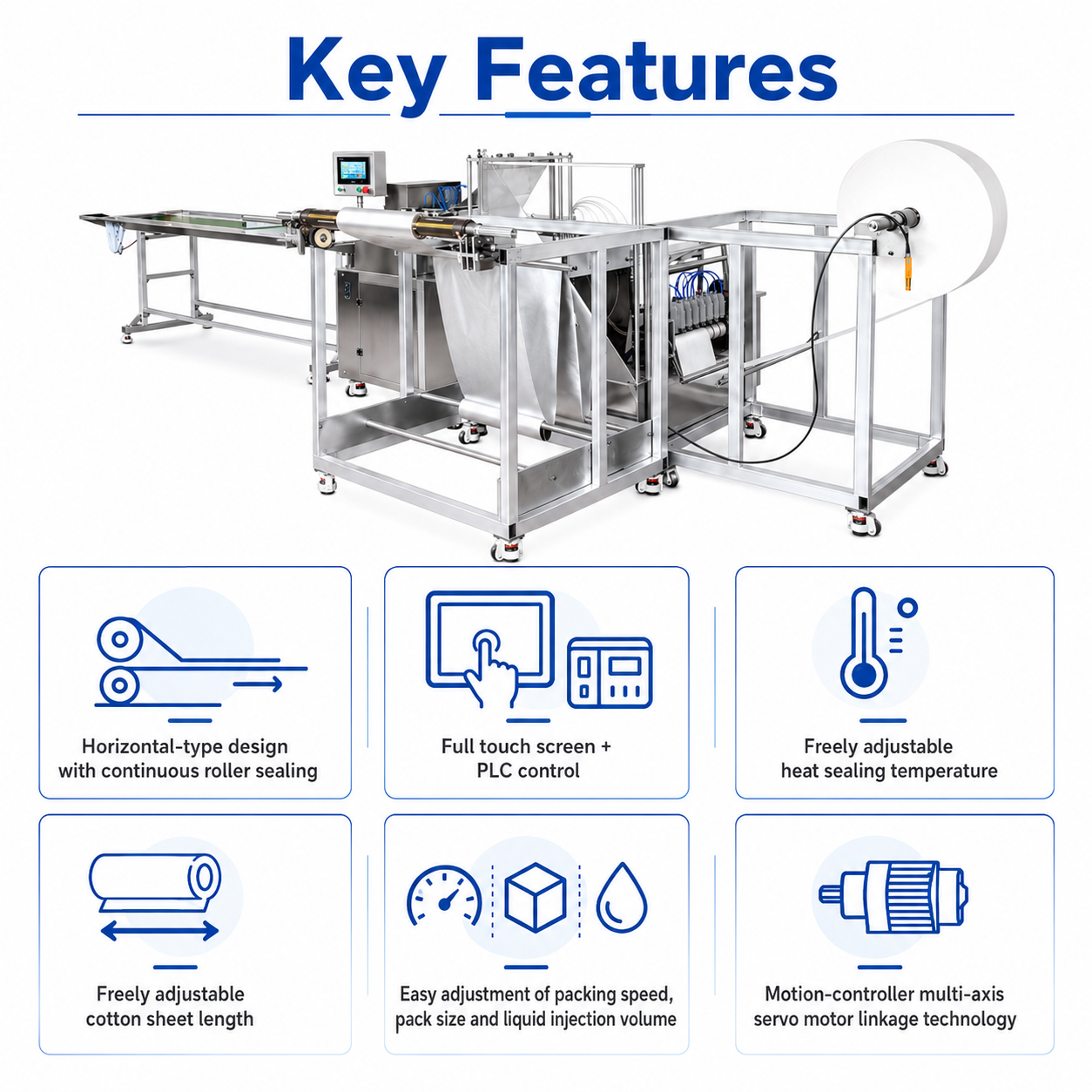

Key Highlights
- 8 lanes — 48,000–72,000 pcs/hour.
- Continuous roller sealing — Horizontal-type high-speed design.
- Full servo — 6 servo motors, touch-screen + PLC linkage.
- Fully adjustable — Temperature, length, speed, packet, liquid volume.

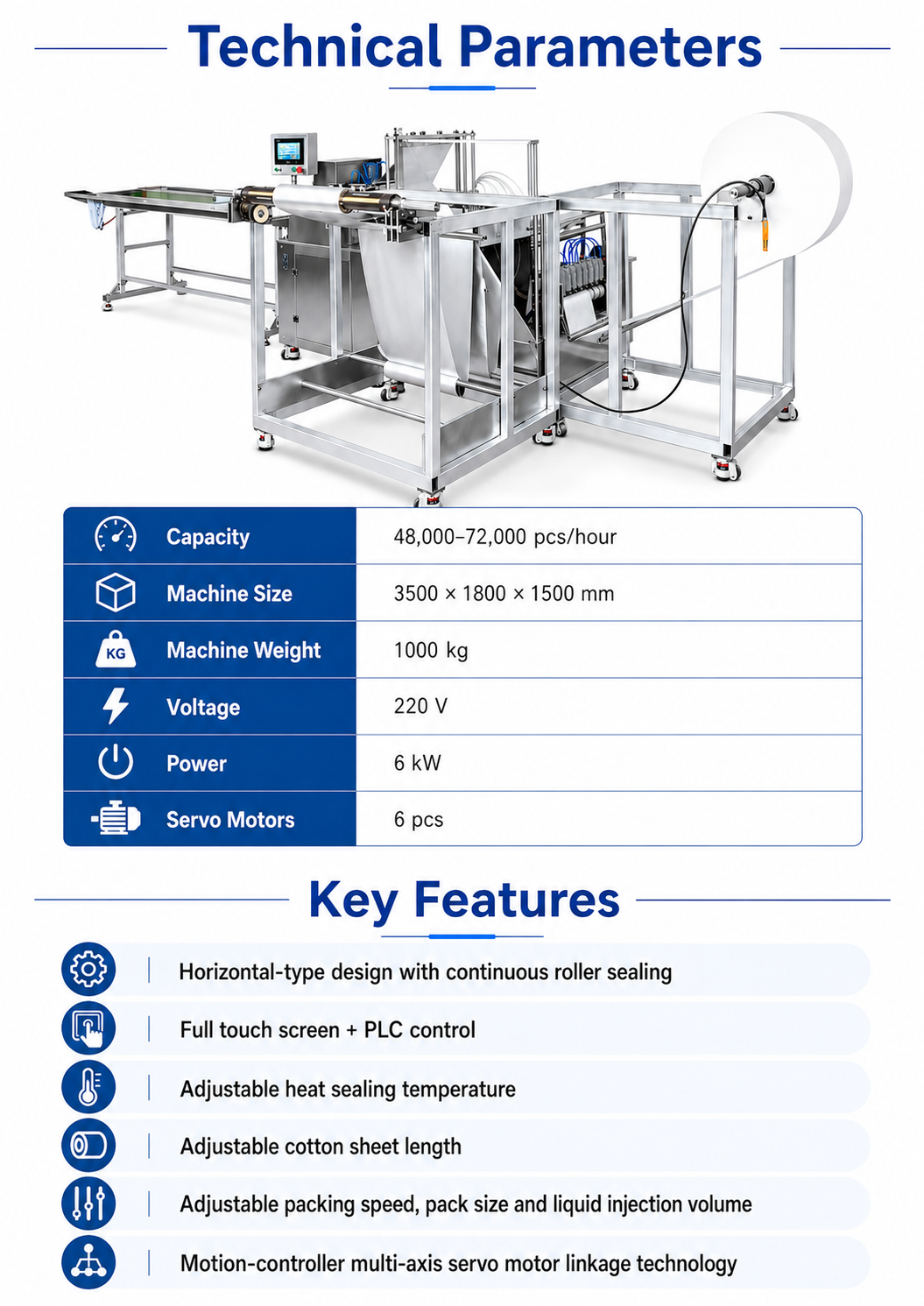

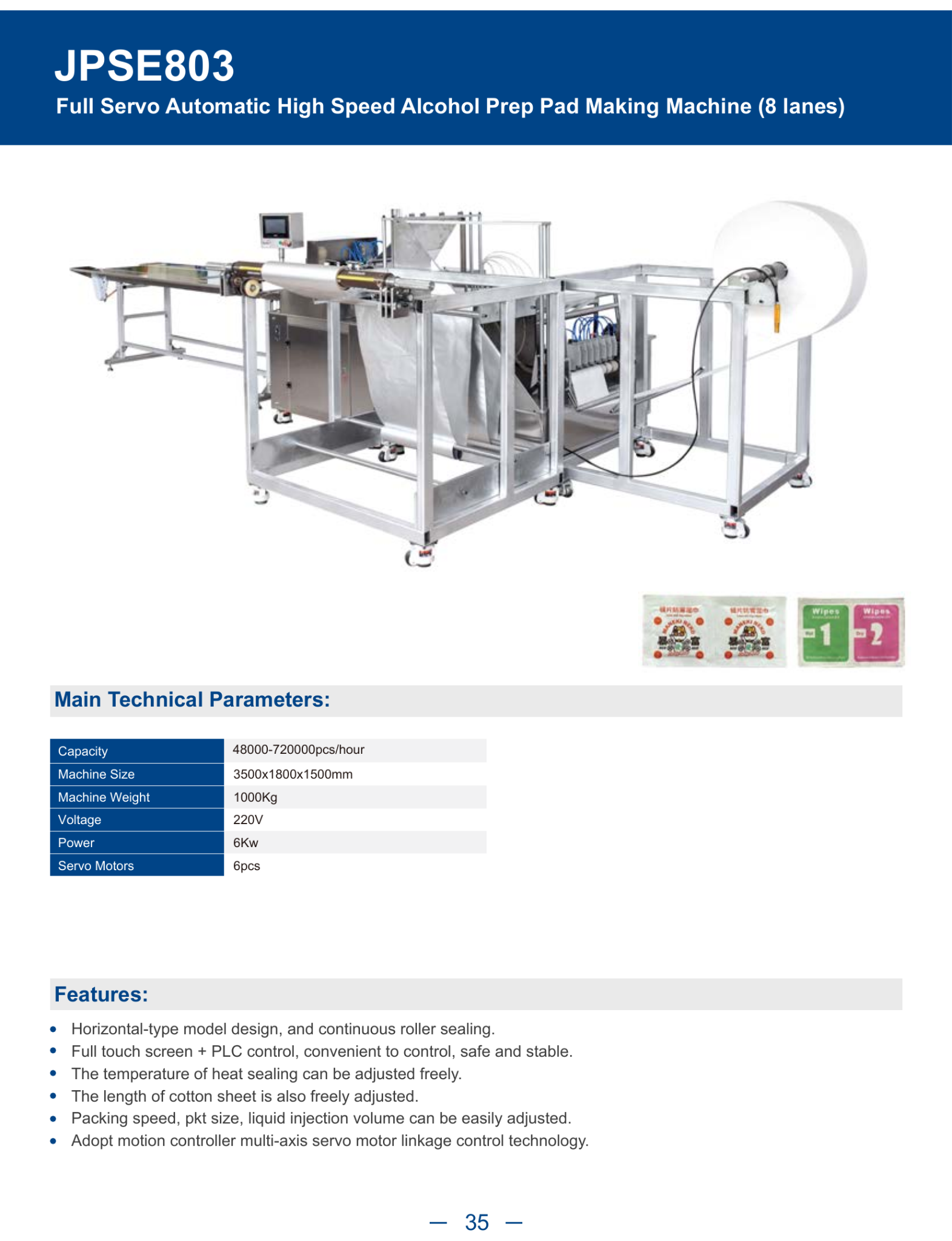

Standard Specifications
| Item | Specification |
|---|---|
| Code | JPSE803 |
| Capacity | 48,000–72,000 pcs/hour |
| Machine size | 3500 × 1800 × 1500 mm |
| Machine weight | 1000 kg |
| Voltage | 220 V |
| Power | 6 kW |
| Servo motors | 6 pcs |

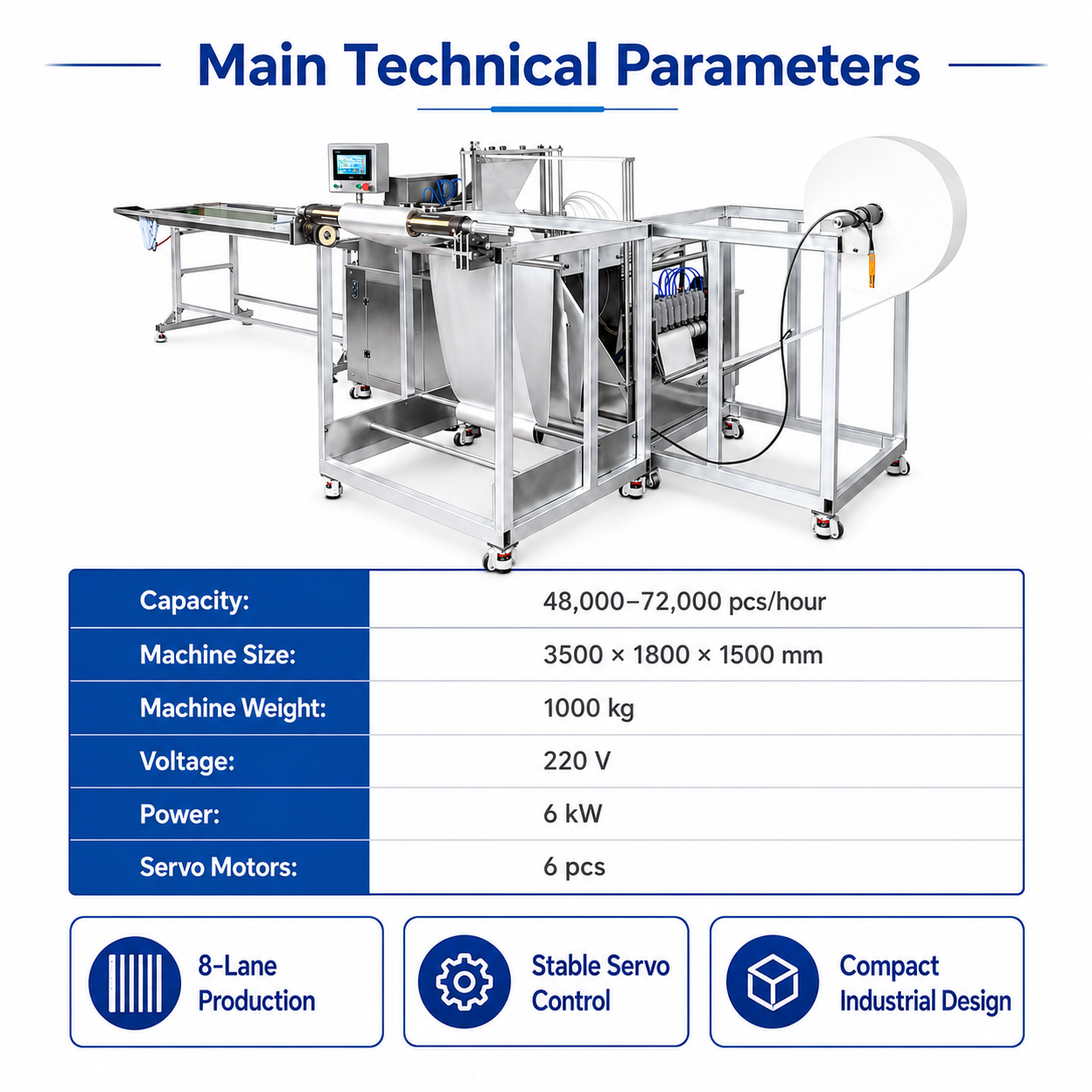

Technical Parameters
| Parameter | Specification |
|---|---|
| Type | Alcohol prep pad making machine (8 lanes) |
| Capacity | 48,000–72,000 pcs/h |
| Power | 6 kW |
Model: JPSE803 · Full servo automatic high speed alcohol prep pad making machine (8 lanes).
Product Details
Get a Quote for JPSE803_Full-Servo-Automatic-High-Speed-Alcohol-Prep-Pad-Making-Machine-8-lanes
Share your target quantity and destination — our B2B team replies within one business day with pricing, lead time and OEM options.
